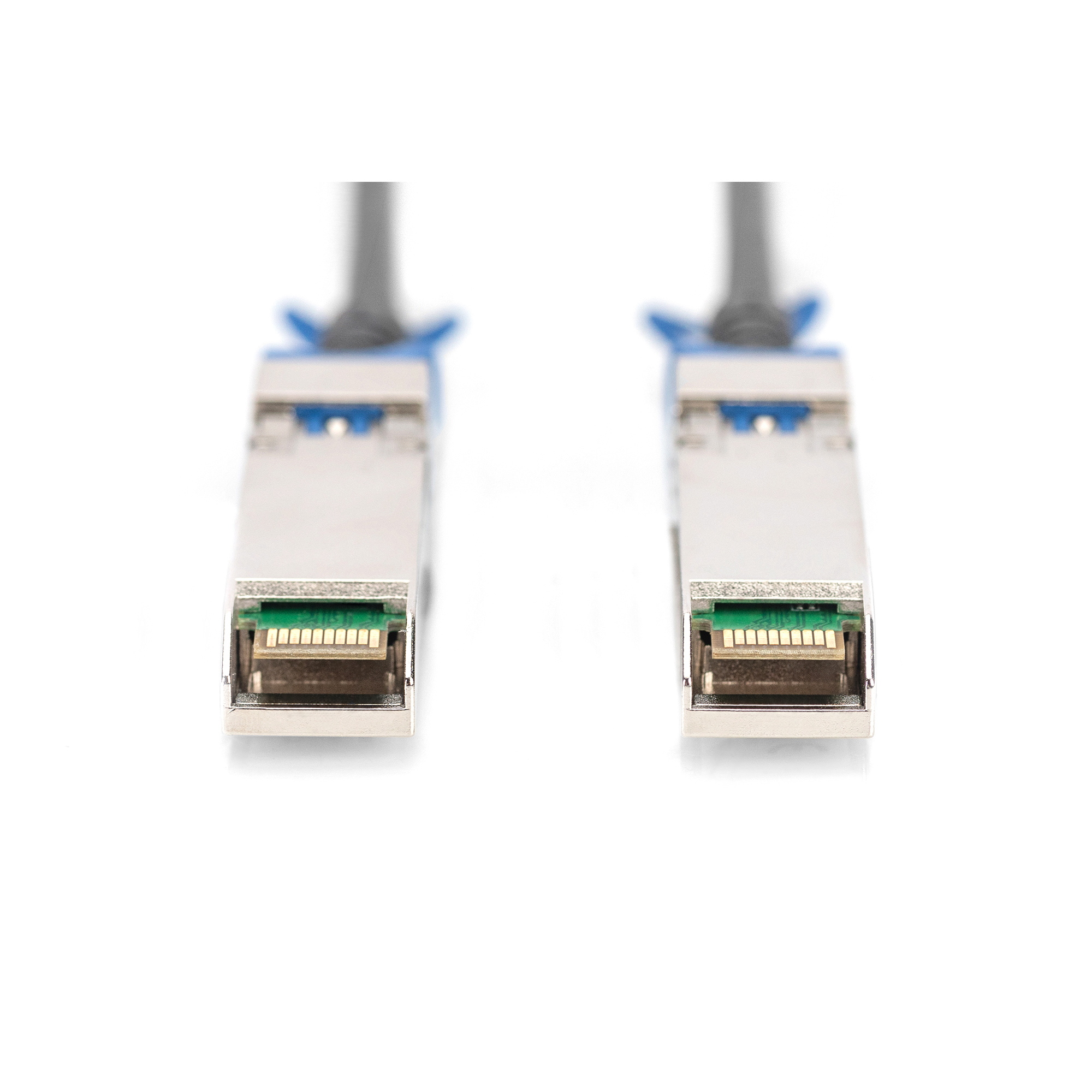

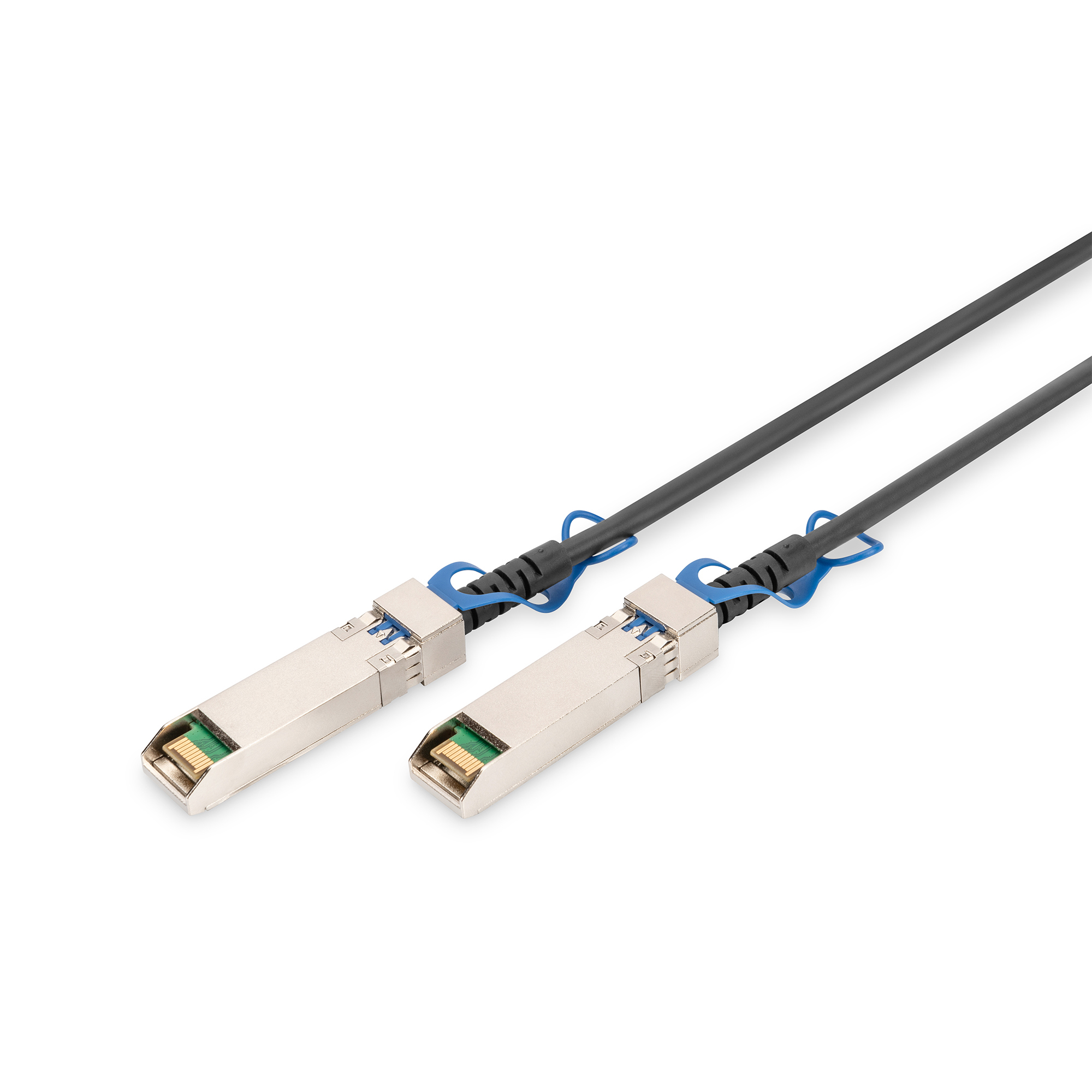

DIGITUS SFP28 25G 3m DAC Cable
Product number: DN-81243
EAN: 4016032478805
DAC Cable SFP28 3 M DAC Cable 25 G 3m

The SFP28 25G cable is suitable for connections between two SFP28 ports in 25G network components

3 m maximum distance
AWG 30 Twinax Cable
data rates of up to 25.88 Gbps supported
Hot-plug capable SFP 20 PIN connection
Temperature range: 0 to 70°C
Improved pluggable form factor (IPF)
Power: +3.3 V supply voltage
Compatible with the SFF-8432 specifications

DESCRIPTION
25G SFP28 DAC Twinax cables are a powerful, energy-saving solution for 25G Ethernet applications, switches, high-performance computer, data acquisition systems and telecommunications systems. It consists of a shielded Twinax copper cable with pluggable connections on both ends. Passive DAC cables have no electrical components in the cable and are suitable for short transmission distances.

TECHNICAL DETAILS
Transmission channels: RX and TX
Connections: SFP28
data rates of up to 25.88 Gbps supported
Temperature range: 0 to 70°C
Storage temperature range: -40 to 85°C
Power: +3.3 V supply voltage
Power consumption: 0.5 W
Compatible with MSA SFP28
Electrical interface: 20-pole connector plug
Management interface: Serial, I²C
The connection is compatible with the SFF-8432 specification
Compatible with the following manufacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL
