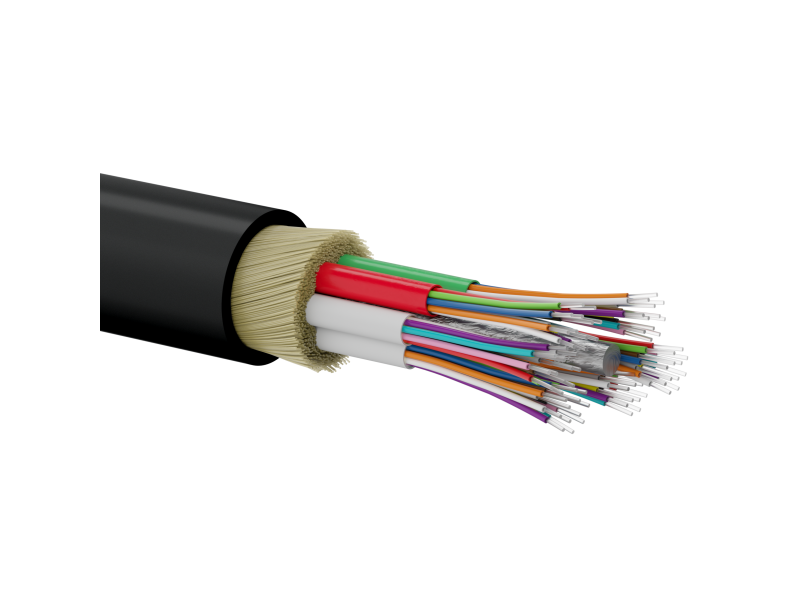

ALANTEC (SM - Single Mode) 9/125 μm OS2 single-mode cables are characterized by high transmission parameters and low dispersion phenomenon and thus very low signal loss. They are used in the transmission of signals over long distances: wide area telecommunications networks, backbone, CATV, access, campus, WAN, FTTx.Depending on the country, the design corresponds to the designations:Z-XOTktsdDA-DQ(ZN)BHThe center of the cable is a central strength element in the form of a plastic core surrounded by loose tubes, which contain the optical fibers. The interior of the tubes is filled with hydrophobic gel, which provides moisture insulation for the fibers. The entire medium remains surrounded and protected by plastic and aramid fibers, providing a safe anti-tumor barrier. The green tube is a directional tube.For use in cable ducts or directly in the ground, in places not exposed to direct mechanical damage.Strength elements - aramid fiber laggingOuter sheath - PE polyethylene resistant to moistureand UV radiation, black color, information print in white, length counter every 1m CABLE SECTIONTECHNICAL DATANumber of fibers72Fiber typeG.652.DOuter diameter of tube [mm]1.8Number of elements in cable [tube (full / empty)]6 (6/0)Number of fibers in the tube [tube x fibers]6x12Fiber coding1 red, 2 blue, 3 white, 4 green, 5 purple, 6 orange, 7 gray, 8 yellow, 9 brown, 10 pink, 11 black, 12 marineTube coding1 red, 2 blue, 3 white, 4 green, 5 purple, 6 orange, 7 gray, 8 yellow, 9 brown, 10 pink, 11 black, 12 marineCable outer diameter [mm]9.7* (cable outer diameter tolerance +/- 10%)Cable weight [kg/km]70Max. pulling force [N] (installation)4000Max. drawing force [N] (operation)2000Min. bending radius [mm] (installation)120Min. bending radius [mm] (operation)180Storage temperaturefrom -40°C to +70°CInstallation temperaturefrom -30°C to +60°COperating temperaturefrom -40°C to +70°CColorblackEuroclassFca
