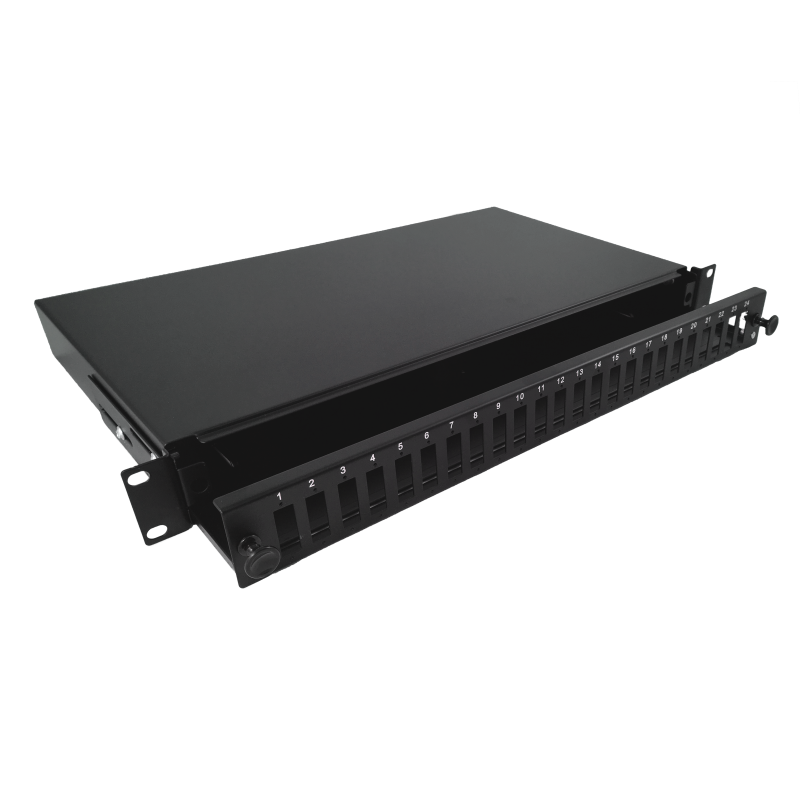

Fiber Optic (Splice Box) Patch Panel with pull out drawer, 24xSC duplex 19- 1U, rack mount 19- 1U, with accessories, black
Product description
Fiber Optic Patch Panel with removable tray for mounting in cabinets and 19- racks, for terminating fiber optic transmission links with pigtails.
1U height, for mounting in a 19- rack, 24 SC duplex ports
designed to perform main and intermediate fiber distribution points

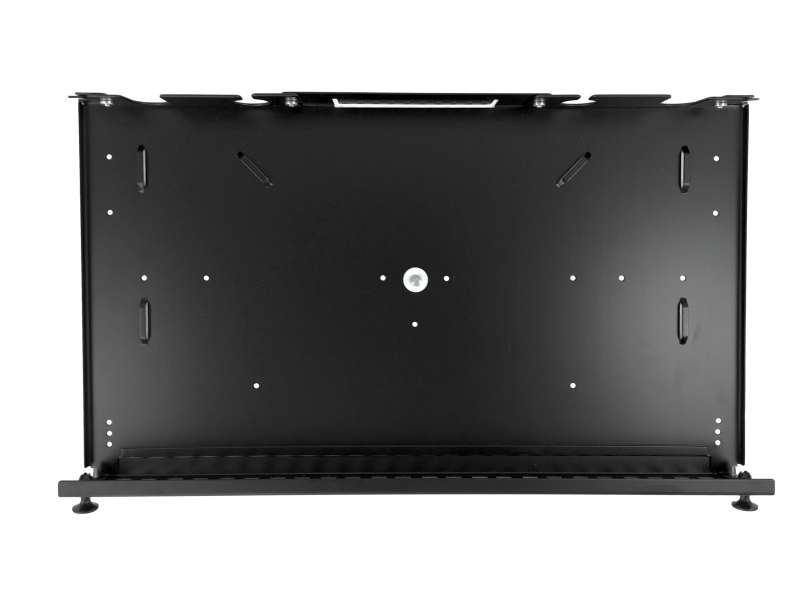

panel design in the form of a pull-out drawer enables convenient assembly of connectors and service

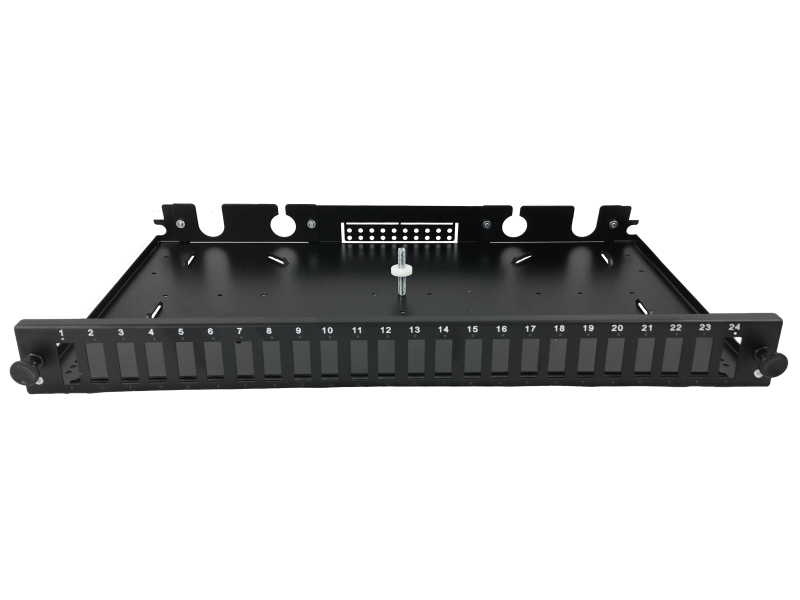

exchangeable front plate with numbering of ports for mounting adapters in versions: SC simplex, SC duplex, ST, FC, LC, E2000
color RAL 9005 (black)

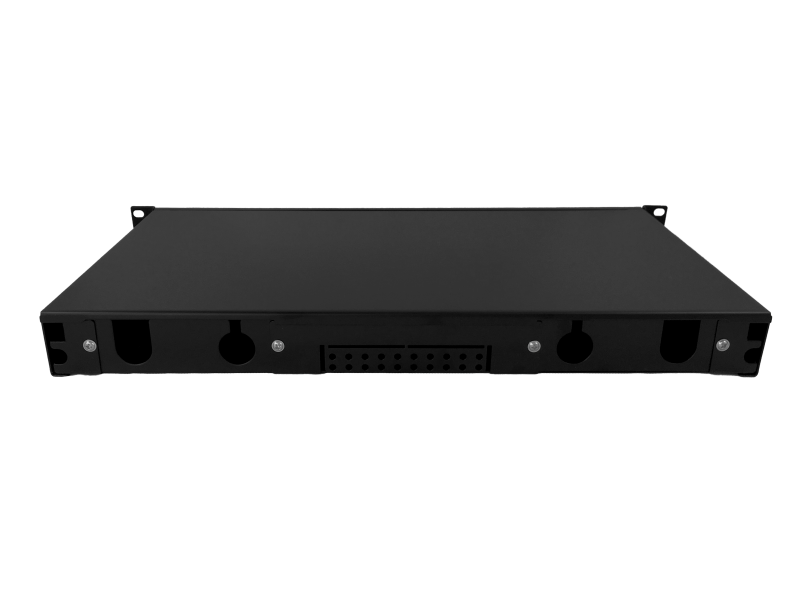

five holes in the back
adjustable mounting ears
special handles enable mounting of 4 optical fiber cassettes (possibility of removing the cassette retaining screw)
steel panel housing powder coated
the set includes fastening elements, cable glands and cable ties
splice cassette is not included
Technical Specifications
DIMENSIONS
Height 44 mm
Width 435 mm
Depth 245 mm
Tray 235 mm (tray depth after extension)
