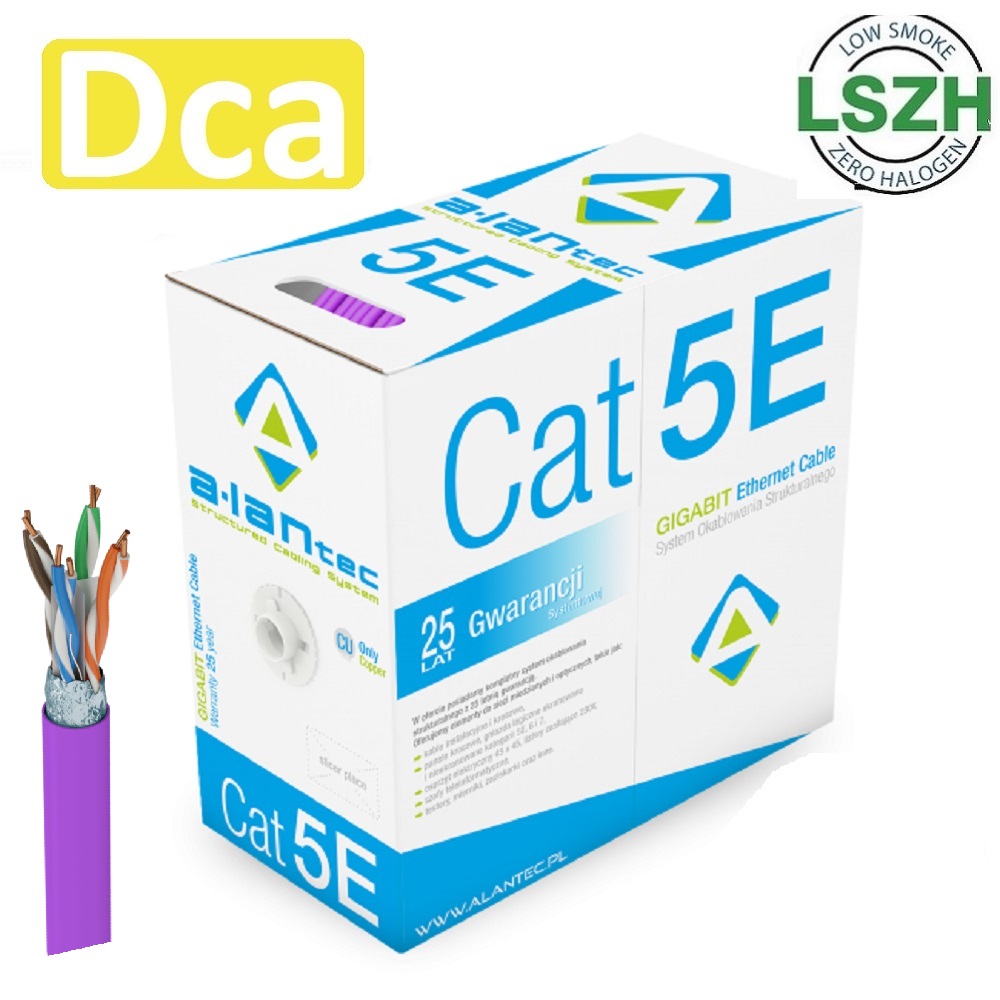

Product description
The cables are intended for internal horizontal and vertical installations in data communications networks. To be used in facilities subject to regulations on the reaction of building products to fire.
Sheath color - violet.
Technical Specifications
CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 5e
Class D (100MHz standard) with extended characteristics up to 250 MHz / 1 Gb/s
AWG 4x2x24AWG cross section
Conductors single stranded copper, diameter 0.51 mm (24AWG)
Insulation polyethylene
Fire classification CPR (Euroclass) Dca

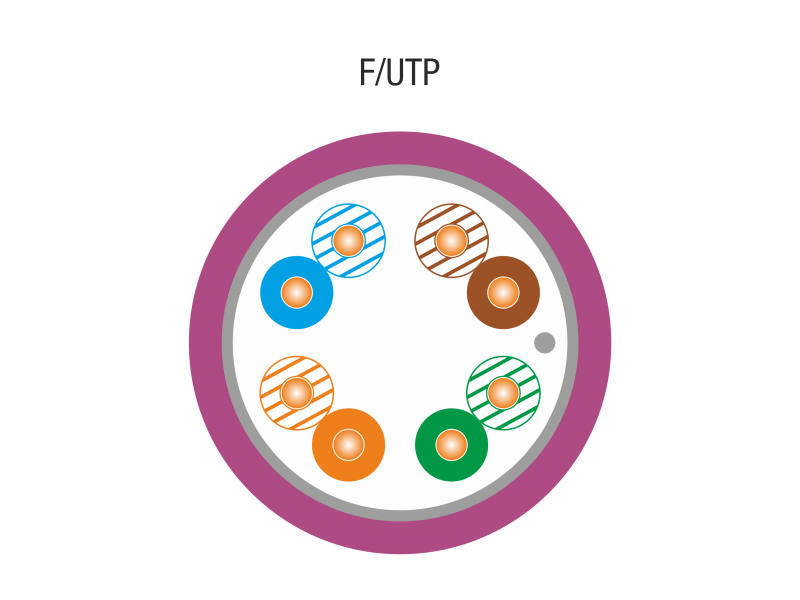

Centre 4 twisted pairs, wrapped with polyester film
Screen Polyester foil covered with aluminum layer laid with metal layer inside, under the screen there is grounding wire made of tin-plated copper wire with min. 0,4 mm diameter
Coating violet, halogen-free, flame retardant, low smoke and corrosive gas emission (LSOH/FRNC) material
PoE 802.3 af
Color Violet
ELECTRICAL PROPERTIES AT 20ºC
DC resistance ≤ 95 Ω /km
Variable resistance ≤ 2%.
Insulation resistance (500V) ≥ 5000 MΩ *km
Capacitive reactive resistance at 800 Hz nom. 48 nF/km
Variable reactive capacitive resistance ≤ 1500 pF/km
Characteristic apparent resistance (1-100MHz) (100 ± 15) Ω
Nominal propagation velocity (NVP) 69%
Delayed propagation Nominally ≤ 535 ns/100m
Delay angle Nominally ≤ 20 ns/100m
DC system tester, 1 min. (core) 1000 V
MECHANICAL PROPERTIES
Bending radius 4 x outer diameter
Max. drawing force 80 N
Temperature range during use -30°C to + 50°C
Temperature range during installation 0°C to + 50°C
Outer diameter 6,3 mm
Weight kg/km 44kg

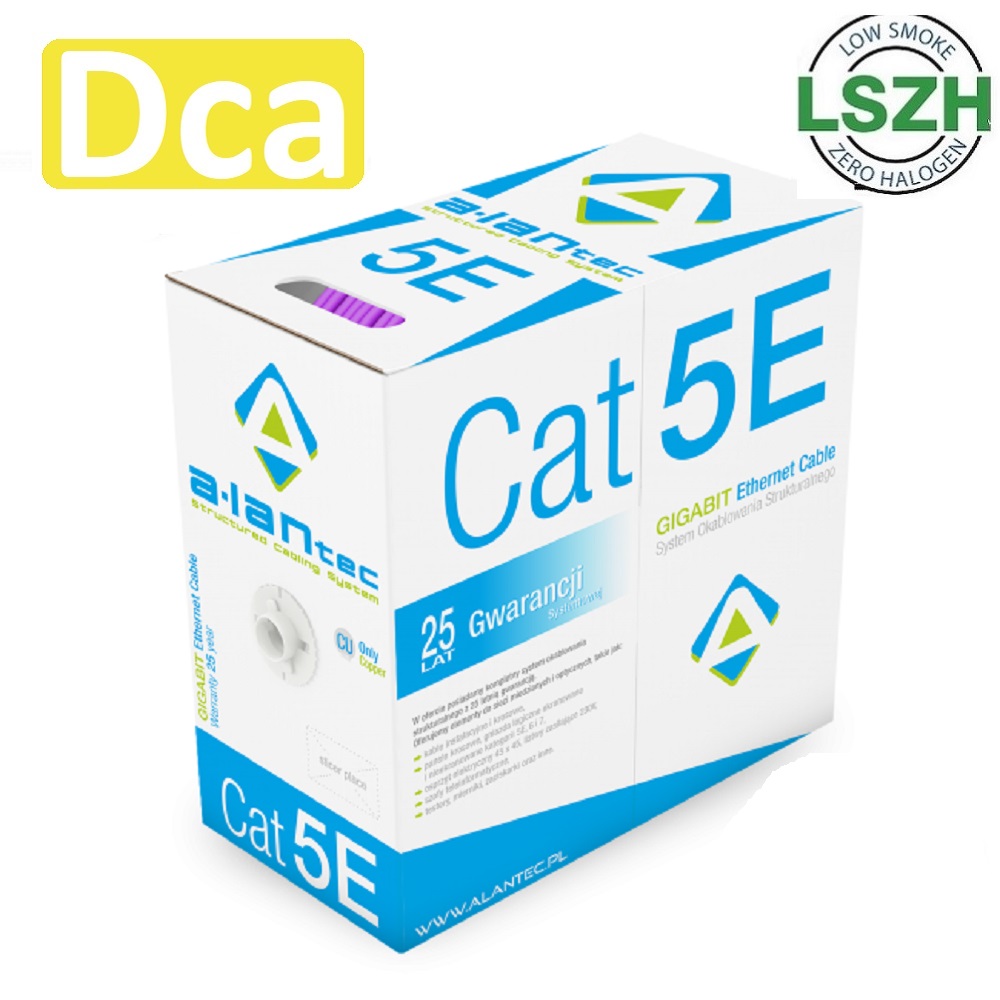

Packing carton (305m)
