Information
Part no.: KIU6LSOH500
Manufacturers/Brands: ALANTEC
EAN code: 5901738551381
Unit of measure: piece
The availability of the goods is visible only for logged in users
Gwarancja: Systemic 25 years
Pakowanie: Szpula 500m
Additional variants:
Only logged in users can buy
You have an account and you want to log in Click here
You dont have an account yet? to set them up Click here
Additional informationprint page
Product description
Category 6 U/UTP Cables are manufactured, tested and verified to the ISO/IEC 11801 2nd Edition, EN 50173:2007 and ANSI/TIA/EIA-568-B.2 standards for enhanced performance Category 6 cables.
All parameters have been verified by INTERTEK.

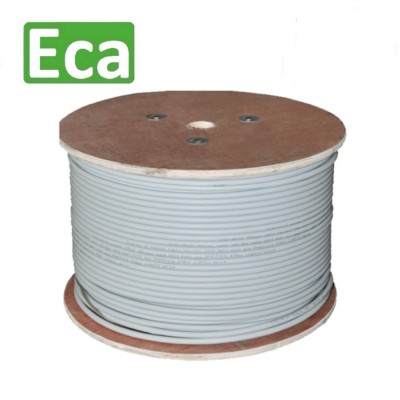

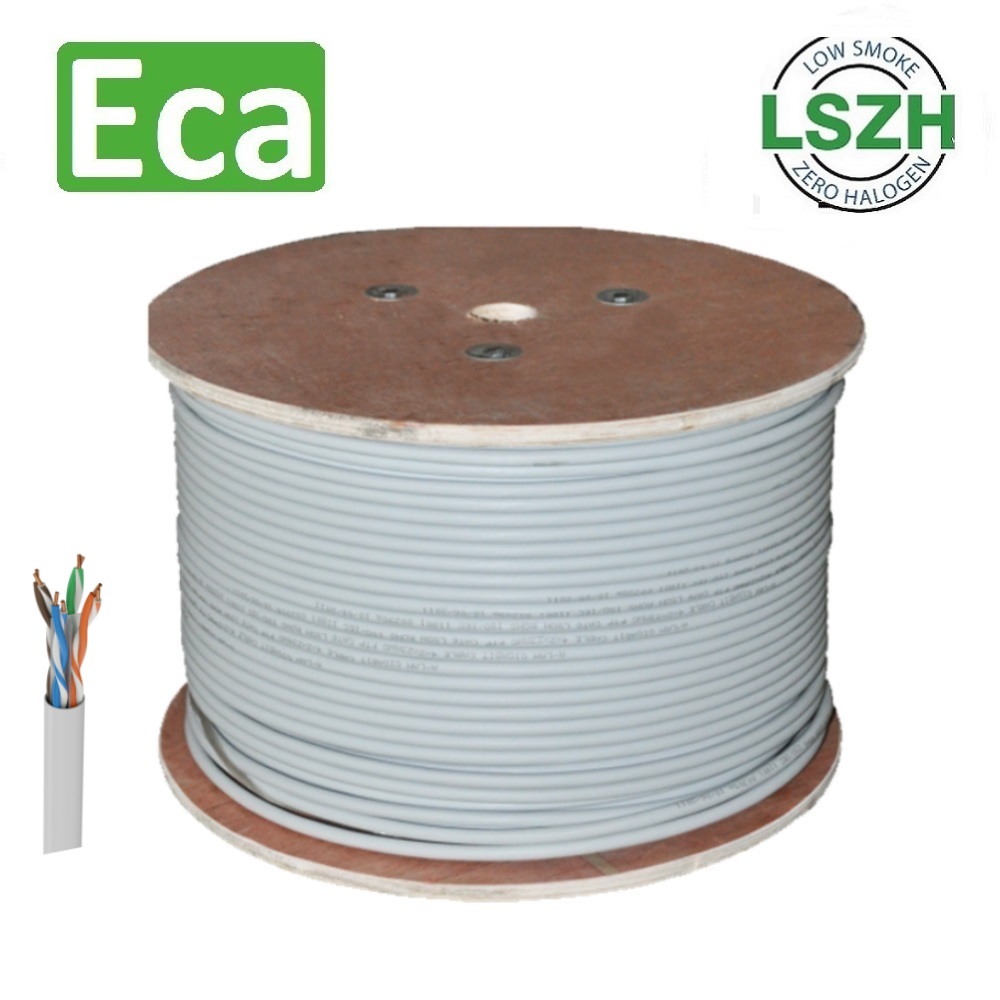

Each cable consists of 8 colour coded polyethelene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant LSOH FRNC or PVC material. The printing detail on the sheath, includes the cables part number, specification details and a unique 500 metre marking remaining on the spool. A choice of jacket colour enables departmental or application identification where necessary.
Euroclass » Eca
Euroclass » Eca
Flammable insulated cable meeting the criteria of Euroclass Eca in accordance with EN 50575:2014 + A1:2016 and Regulation (EU) No. 305/2011 of the European Parliament and of the Council of March 9, 2011. (Construction Products Regulation or CPR)
The cables are tested in accordance with EN 60332-1-2.
Eca-class cables find their application in single-family dwellings, outbuildings, garages and structures without specific safety requirements.
Technical Specifications
CONSTRUCTION AND ELECTRICAL
Category 6
Class E (250MHz standard) with extended characteristics up to 475 MHz / 1 Gb/s
Twisted element 4x2x24AWG
Conductor 100% Cu - bare copper
Insulation polyethylene
Fire euroclass Eca
Screen No
Jacket Halogen free, flame retardant material (LSOH/FRNC)
PoE 802.3 af
Color Light gray
ELECTRICAL PROPERTIES AT 20ºC
Conductor DC Resistance ≤ 93,8 Ω /km
Changing resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Mutual Capacitance at 800 Hz nom. 48 nF/km
Changing capacitance passive resistance ≤ 1500 pF/km
Characteristic impedance (1-100MHz) (100 ± 15) Ω
Nominal Velocity of Propagation (NVP) 69%
Delay spread Nominal ≤ 535 ns/100m
Angle spread Nominal ≤ 20 ns/100m
Tester installation DC, 1 min. 1000 V
MECHANICAL PROPERTIES
Bend Radius 4 x overall diameter
Max. pulling force 80 N
Temperature range - work -30°C do + 50°C
Temperature range - instalation 0°C do + 50°C
Outer diameter 5,9 mm
Weight / km 59 kg
Packing spool (500m)
