Product description

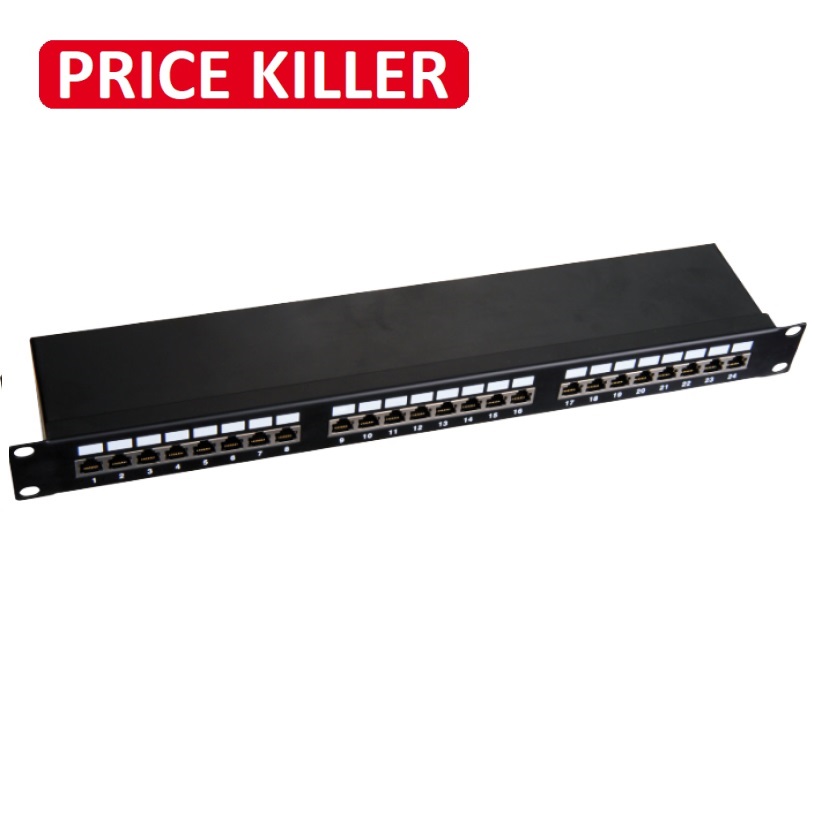

The basic, shielded (STP) element of channel of structured cabling system exposed to electromagnetic interference. Designed to perform major and indirect distribution points of fast telecommunications systems.

24x RJ45 ports.
port designations in the form of numbered fields
universal connector slot, compatible with the tool LSA sequence 568A/B.
equipped with a convenient rack mouting.
Technical Specifications
GENERAL
Width 19-
Height 1U
Category 6
Class E / 250 MHz / 1 Gb/s
Shielded yes
Number of ports 24 RJ45 ports with labels and descriptive fields
Rear cable support bar yes
HOUSING
Material cold-rolled steel sheet
Surface finish painted with powder paint
Colour black
SOCKET
Material self-extinguishing thermoplastic material, standard UL94VO
Durability - 750 cycles
Contact material phosphore bronze
Contact coating 1,25 μm gold on 2,5 μm nickel
Contact pressure force 100 g
Breaking strength 50N / 60s
SLOT CONNECTOR
Sequences 568A/B
Connector type LSA
Durability - 200 cycles
Contact material phosphore bronze
Cables accepted 22-26AWG
Material thermoplastic material
