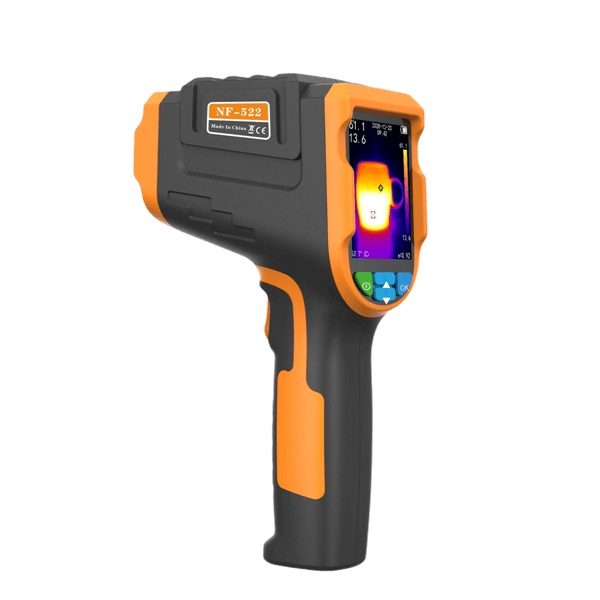

Model NF-522
Thermal imaging resolution 200x150
Angle of view 35°x 26°
Temperature Range -40°℃-330℃
Thermal sensitivity 65mK
lmage frame rate 9Hz
Color plate
white heat /Black heat Rainbow/1 Rainbow2/Purple/Orange/lron gray/ High temperature high contrast High and low temperature high contrast.
Accuracy Ambient temperaturel 25℃
Distance 0.3M
Emissivity 0.1-1.0 ( can be adjusted )
Spectral response 8-14um
Visible resolution 300,0o0 pixels (640x480)
Display mode lnfrared mode linfrared edge detection
modeldual light fusion mode
Focus Mode Fixed
Storage medium Built in 2G
General
parameters Language Chinese l English ( can be selected )
lmage saving format Bitmap ( BMP ) image
Display type 2.8 inch TFTLCD
Screen resolution 240x320
Automatic shutdown features 15seconds / 30 seconds/ 1 minute ( can be selected )
Temperature unit ℃ / °Fi K ( can be selected )
working temperature -10°℃-45°℃
Memory card 16GB MiniTF Card
Battery 3.7V 1 5000mAh
Drop test 2 meters, ( 6.5 inches )
Shutter interval 15 seconds / 30 seconds / 1 minute
Product size 60mm*120mm*210mm
