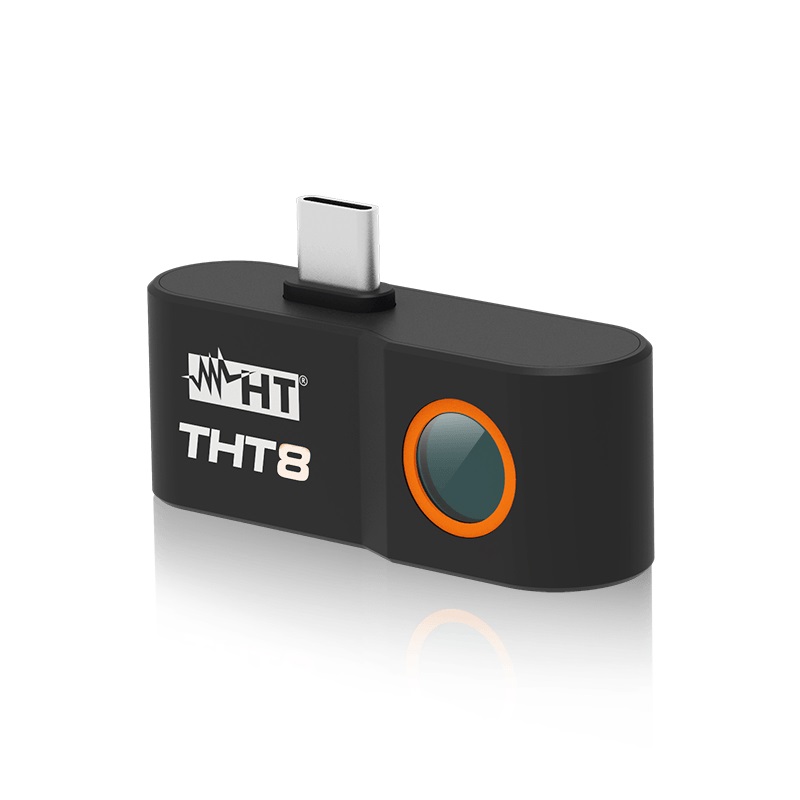

THT8 is the new ultra-compact and pocket-sized thermal camera equipped with a high resolution 120x90pxl IR sensor, a measuring range of -20°C ÷ 400°C and a field of view of 50°x 38°, which makes it suitable for common and frequent hydraulic, mechanical or electrical maintenance.
Thanks to its small size it is perfect to be connected directly to your smartphone, and to be used via the new HT Smart Camera application (available only for Android).

IR Resolution 120 x 90 pxl
Temperature range -20° ÷ 400°C
Image frequency 25Hz
Thermal sensitivity / NETD -0.05°C @ 30°C / 50mK
Field of view (FOV) 50° x 38°
Focal length f 1.13
Lens 2.3mm
IFOV 7.29mrad
Focus mode fixed focus
Digital zoom 1x ÷ 32x
Uncertainty about the measure ±3°C (±5.4°F) or±3% of reading
Measurement tools (in live mode) 5 spots, central spot, hot / cold spot, 2 areas, 4 lines
Area measurement information max, min, AVG
IR Video recording yes
Color Palettes iron, rainbow, hot white, hot black, medical, arctic, hot iron, fulgurite
Built in LED light smartphone flashlight
Internal memory storage smartphone memory
Communication modes USB type C
Display smartphone display
Size (LxWxH) (mm) 50 x 30 x 20mm
