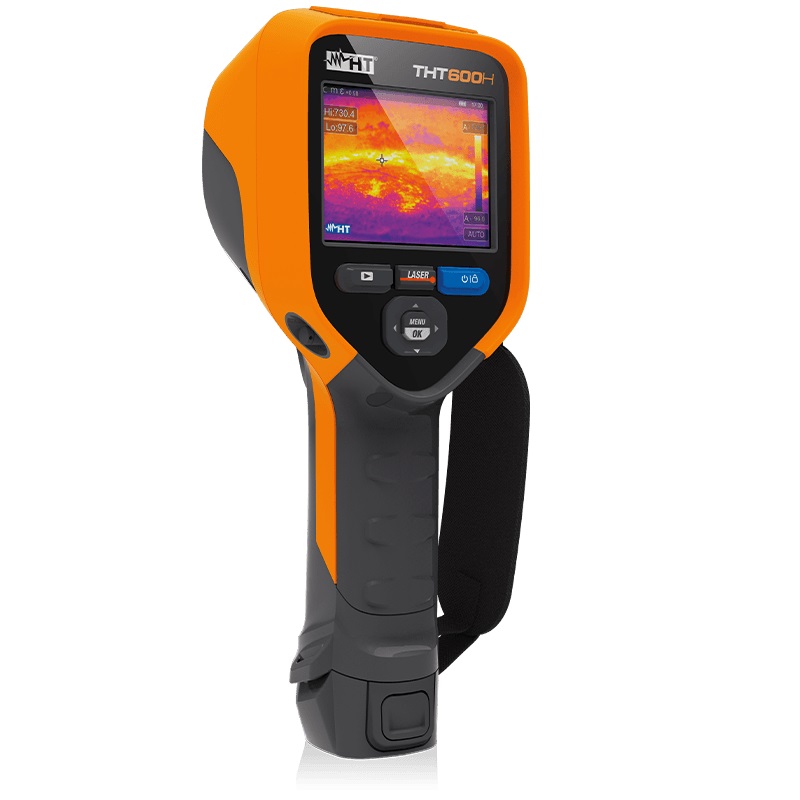

THT600H is the new professional thermal camera equipped with a high resolution 384x288pxl IR sensor and a specific measuring range for high temperatures -20°C ÷ 1200°C which makes it suitable for both industrial and manufacture monitoring. It features a 17.3°x 12.7° field of view, producing high resolution thermal images and videos, as well as enabling AutoFusion and Picture in Picture functions. It also has an ergonomic strap and an integrated laser distance meter, which allows you to measure the distance to the subject under analysis. The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display. Thanks to the Wi-Fi connection it is possible to download the thermograms on your mobile device and through the new and convenient HT Pro Camera application you can create PDF reports and share them quickly.
IR Resolution 384x288 pxl
Temperature range -20° ÷ 1200°C
Image frequency 50Hz
Thermal sensitivity / NETD -0.05°C @ 30°C / 50mK
Field of view (FOV) 17° x 12.7°
Focal length f 1.0
Lens 22mm
IFOV 0.77mrad
Focus mode manual focus
Picture in Picture function yes
AutoFusion image enhancement yes
Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
Digital zoom 1x ÷ 32x
Measurement tools (in live mode) none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
Area measurement information max, min, AVG
IR Video recording yes
Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
Color Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
Span modes Automatic / Manual / Histogram
Laser pointer yes
Laser distance meter yes
Built in LED light yes
Internal memory storage 3,4 GB
On-camera report building text notes, voice notes
Communication modes micro USB, Wi-fi, micro SD, micro HDMI
Display touch screen
Battery operation time 4 hours
Size (LxWxH) (mm) 240 x 101 x 110mm
