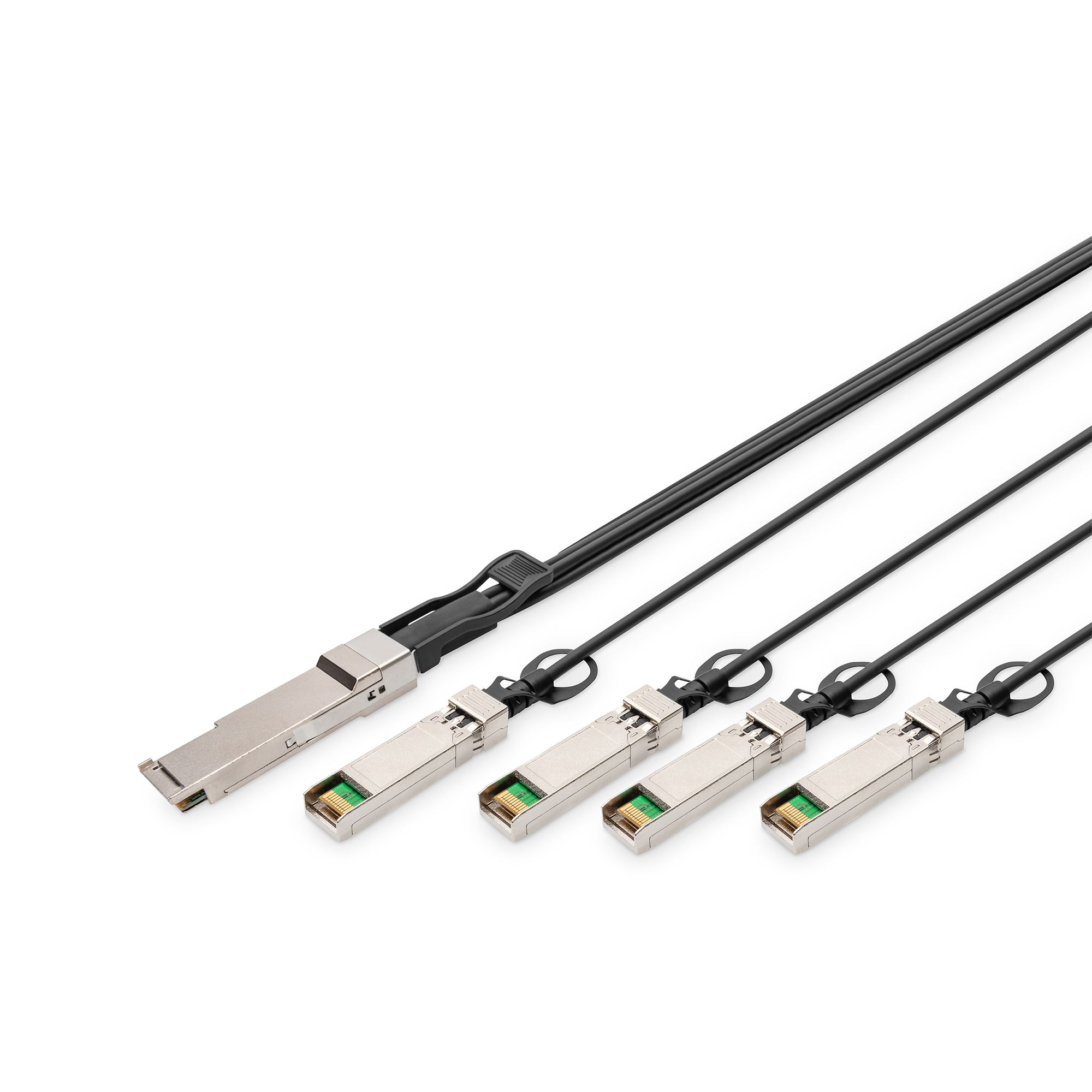

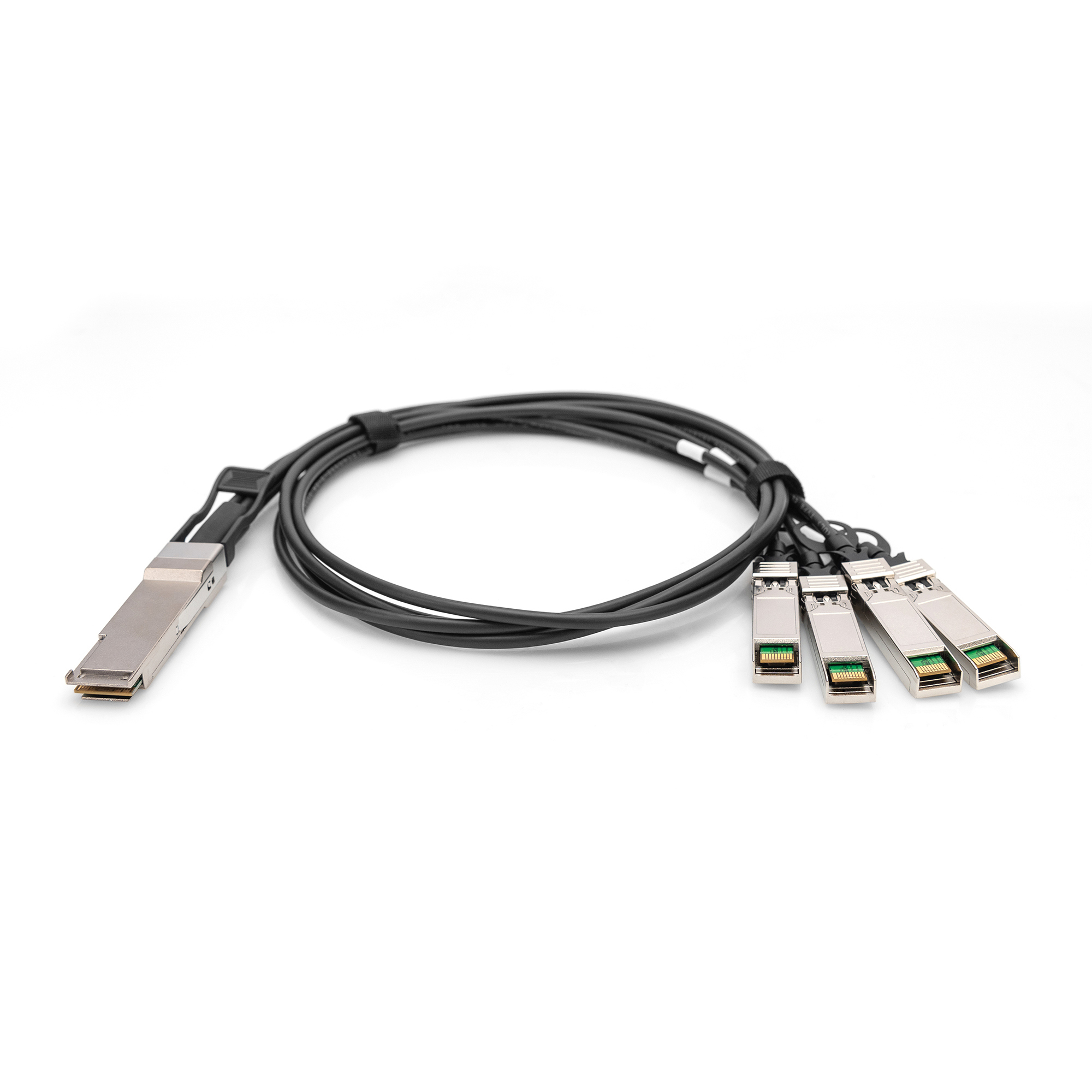

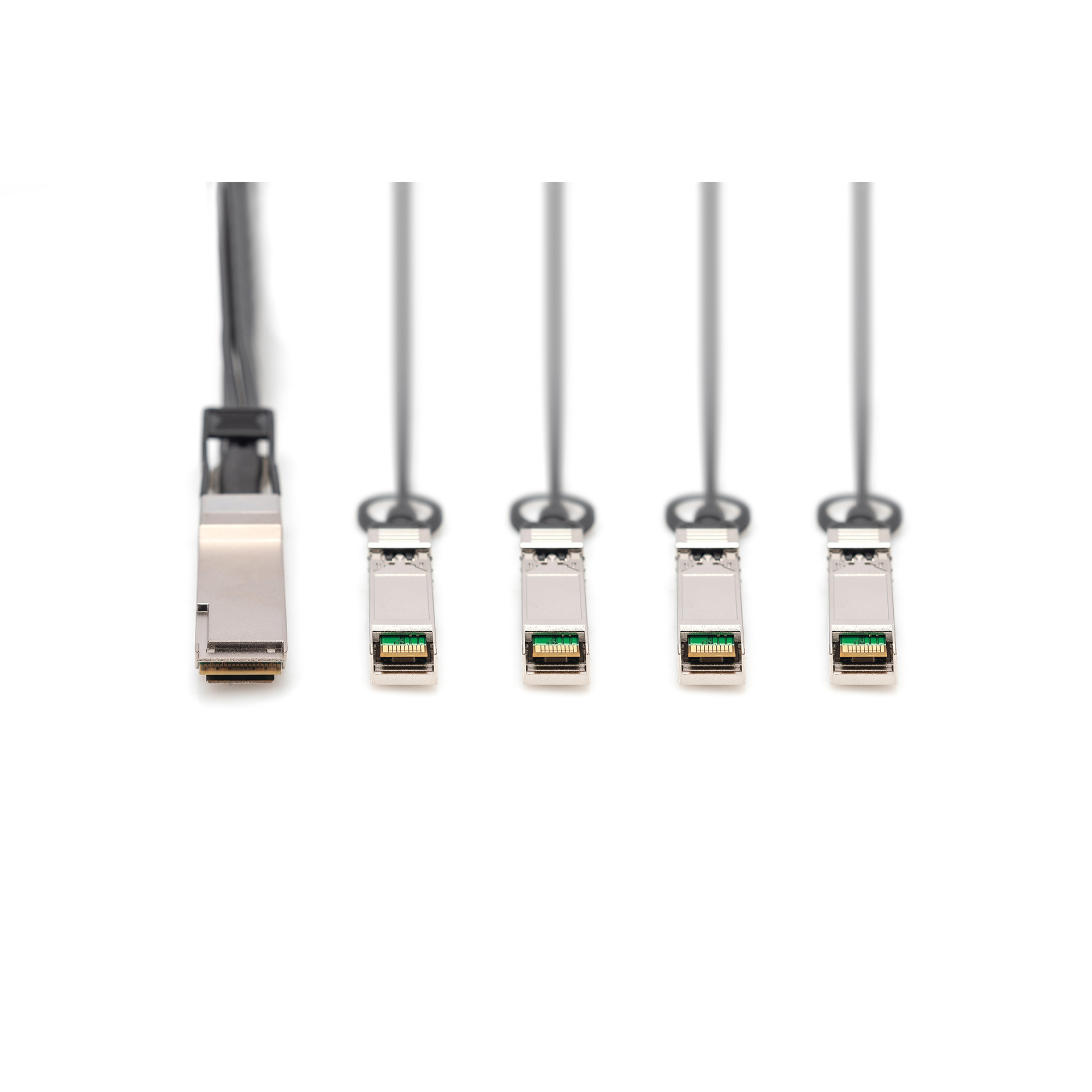

DIGITUS 40G QSFP+ to 4XSFP+ Direct Attach Cable 1m
Product number: DN-81321
EAN: 4016032484981
DAC Breakout cabel 1 m 1x 40G to 4x 10G 1x 40G to 4x 10 G

Up to 10. 3125Gbps data rate per channel, Up to 5m transmission, Operating temperature: 0℃~70℃, Single +3.3V power supply

Up to 10. 3125Gbps data rate per channel
Operating temperature: 0℃~70℃
Single +3.3V power supply
40G Ethernet
Compliant with SFF- 8436

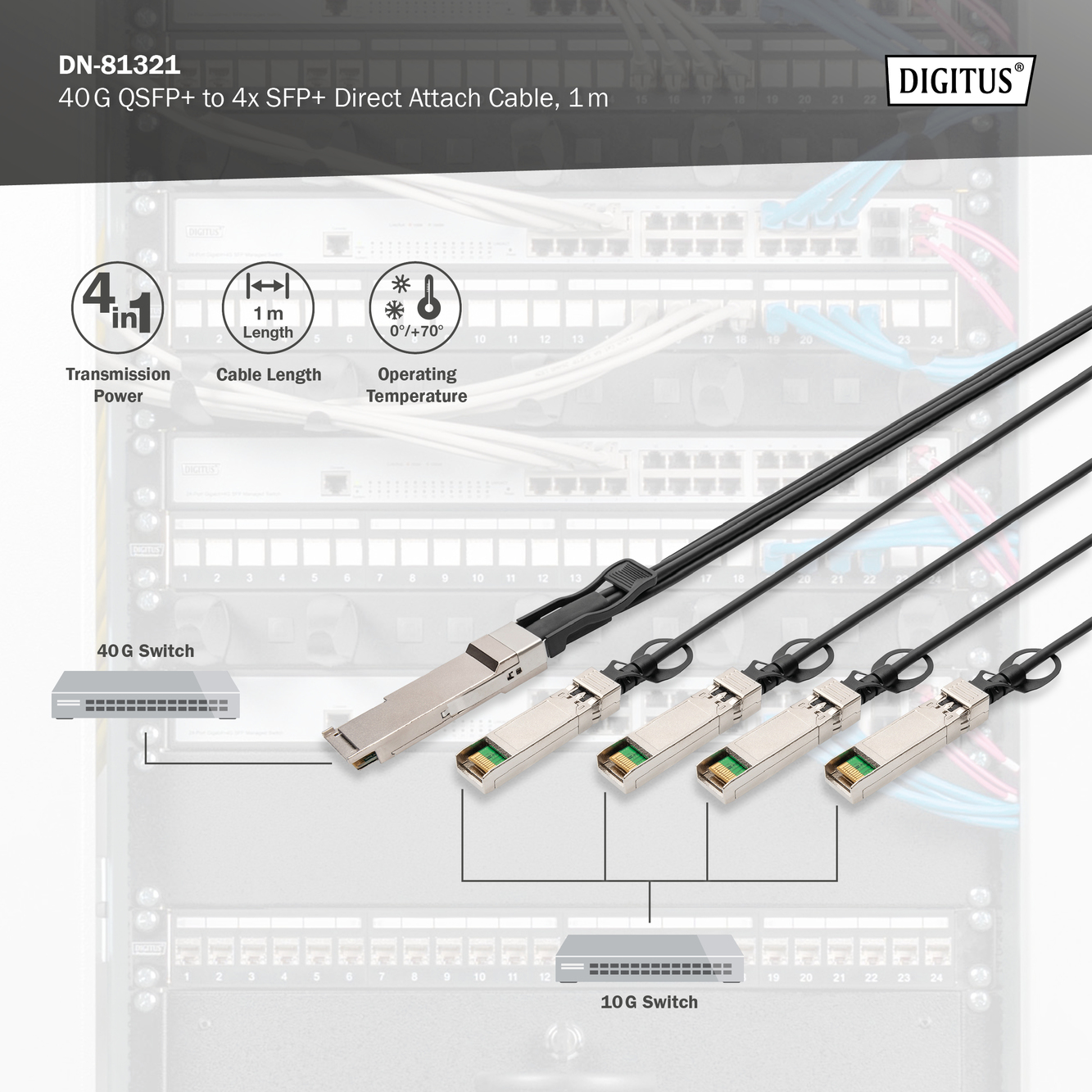

Supports 40G to 4x 10G Ethernet interoperability
Cable length: 1m
Cable length: 1m

DESCRIPTION
The DN- 81321 Breakout DAC cables QSFP+ to 4xSFP+ is optimized to be used in Datacenter. They meet the ever increasing demand for higher channel density with high-level signal integrity in high performance computing, core switches and NAS Systems.

TECHNICAL DETAILS
Channel Data Rate 10.3125 Gbps
Operating Temperature 0 to + 70°C
Storage Temperature -40 to + 85°C
Supply Voltage 3.3 V nominal

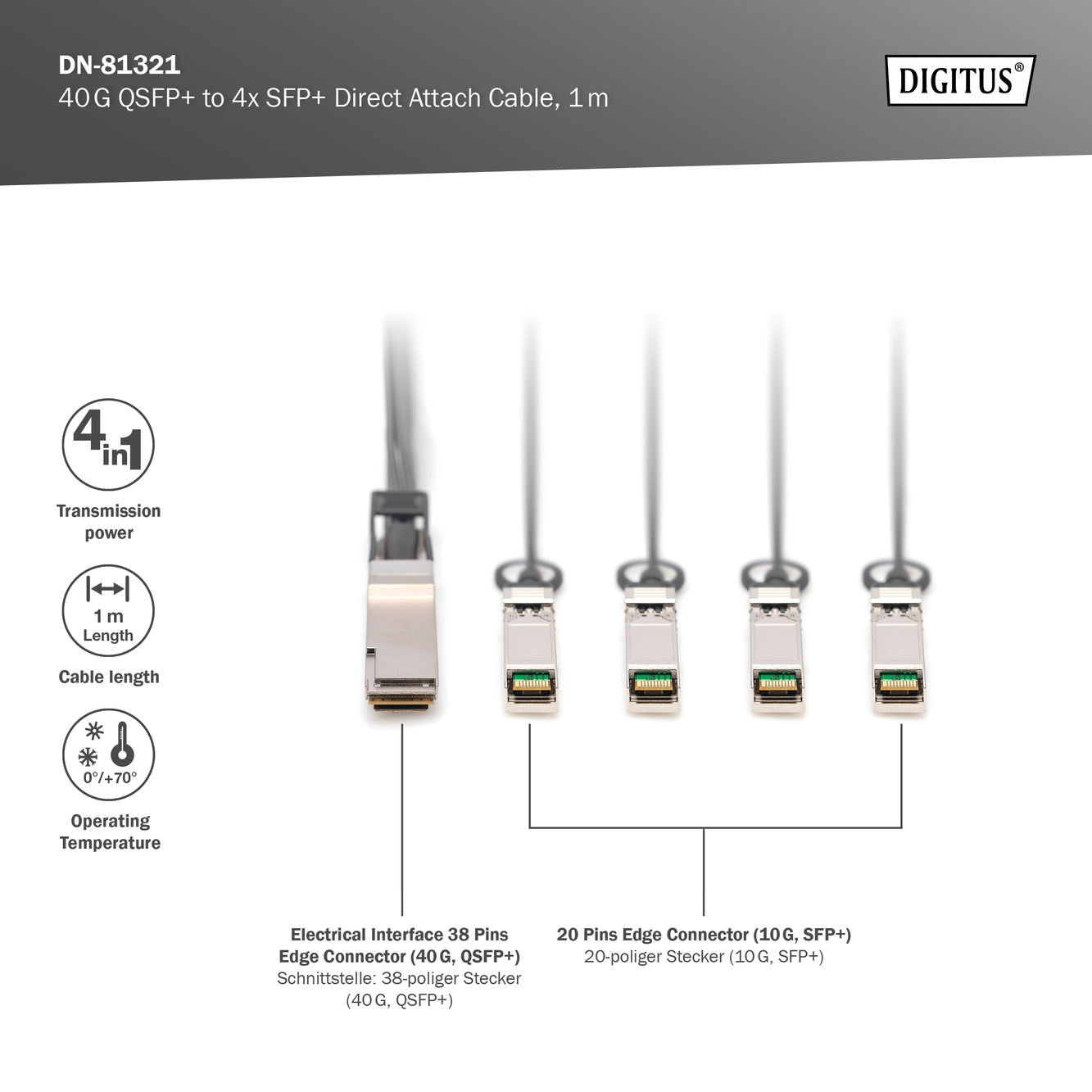

Electrical Interface 38 pins edge connector(QSFP+)
20 pins edge connector(SFP+)
Management Interface Serial, I2C
Cable length: 1m
Compatible with the following manufacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL
