Supports 4K2K/60Hz (HDR, 4:4:4)
Video bandwidth: 18 Gbps
Maximum transmission distance (UHD 4K2K): 70 m
Supports CAT 6/7/8 cables
HDCP 2.2 / 1.4
HDMI 2.0

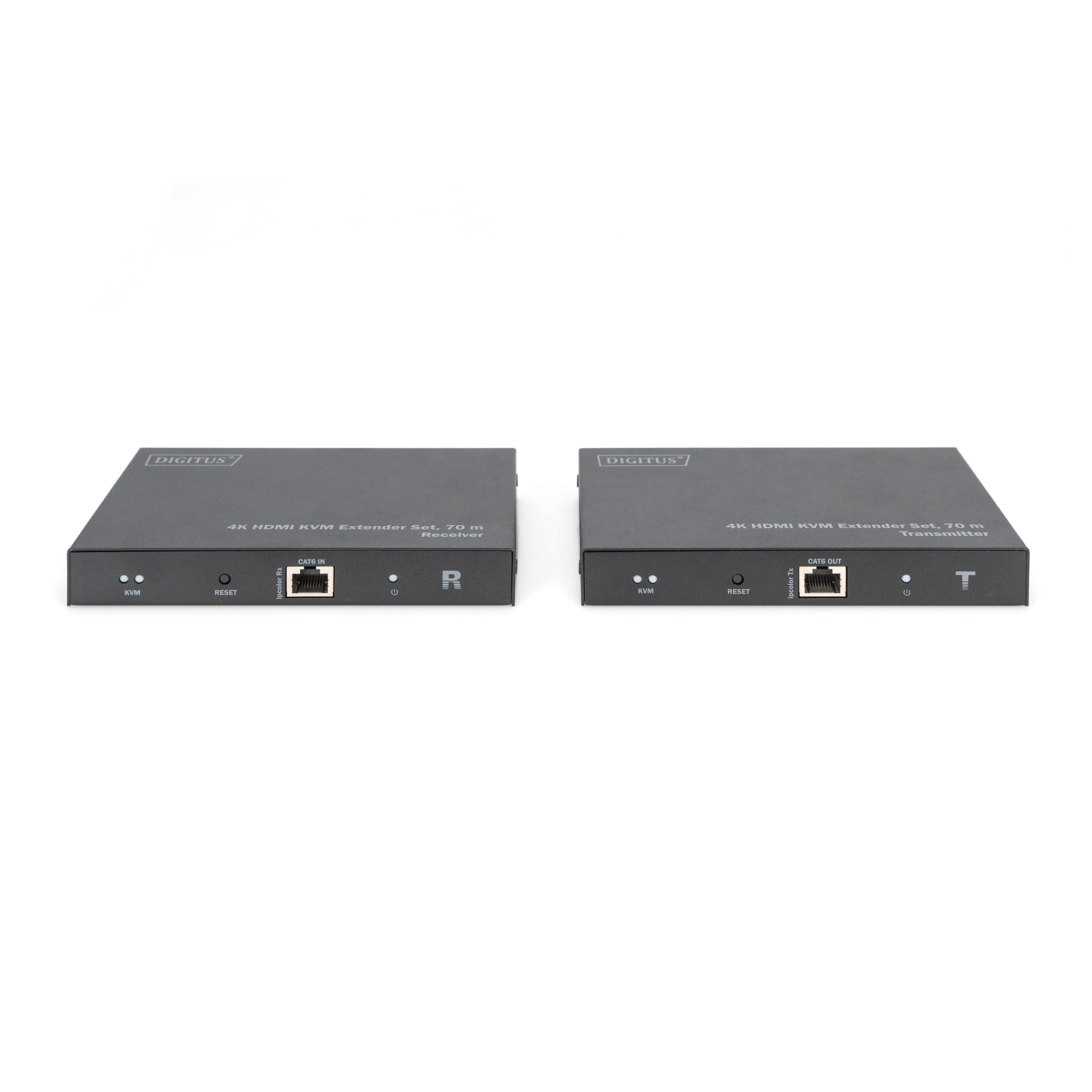

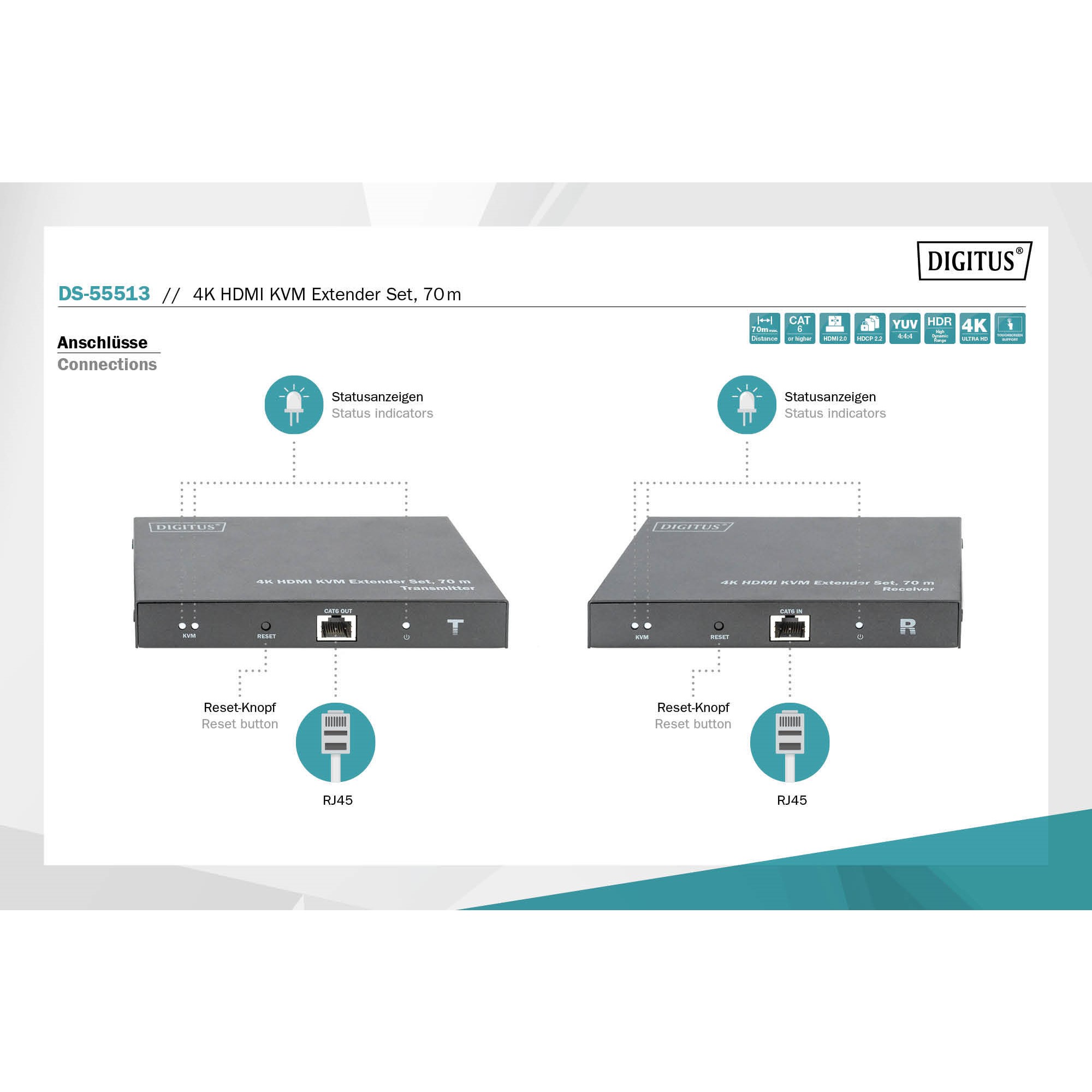

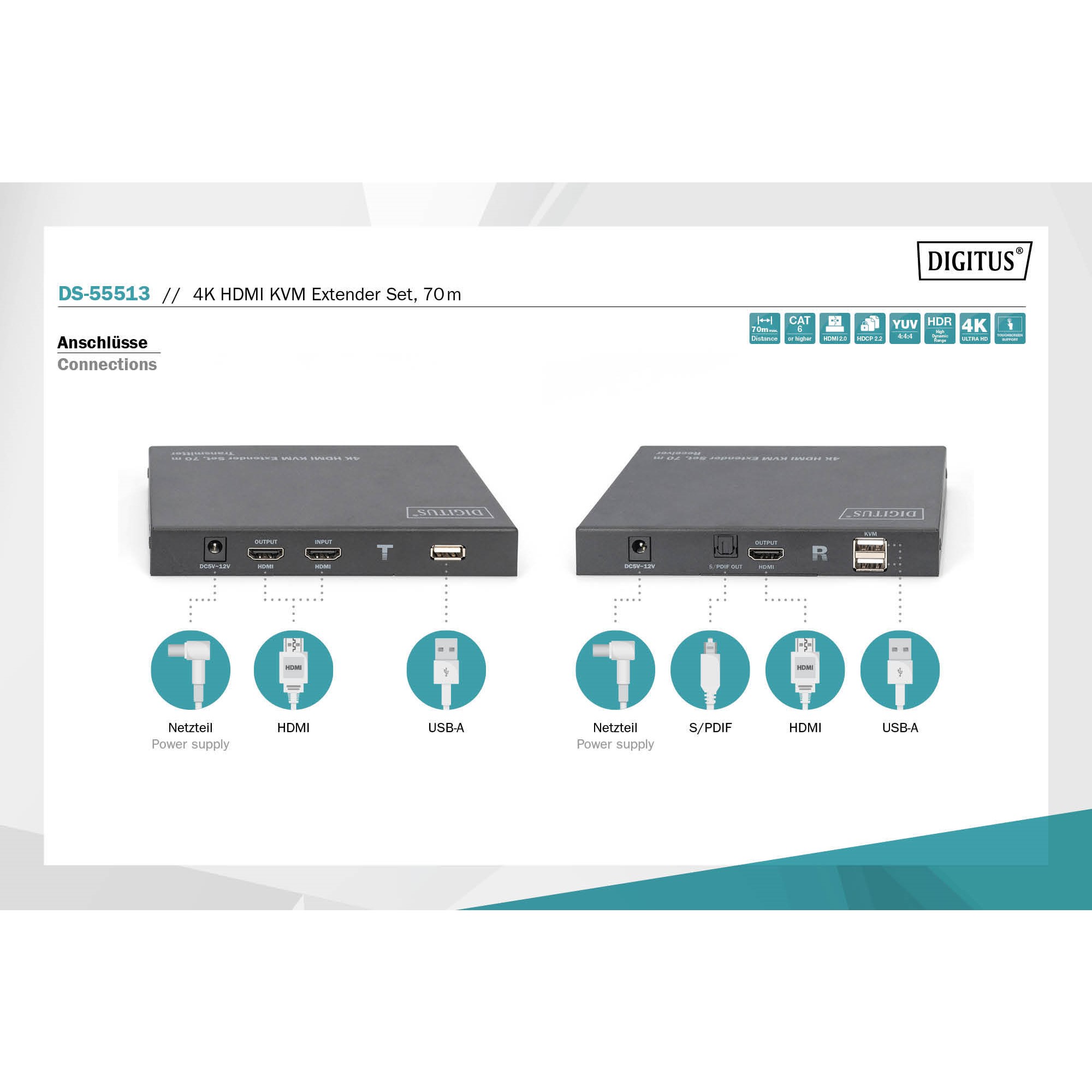

Transmitter unit connections:
1x HDMI input (4K/60Hz) - Connection signal source
1x RJ45 output - Connection CAT transmission cable
1x HDMI loop-out / output – Connection of local monitor (source device)
1x USB-A port - Connection to source device
1x Power adapter input (DC 5V/2A)
1x Reset button
3x LED status display

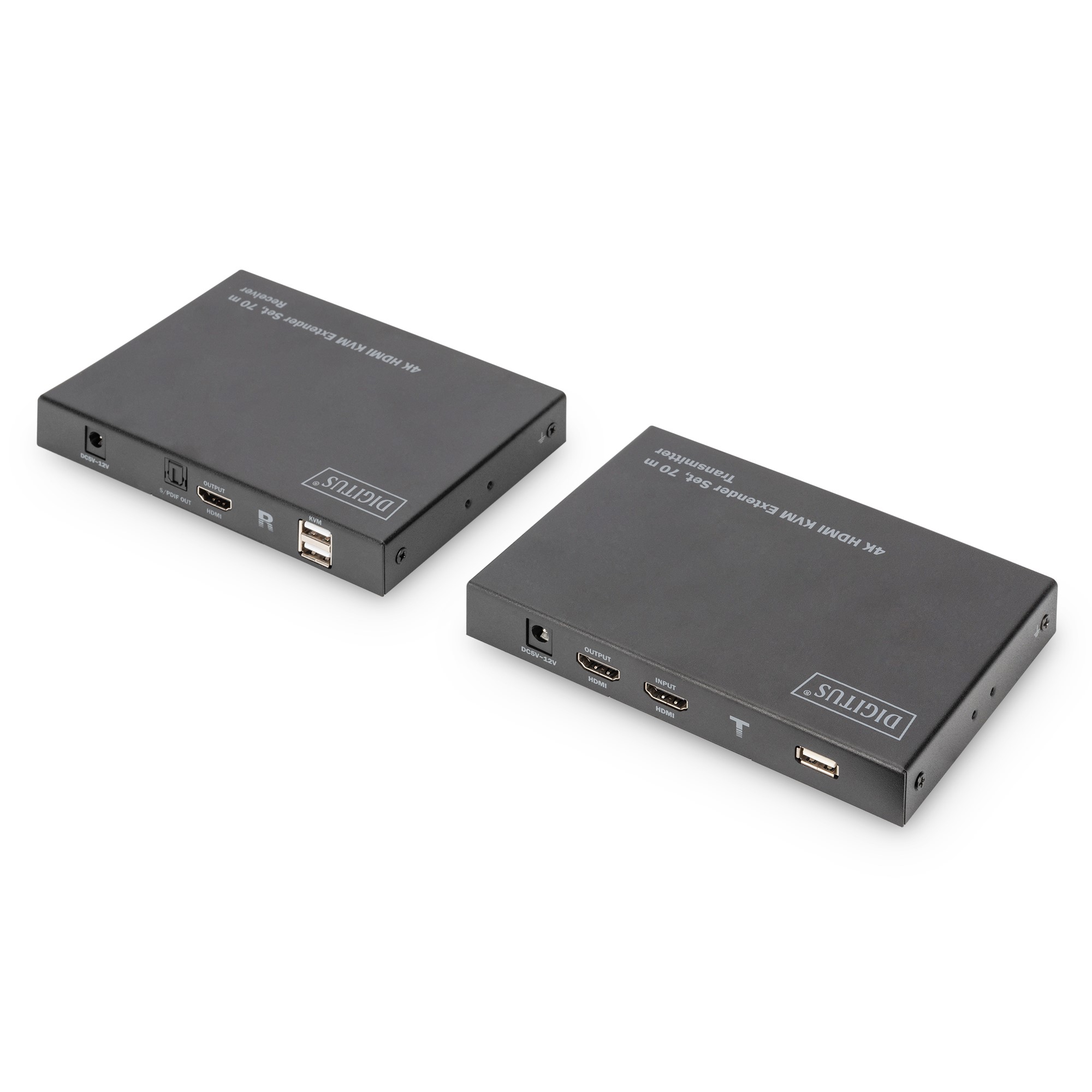

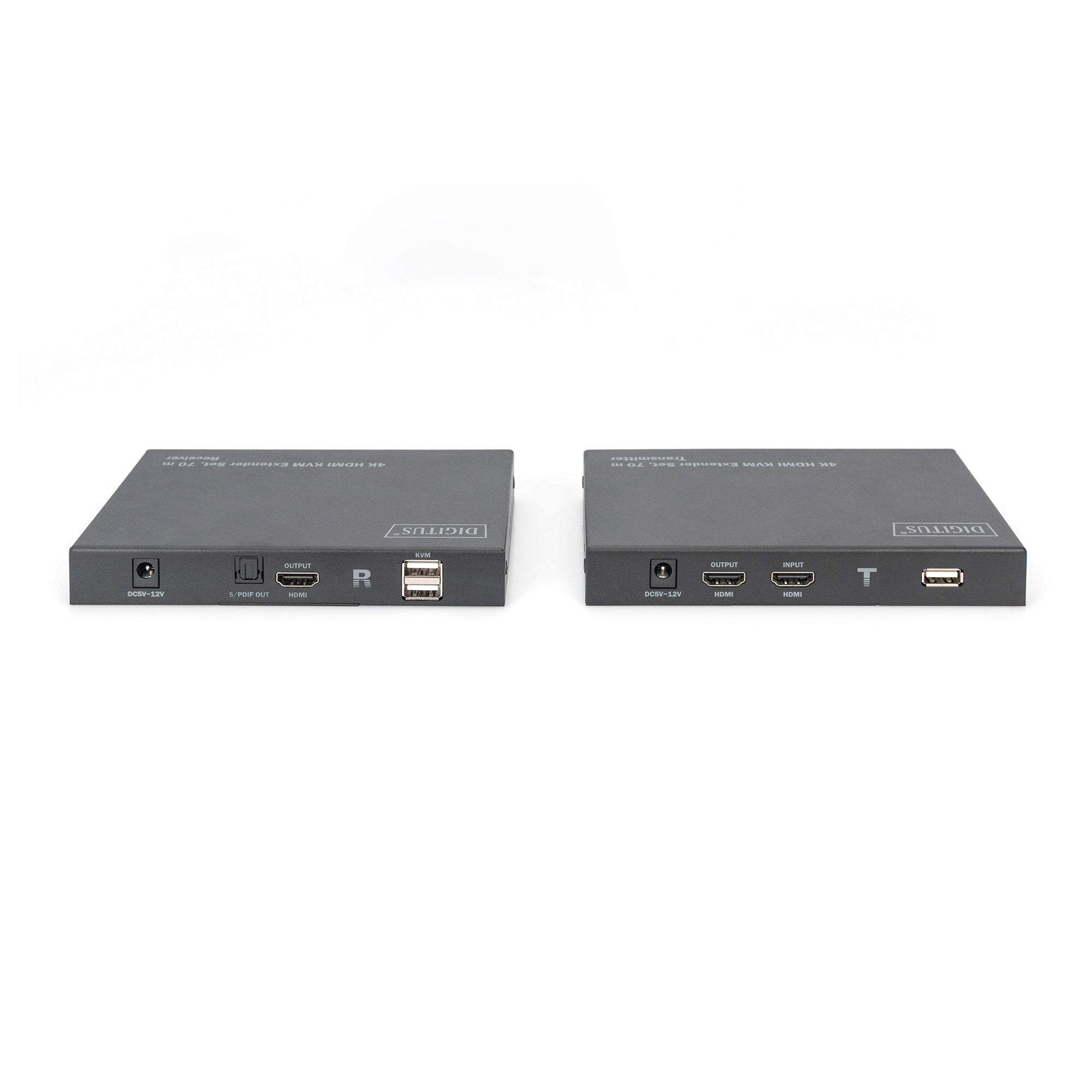

Receiver unit connections:
1x HDMI output (4K/60Hz) - Connection output device
1x RJ45 input - Connection CAT transmission cable
2x USB-A port - Connection of mouse, keyboard, touchscreen
1x Audio output (digital - S/PDIF - Connection of external speakers
1x Power adapter input (DC 5V/2A)
1x Reset button
3x LED status display
Surge protection - ESD protection
Suitable for wall mounting
Operating temperature: -20-60°
Power consumption: Transmitter / receiver ca. 4W
Housing: Metal
Dimensions (1 unit): L 10.7 x W 15 x H 2.8 cm
Weight (1 unit): 260 g
Color: black
KVM: no
PoE (Power over Ethernet): no

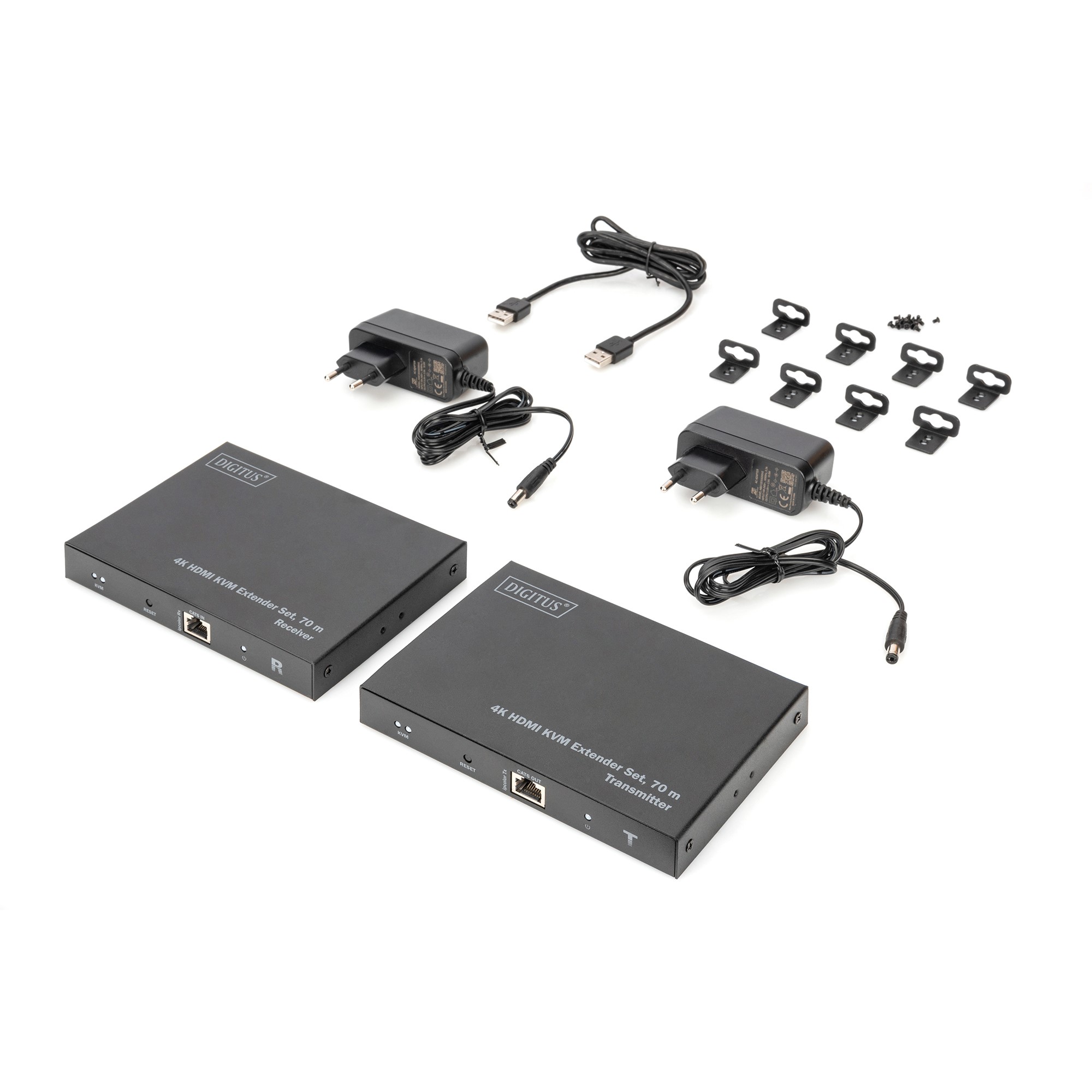

PACKAGE CONTENT
1x Transmitter unit
1x Receiver unit
2x Power adapter (DC 5V/2A, 1.45 m)
1x USB cable
1x Wall mounting fastening material
1x User manual
