Product description
Certified, highest quality, dedicated for professional use, ALANTEC F/UTP category 6 (class E) data communication cable.

Fully copper conductors, pairs separated by a separator, shielded cable center, designed for use in environments exposed to electromagnetic interference.


The high quality of the product has been verified by testing at the INTERTEK laboratory in the USA and the Research Laboratory at the Communications Institute in Warsaw, and confirmed by a relevant document of compliance with industry standards:

ISO/IEC 11801 (international standard, consistent with the Polish and European PN-EN 50173 standard modeled on it) and ANSI/TIA - 568 (standard used in the US market).



The product is covered by a 25-year system warranty.


ICT cables of this type are designed for indoor horizontal and vertical installations in ICT and CCTV networks. All ALANTEC cables comply with the CPR directive on the classification of construction products for fire resistance and defining test methods for cables intended for installation in buildings.

Technical Specifications
CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 6
Class E (250MHz standard) with extended characteristics up to 450 MHz / 1 Gbps
AWG cross section 4x2x23AWG
Conductors single stranded copper with a diameter of 0.57mm (23AWG)
Insulation polyethylene
Fire classification CPR (Euroclass) Dca
Fire load (MJ/m) 0.60 (approx.).
Center 4 pairs twisted on a cross-shaped core insert wrapped with polyester film
Shield polyester foil covered with a layer of aluminum laid with a layer of metal to the inside, under the shield a ground wire of tinned copper wire with a diameter of at least 0.4 mm
Coating halogen-free flame-retardant material with limited smoke and corrosive gas release (LSOH/FRNC)
PoE 802.3 at
Color violet
ELECTRICAL PROPERTIES AT 20ºC
DC resistance loop ≤ 93.8 Ω /km
Alternating resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Capacitive reactive resistance at 800 Hz nom. 48 nF/km
Variable reactive capacitive resistance ≤ 1500 pF/km
Characteristic apparent resistance (1-1000MHz) (100 ± 15) Ω
Nominal velocity of propagation (NVP) 69%.
Delayed propagation Nominally ≤ 535 ns/100m
Delay angle Nominally ≤ 20 ns/100m
DC installation tester, 1 min (core) 1000 V
MECHANICAL PROPERTIES
Bending radius 4 x outer ø
Max. pulling force 80 N
Temperature range during use -30°C to + 50°C
Temperature range during installation 0°C to + 50°C
Outer diameter 7.3 mm
Weight kg/km 51 kg

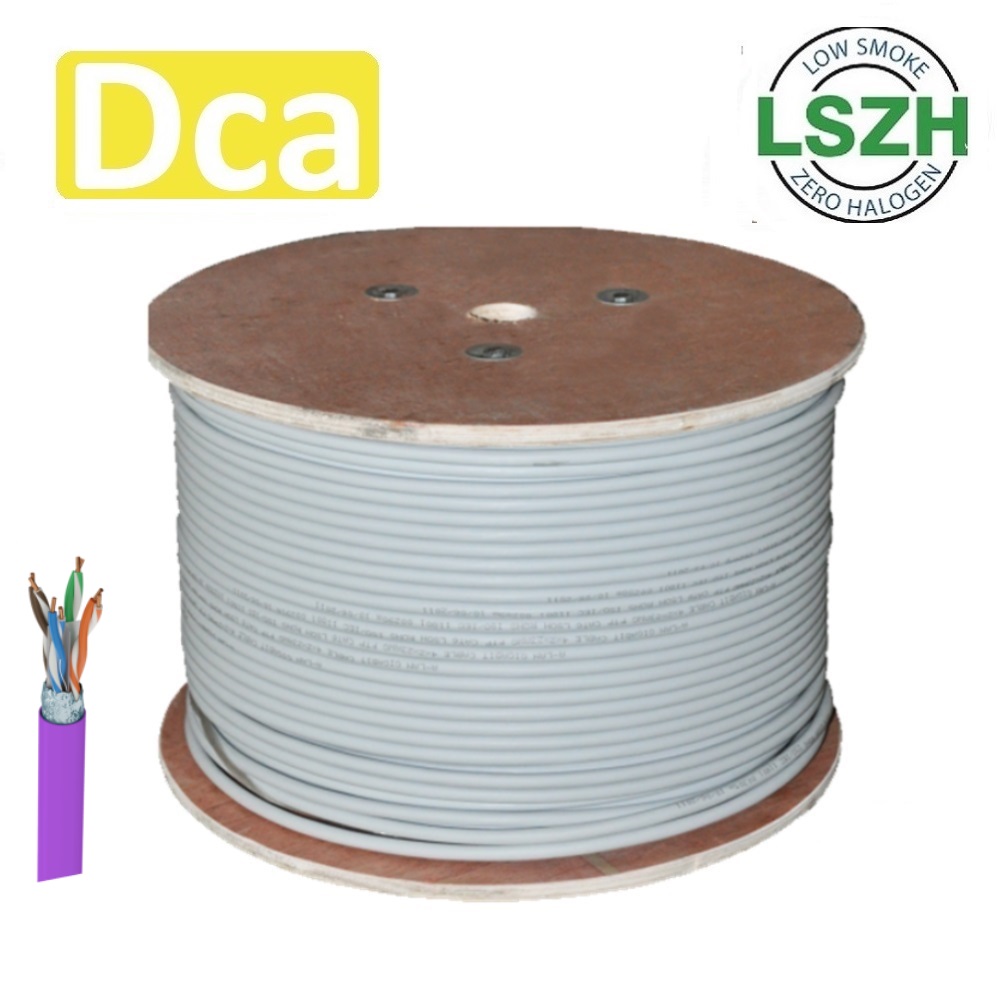

Packing spool (500m)
