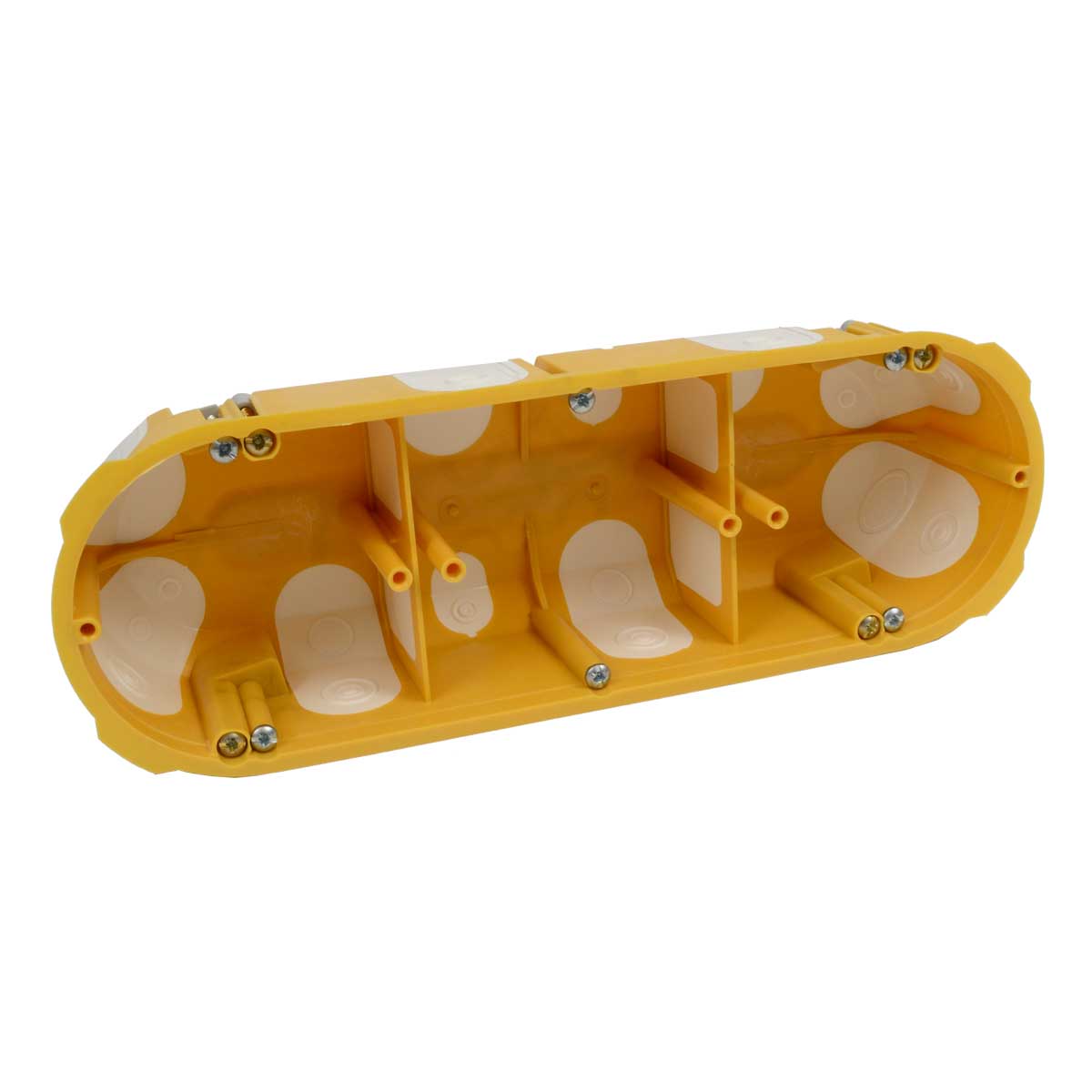

For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low energy and passive houses. Two tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. Protected by European industrial design trademark. The IP30 protection a box fitted with an instrument with protection a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.

Weight 0,10 kg/pcs
Material PVC
Leadless material yes
Soundproofing yes
Self-extinguishing 30 s
Rated voltage -= 400 V
Rated current -= 16 A
Temperature resistance -5 - 60 °C
Flaming loop test 850 °C

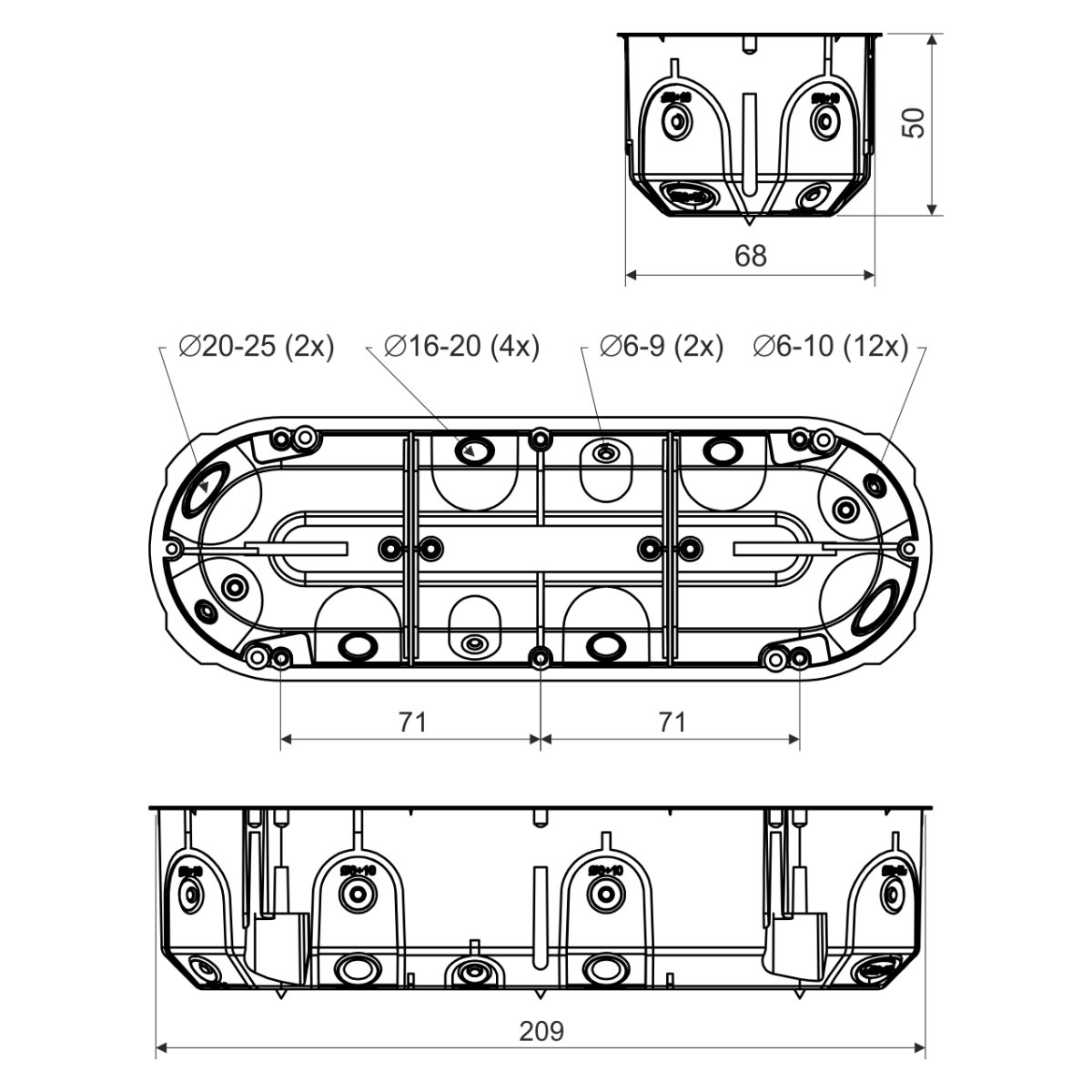

Width 209 mm
Height 68 mm
Depth 50 mm
Milled (drilled) hole diameter 68 mm
Manufactures´s recommendations
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Fire reaction class A1 - F
Spacing when joining 2 boxes 71
Protection types IP30
Standards ČSN EN 60 670-1
Package description
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box
