Weight 0,01 kg/pcs
Colour black
Material PC-ABS
Halogen free material yes
UV stable/UV stable material yes
Self-extinguishing 30 s
Temperature resistance -45 - 90 °C
Mechanical protection IK09

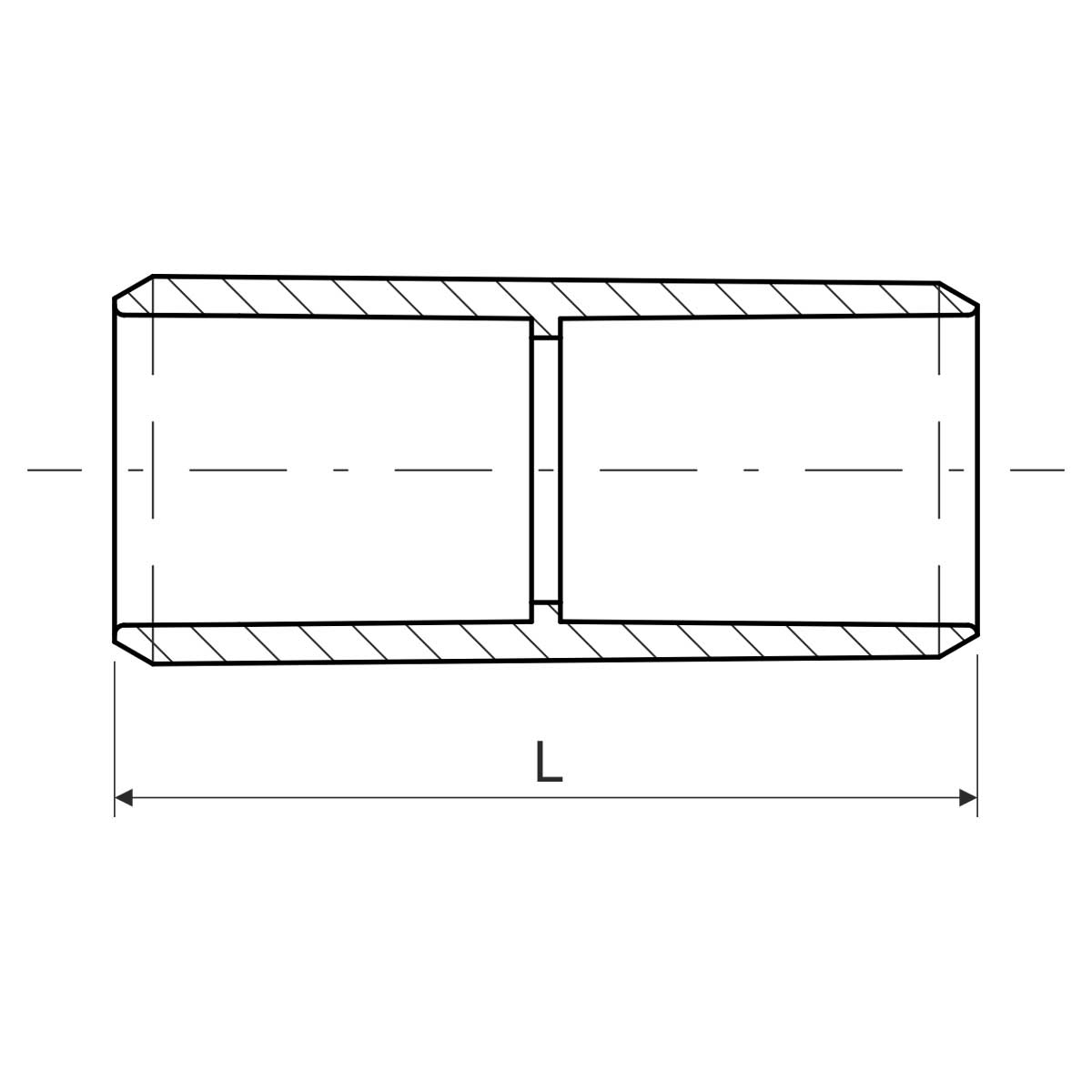

Length 60 mm
Pipe outside diameter 25 mm
Funcionality in fire P90-R, E90, PS90
Area with explosion danger
Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Fire reaction class A1 - F
Standards ČSN EN 61386-1 ed.2
Fire resistance standards ČSN 73 0895, DIN 4102-12, STN 92 0205
For pipes 25

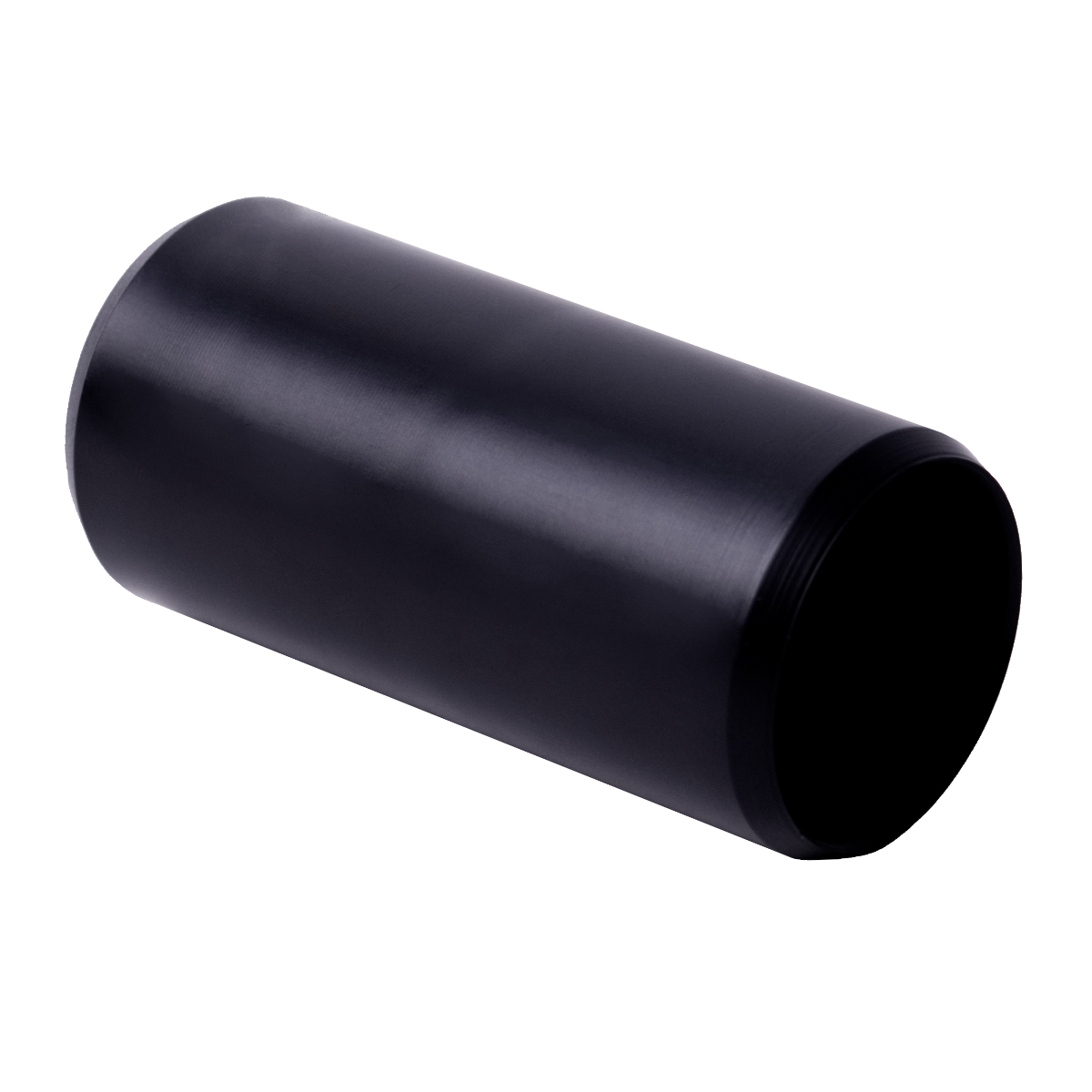

Connectors are designed to join pipes. Socketing of pipes and elbows reduces the consumption of connectors when making rigid pipe installations.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
