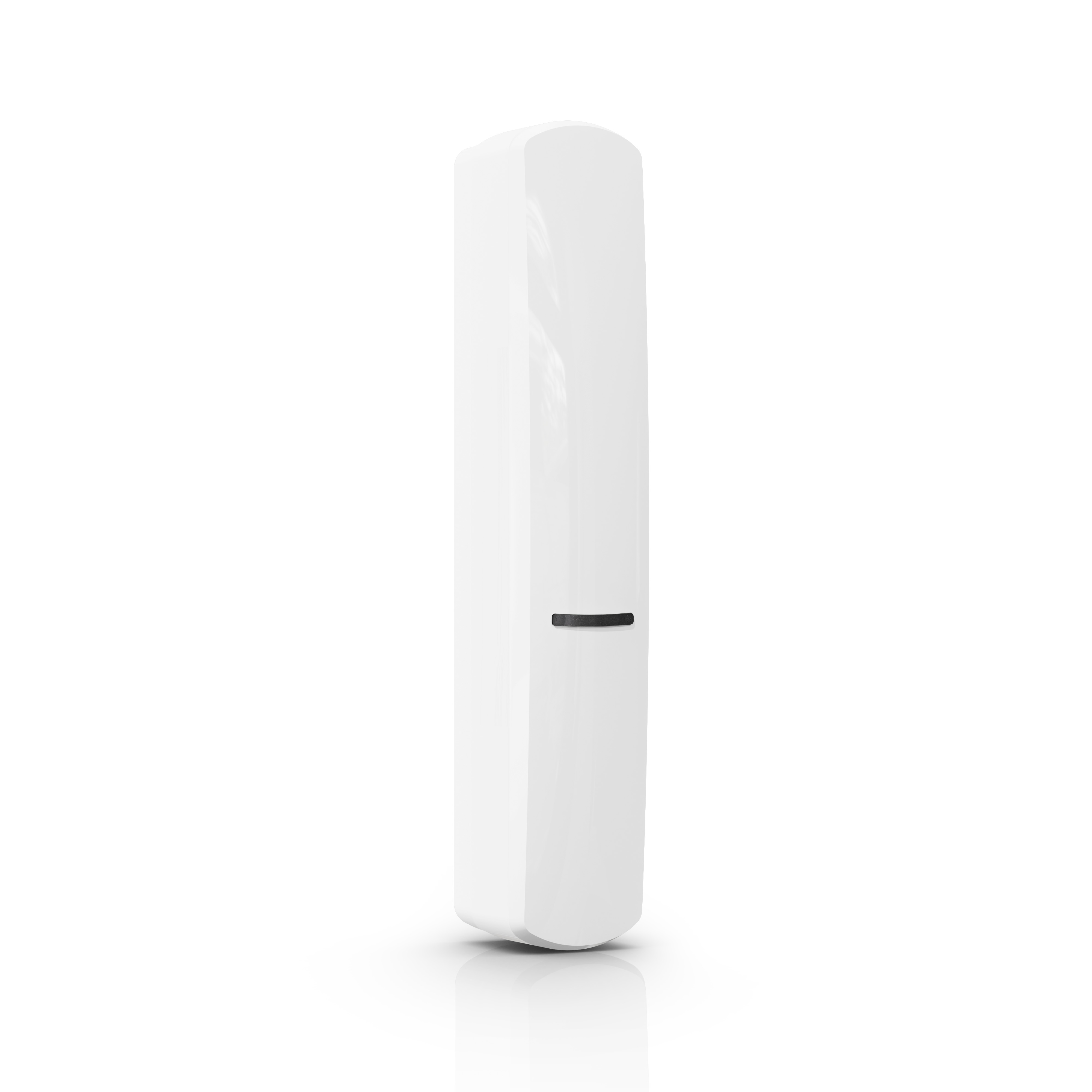

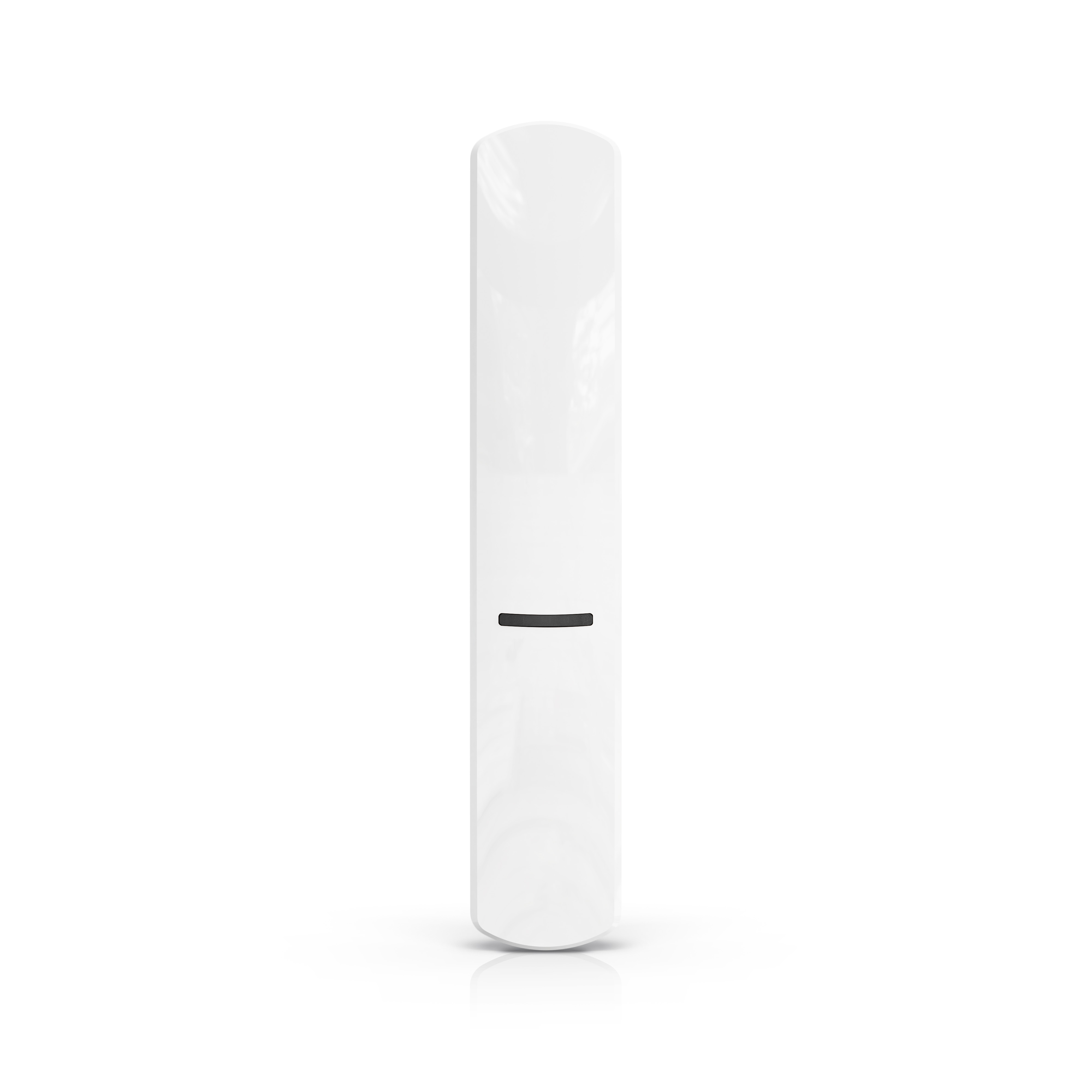

The XD-2L is a multipurpose wired detector, which can operate with any alarm control panel. The device can work as: magnetic contact, shock detector, shock detector and magnetic contact, and water flood detector.
The detector is available in white (XD-2L), brown (XD-2L BR) and dark grey (XD-2L DG).

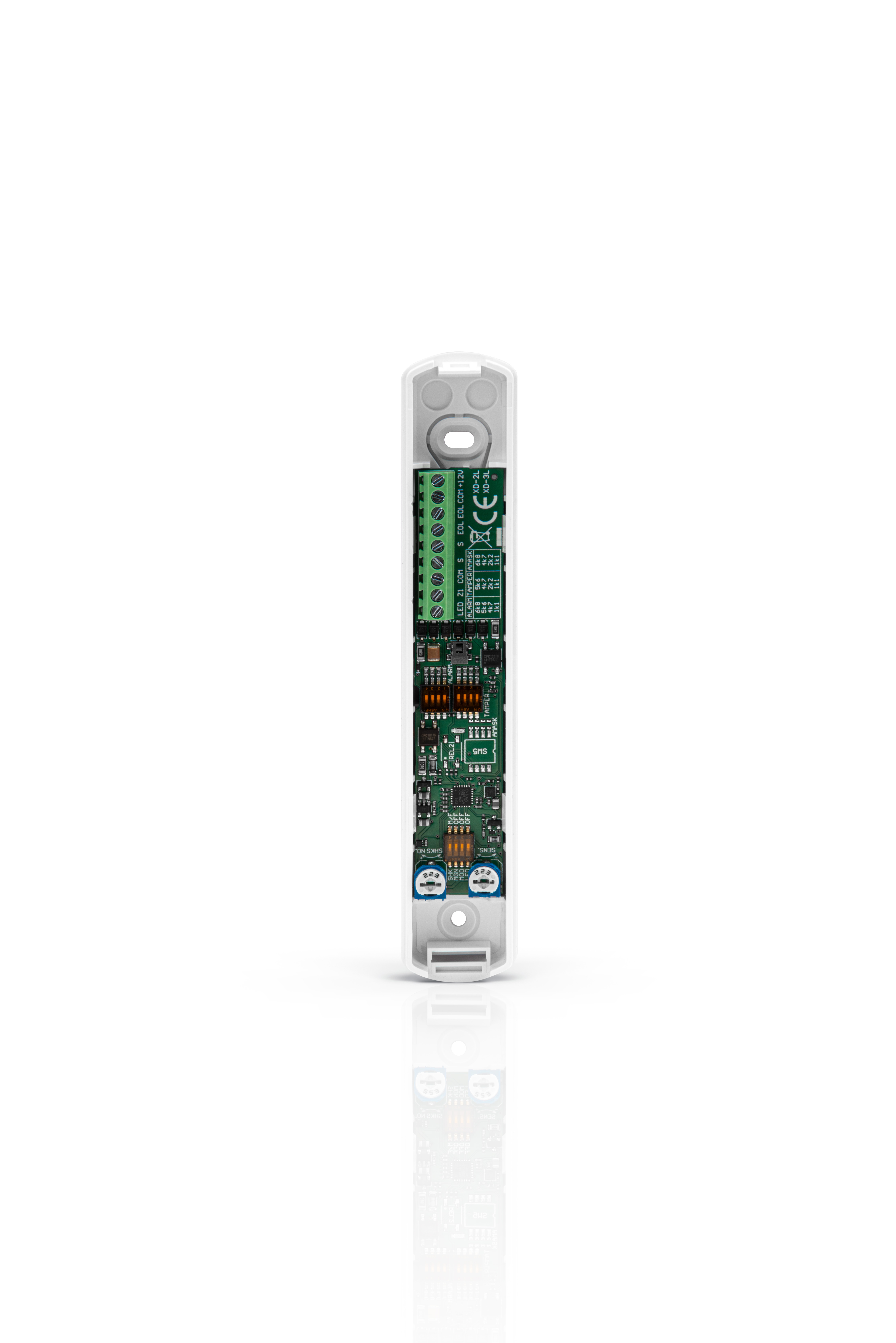

option to select detector type with DIP switches
modes of operation:
magnetic contact
detection of opening of a door, window, etc.
input for connecting an NC-type wired detector (e.g. other magnetic contact)
1 alarm output
shock detector
detection of shocks and vibrations accompanying attempts to force a door or window, etc.
input for connecting an NC-type wired detector (e.g. other magnetic contact)
1 alarm output
shock detector and magnetic contact
detection of shocks and vibrations accompanying attempts to force a door or window
detection of opening of a door, window, etc.
input for connecting an NC-type wired detector (e.g. other magnetic contact)
1 or 2 alarm output(s)
water flood detector
detection of flooding in rooms with plumbing
input for connecting external flood probe FPX-1 (white), FPX-1 BR (brown) or FPX-1 DG (dark grey) - the probe available separately
1 alarm output
option to select alarm output type (2EOL/NC or NC)
option to select EOL resistors for 2EOL configuration
alarm: 1.1 kΩ / 2.2 kΩ / 4.7 kΩ / 5.6 kΩ / 6.8 kΩ
tamper: 1.1 kΩ / 2.2 kΩ / 4.7 kΩ / 5.6 kΩ

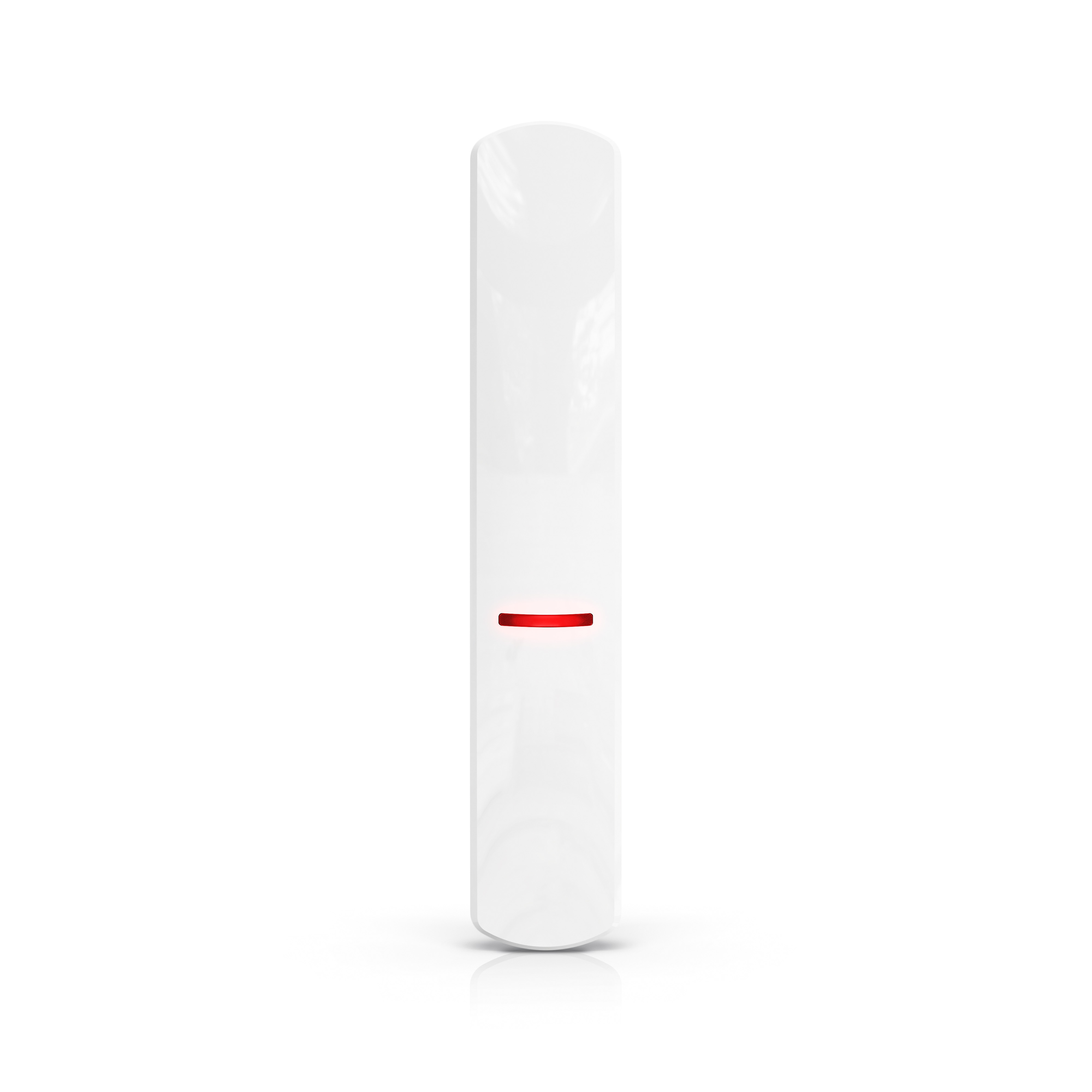

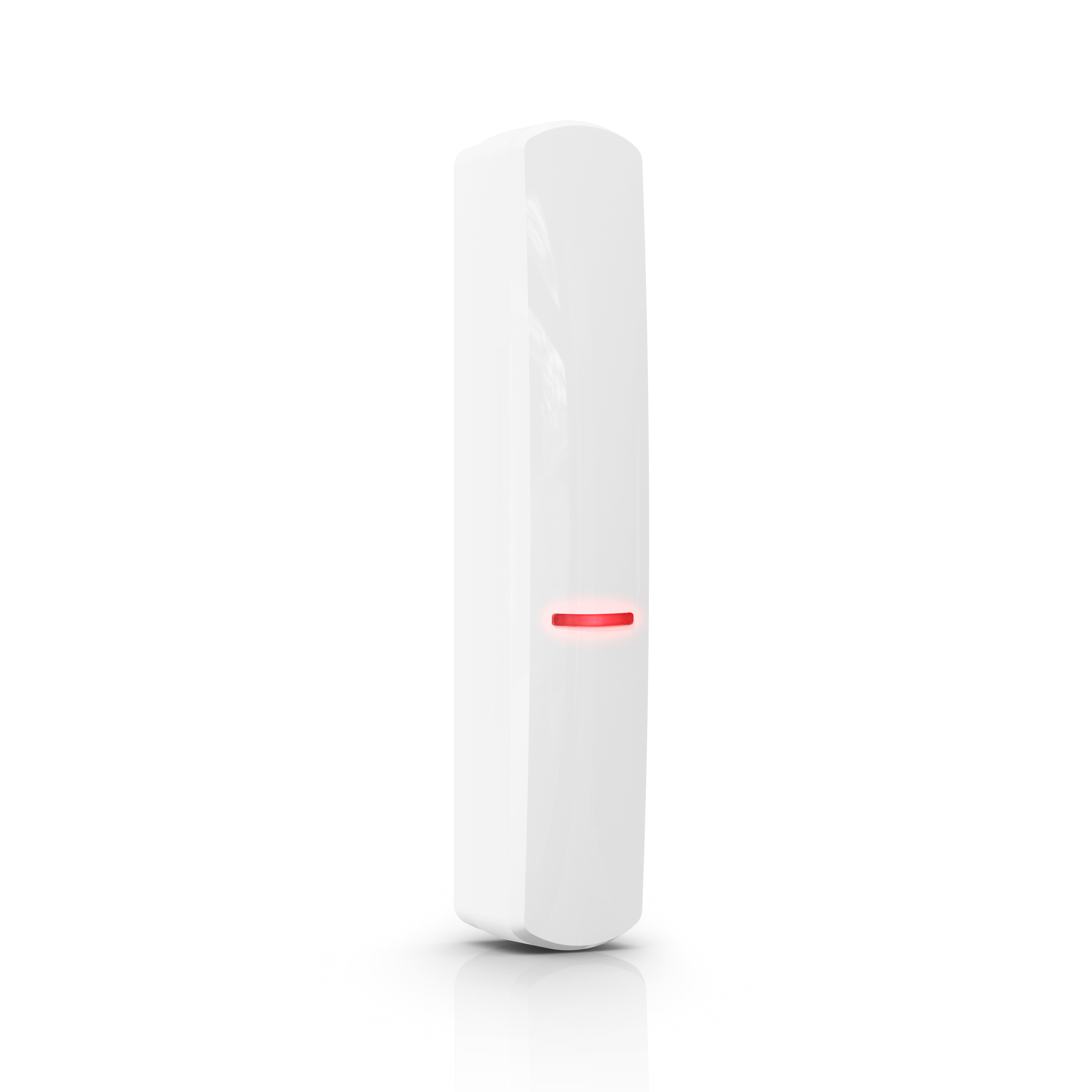

LED indicator
remote enabling/disabling of the LED indicator
supply voltage control
tamper protection against enclosure opening
2 magnets included (for surface and flush mounting)
