6C-BIDI-0110A 10/100Base-Tx To 100Base-FX TX1310nm Singlemode Media Converter 10KM SC

Features
Support the switch between 100Base-TX and 100Base-FX2
1*155Mbps Simplex fiber port and 1*100M Ethernet port

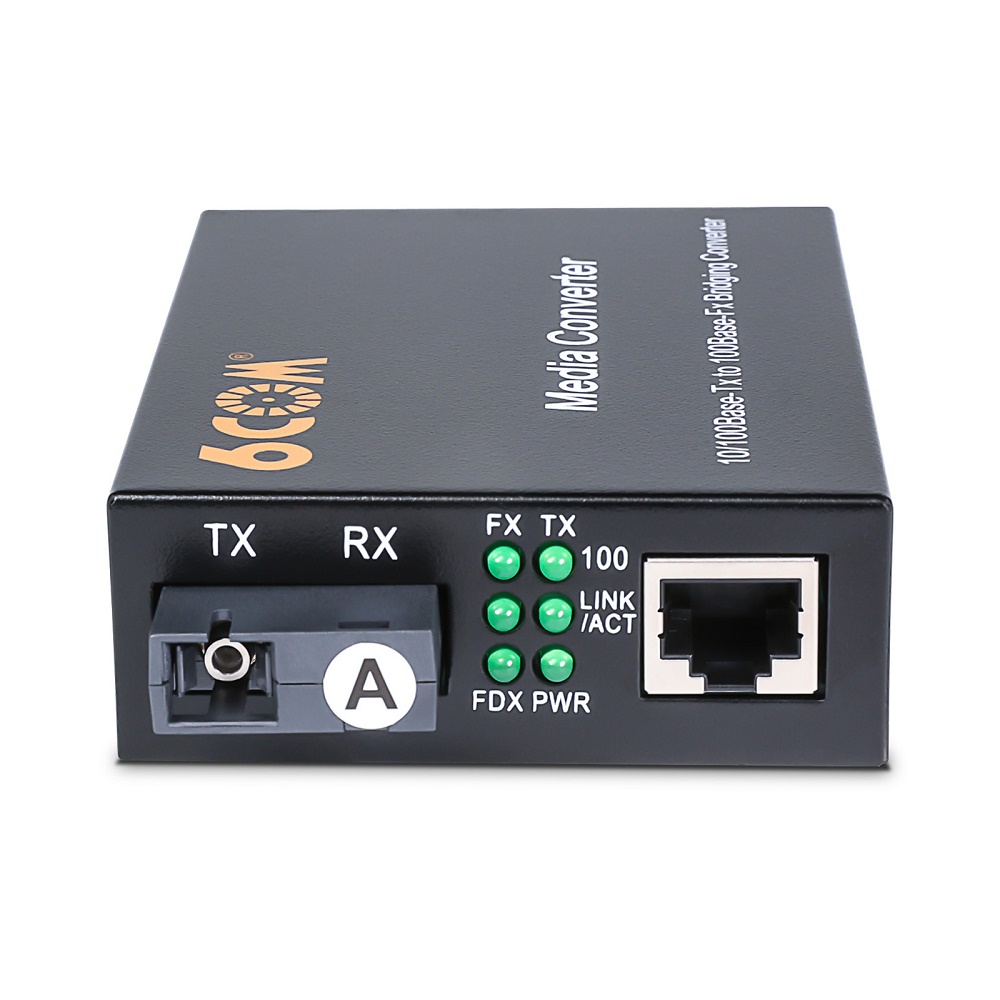

Each port has the complete LED Indicator light for installation, commissioning and maintenance
Support 9K Jumbo Packet
Support direct forwarding mode, less time delay
Less power consumption, only 1.5W in full load condition
Support isolation protection function, good data security
Small size, suitable for installation in various places
Adopt low power consumption chips to ensure longtime and stable operation

Application
Introducing the 6C-BIDI-0110A, a compact and efficient bidi 100M media converter with a simplex SC connector for up to 10km transmission. This versatile device supports seamless switching between 100Base-TX and 100Base-FX, along with 155Mbps simplex fiber port and 100Mbps Ethernet port for high-speed data transfer. Each port features a complete LED indicator light for hassle-free installation and maintenance. The converter supports 9K Jumbo Packets and direct forwarding mode, ensuring swift data transmission with minimal delay. Consuming only 1.5W in full load, it offers exceptional energy efficiency. Enhanced data security is achieved through isolation protection, while its small size enables installation in various locations. The 6C-BIDI-0110A is designed with low power consumption chips for long-lasting, stable operation.

Parameters Table
Ports 1 x SC Simplex connector 10/100M RJ45
Standards and Protocols IEEE802.3an, IEEE802.3ae
Cable Type (Fiber) Singlemode 9/125µm
Cable Type (Copper) UTP 5e, 6, 6a Cable (Maximum 100m)
Power Consumption Full-load-3W
Jumbo Frame 9k
Operation Mode 100M for Full Duplex
Dimensions (HxWxD) 94x70x26mm
MTBF (hrs) -50,000Hrs
Latency 20us
External Power AC 100V~240V
Input Power DC 5-12V
Operating Temperature -10°C to 55°C
Storage Temperature -40°C to 70°C
Relative Humidity 5%~90% (Non-condensation)
Warranty 1 years
