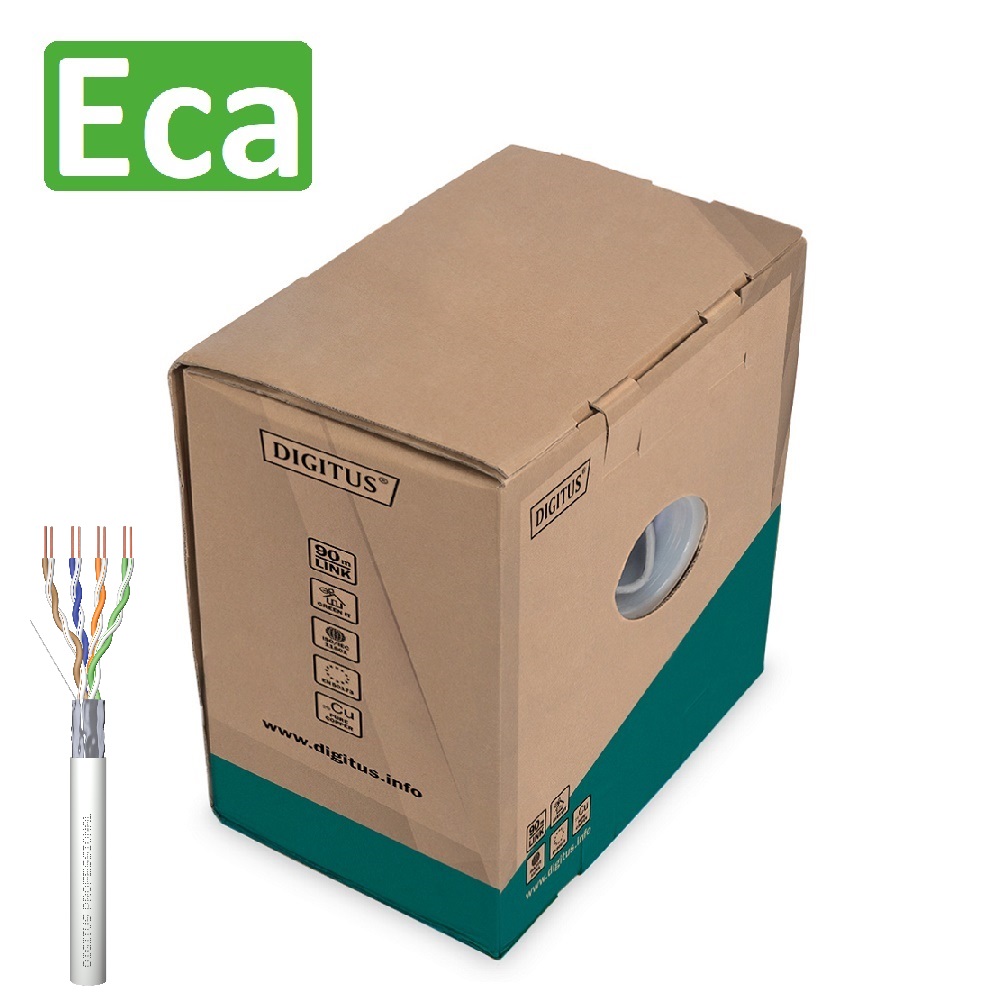

CAT 5e F-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey

Future-oriented standards and high-end quality for your network.

1GBit Ethernet
100 Mhz transmission frequency
PoE Power over Ethernet support
CPR class Eca

DESCRIPTION
The Digitus® Cat.5e F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 100 MHz. The PVC cable jacket is conform to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1.

TECHNICAL DETAILS

Physical properties:
Conductor: Bare annealed copper, solid AWG 24/1
System/s of AVCP: AVCP 3
Insulation: PE (Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shielding: None
Overall shielding: Foil shielded, drain wire
Overall sheath: Eca acc. to EN 50575; PVC
Outer sheath diameter (nominal): 0.55 mm nominal
Outer sheath color: Grey (RAL 7035)

Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 6.1 mm nominal

Electrical properties:
Impedance: 100±5 Ohm @ 1-100 MHz
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 3
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,b- acc. to EN 50174-2
NVP: 69%
Assortment: Twisted Pair Installation Cables
Category: CAT 5e
Shielding: F-UTP, foil shielding
CPR: Eca
Length: 305 m
Color: grey
Jacket: PVC
Structure: 4 x 2 AWG 24/1, solid twisted pair
