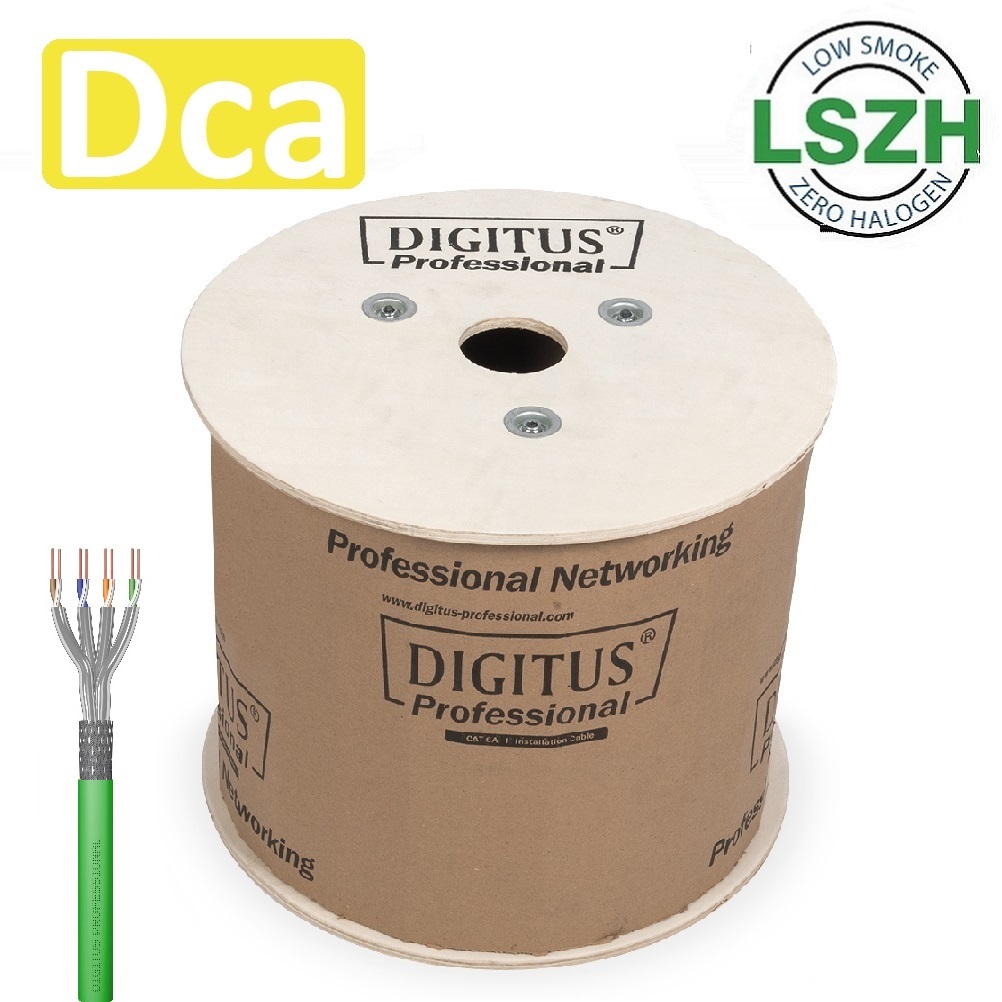

DIGITUS CAT 8.2 S/FTP installation cable, 500 m, Simplex, Dca-s2,d1,a1
Product number: DK-1843-VH-5
EAN: 4016032380542
CAT 8.2 S-FTP installationcable, 2000 MHz,AWG 22/1 Dca, 500 m, drum, simplex, grün

Future-oriented standards and high-end quality for your network

40 GBit Ethernet
2000 MHz transmission frequency
4PPoE Power over Ethernet support
BauPVO category Dca-s2,d1,a1

Description

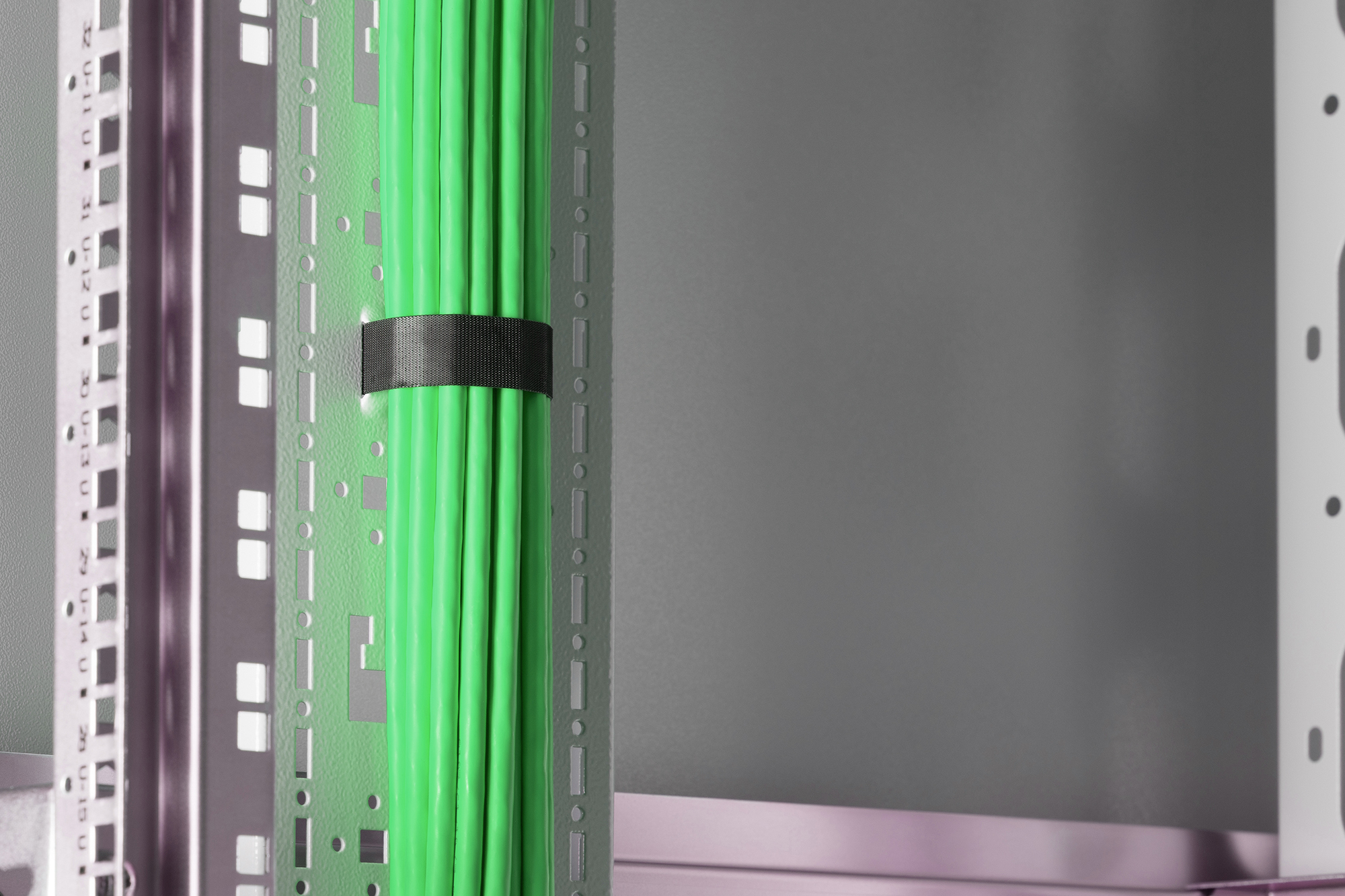

The Digitus Cat 8.2 S/FTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-12-1, DIN EN 50173, IEC 60332-3-24. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Technical details
Physical properties:
Conductor: Bare copper wire, AWG 22/1
System(s) of assessment and verification of constancy of performance: System 3
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
Overall shielding: Tinned copper braiding
Outer sheath: Dca-s2,d1,a1 according to EN 50575
Outer sheath thickness (nominal): 0.55 mm nominal
Outer sheath color: Green
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to +75 °C
Operating temperature range: -20 °C to +60 °C
Installation temperature range: 0 °C to +50 °C
Outer diameter simplex (nominal): 7.9 mm nominal (Dca)
Weight (kg/km): 65 kg/km
Electrical properties:
Impedance: 100±15Ohm @ 1 - 2000MHz
Capacitance: 99 pF/30m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 99pF/30m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 2.4Ohm/30m max. (4% max. unbalanced resistance)
Loop resistance: 5.6 Ohm/24m max. (3% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1
Phase delay: 171 nS/30 m max.
Time delay: 13.5 nS/130 m max.
Separation class: -d- according to EN 50174-2
NVP: 79%
Assortment: Twisted Pair Installation Cables
Category: CAT 8.2

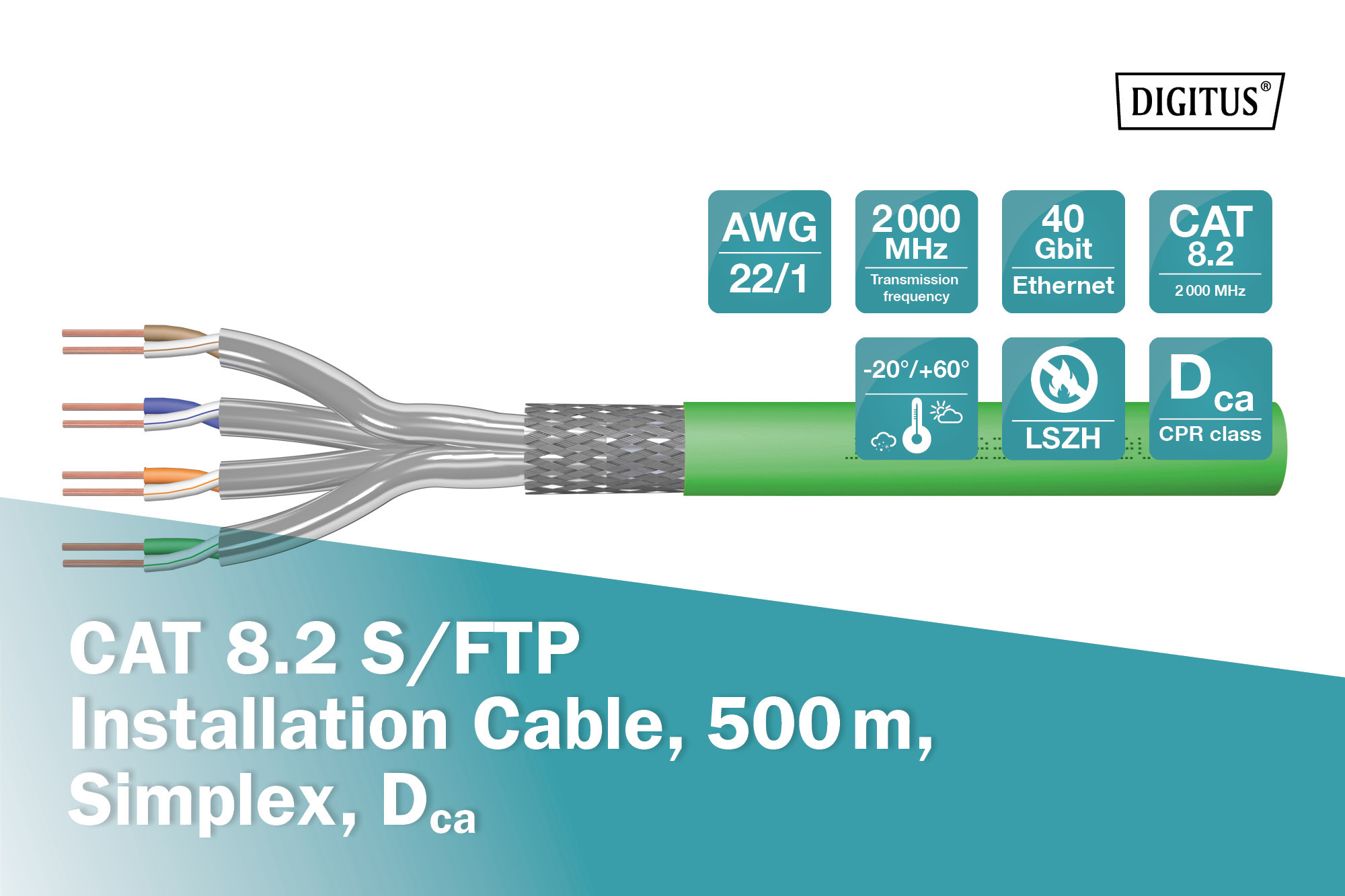

Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: Dca
Length: 500 m
Color: green
Jacket: LSOH
Structure: 4 x 2 AWG 22/1, solid twisted pair
