Overview:

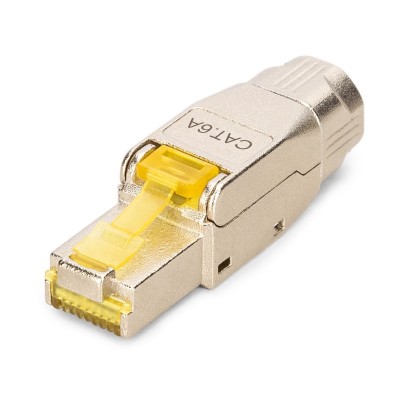

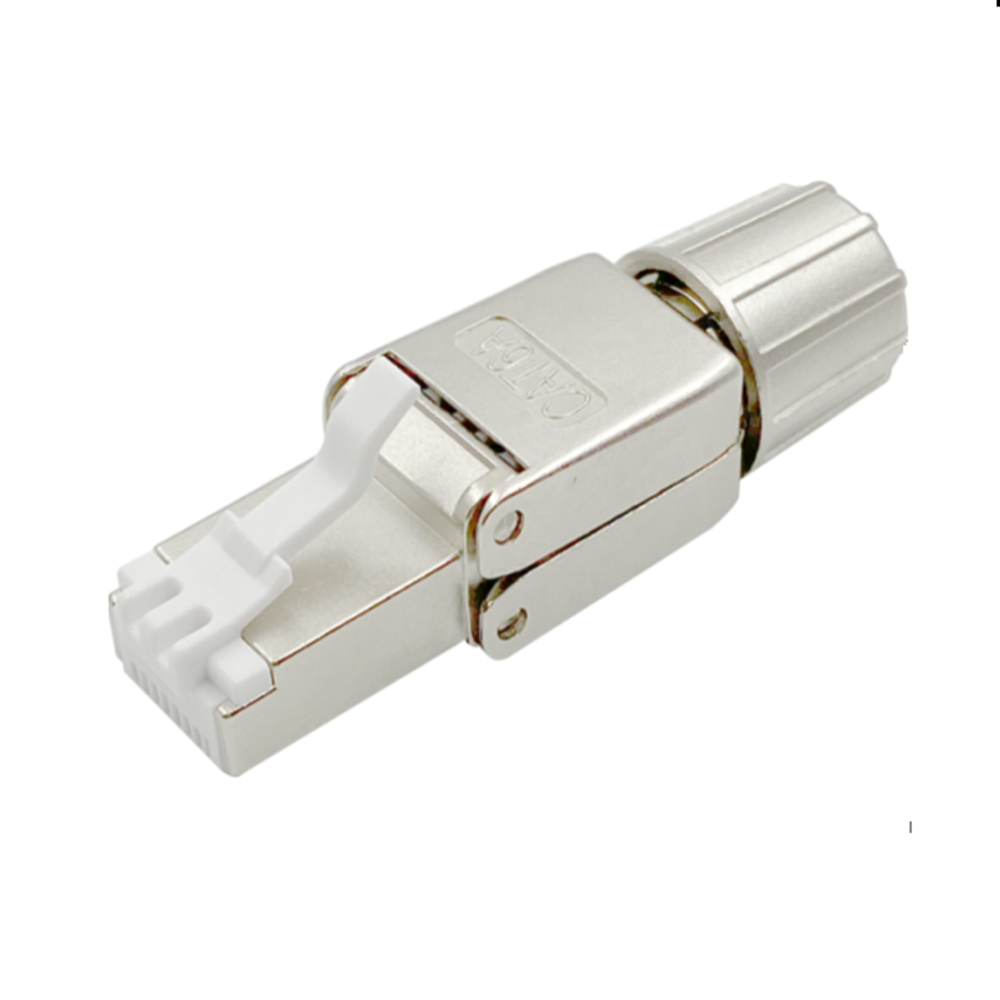

Premium zinc die cast housing field-terminated FastPLUG provides superior shielding and mitigates alien crosstalk, increases shielding and integrity. No crimping tools are required for easy assembly, perfectly designed for fast installation. Screw-on metal strain relief boot is convenient to install and disassemble, saving your time.
Specifications:
Connector Type Category 6A RJ45 8P8C Shielded Type Shielded
Cable Type Round, Shielded Conductor Type Solid | Stranded
Positions/Loaded Contacts 8/8 Termination Type IDC
Contact Base Material Phosphor Bronze Contact Plating Material 3 Prongs, Gold
Material Type Zinc Alloy Plug Shield Plating Material Nickel
Mating Durability Mini. 750 Cycles Wiring Scheme T568B/T568A
Fire Rated UL 94-V0 | UL 94-V2 PoE Compatibility PoE, PoE+, PoE++
Compatible Insulated Conductor Diameter, Maximum 1.5mm Compatible Insulated Conductor Diameter, Minimum 0.8mm
IDC Wire Gauge 23AWG-26AWG Package Type Blister
Product Compliance CE, RoHS, REACH, UKCA Packaging Quantity 10
Operating Temperature -20℃ to +60℃ Installation Temperature 0℃ to +50℃
Operating Humidity Range 0% to 90% RH, Non-Condensing Storage Humidity Range 0% to 90% RH, Non-Condensing
Key Features:
1, Tool Free - Easy Installation, perfectly designed for fast installation.
2, Nut-Type strain relief boot convenient to install and disassemble.
3, Robust zinc alloy housing provides superior shielding and mitigates alien crosstalk.
4, Support 23-26AWG wire with OD between 6.0mm-7.5mm.
5, 50 micron gold-plated PIN for low signal losses.
6, Both Unshielded and Shielded version available.
7, Premium blister package.
