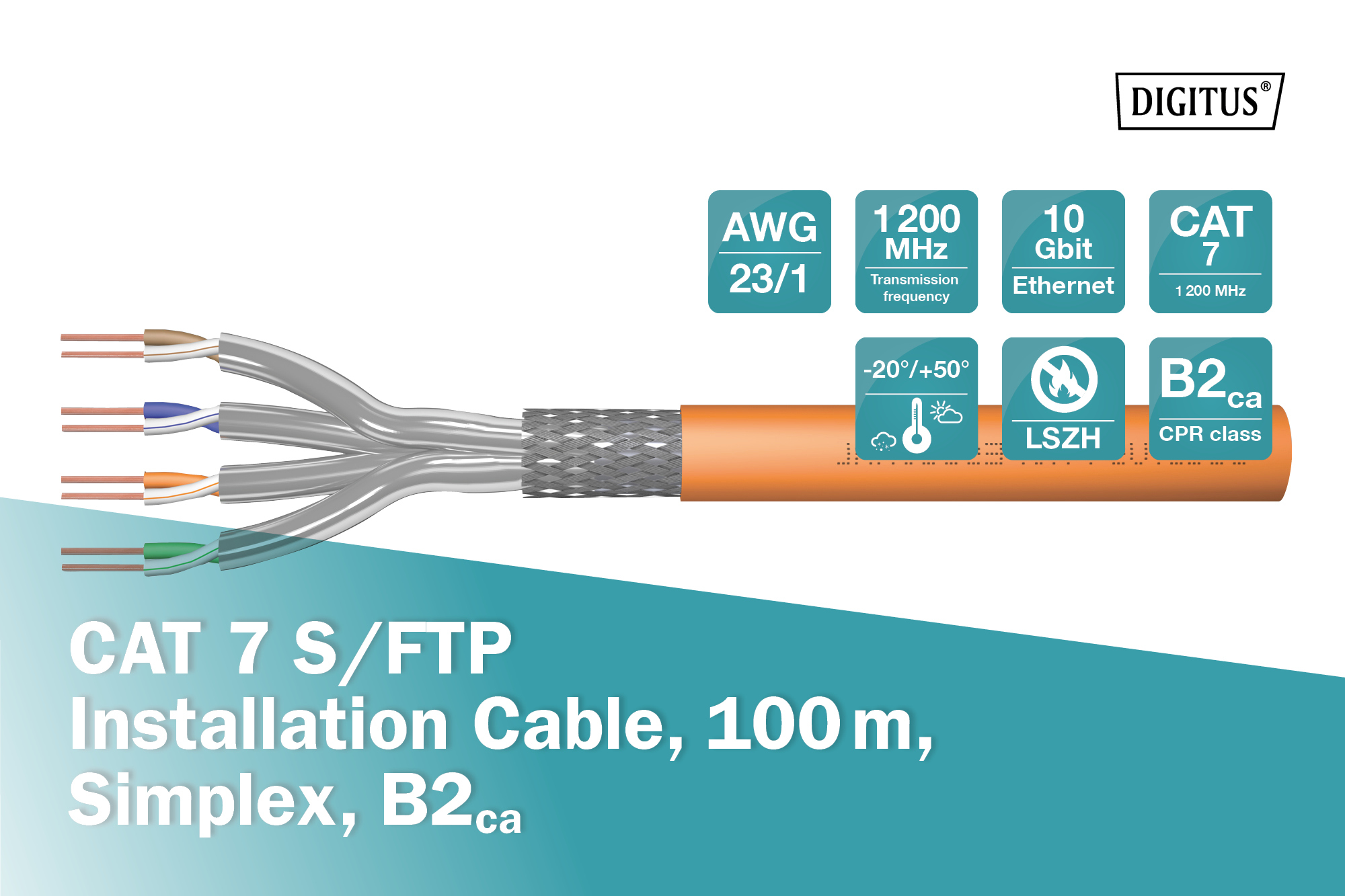

DIGITUS Cat.7 S/FTP installation cable, 100 m, simplex, B2ca
Product number: DK-1745-VH-1
EAN: 4016032441779
CAT 7 S-FTP installation cable, 1200 MHz B2ca (EN 50575), AWG 23/1, 100 m ring,

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1200 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class B2ca-(check DoP for further classification)

Description

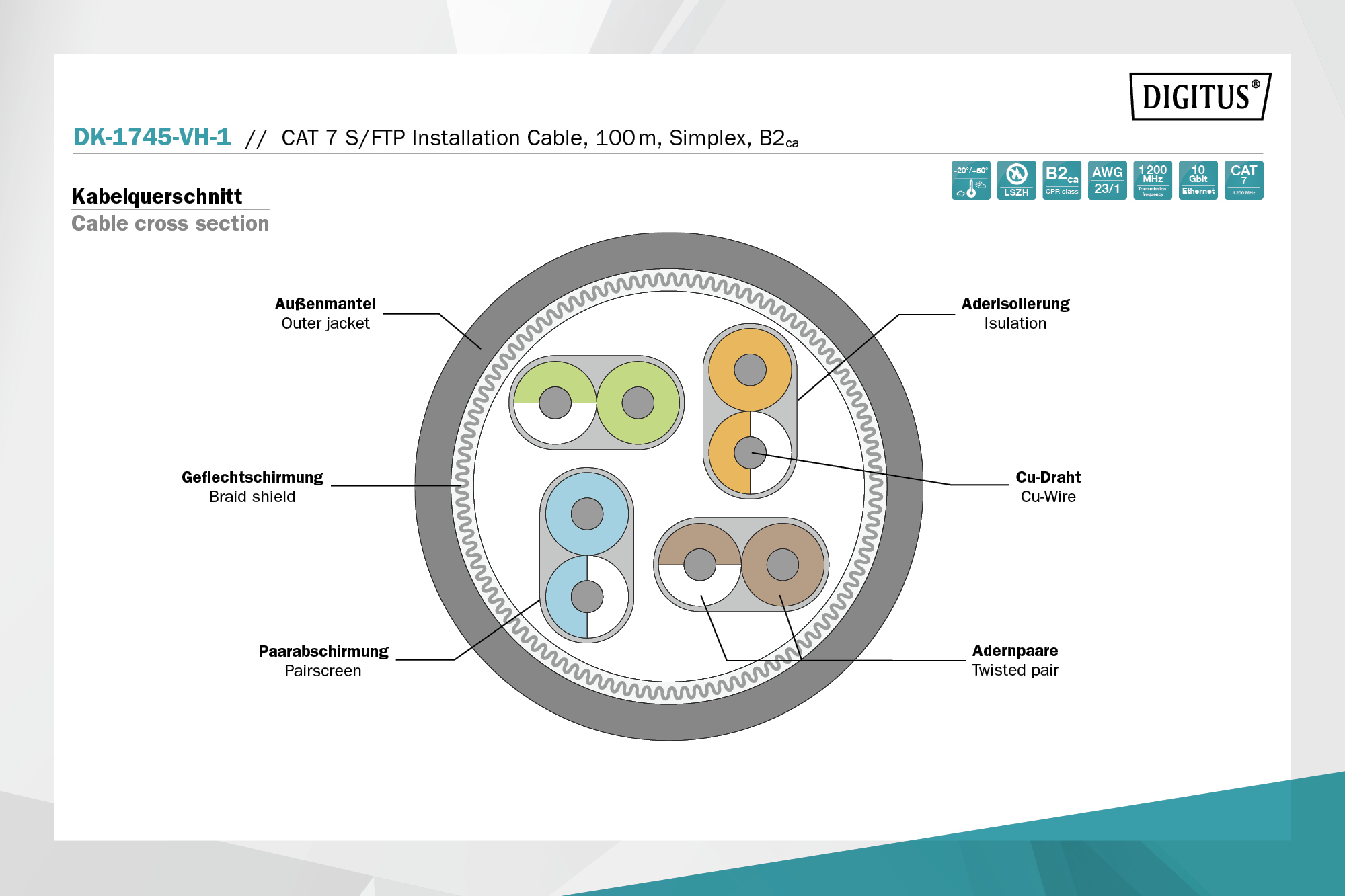

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

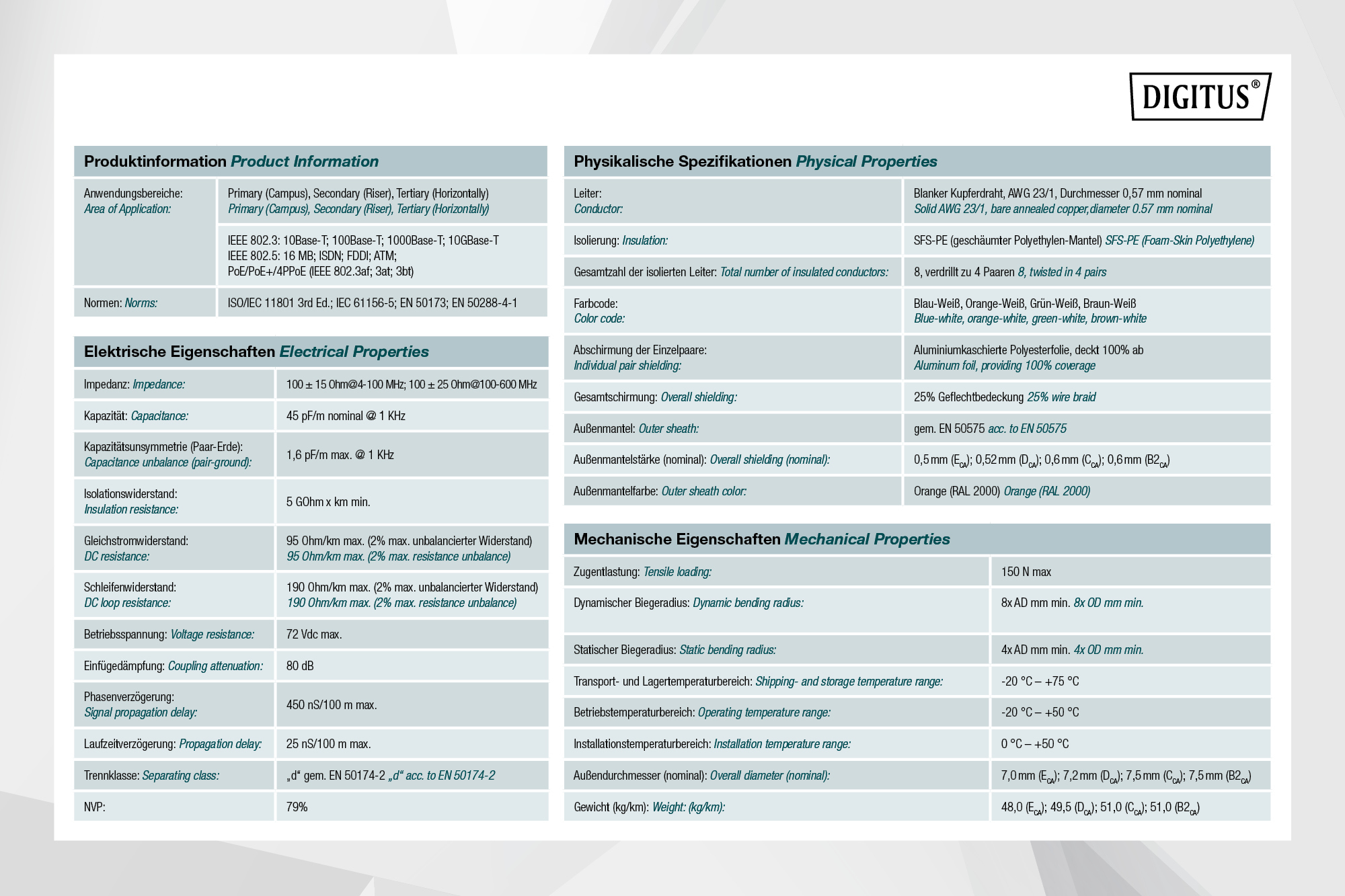

Technical details
Physical properties:
Conductor: Bare copper wire, AWG 23/1
System(s) of assessment and verification of constancy of performance: System 3
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
Overall shielding: copper braiding
Outer sheath: B2ca according to EN 50575; LSZH
Color: Orange (RAL 2008)
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to +60 °C
Operating temperature range: -20 °C to +50 °C
Installation temperature range: 0 °C to +50 °C
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 10 nS/100 m max.
Separation class: -d- according to EN 50174-2
NVP: 79%
Flame spread: EN EN 60332-1-2 (LSOH-PVC)
Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
Smoke density: EN 61034-2
Assortment: Twisted Pair Installation Cables
Category: CAT 7
Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: B2ca

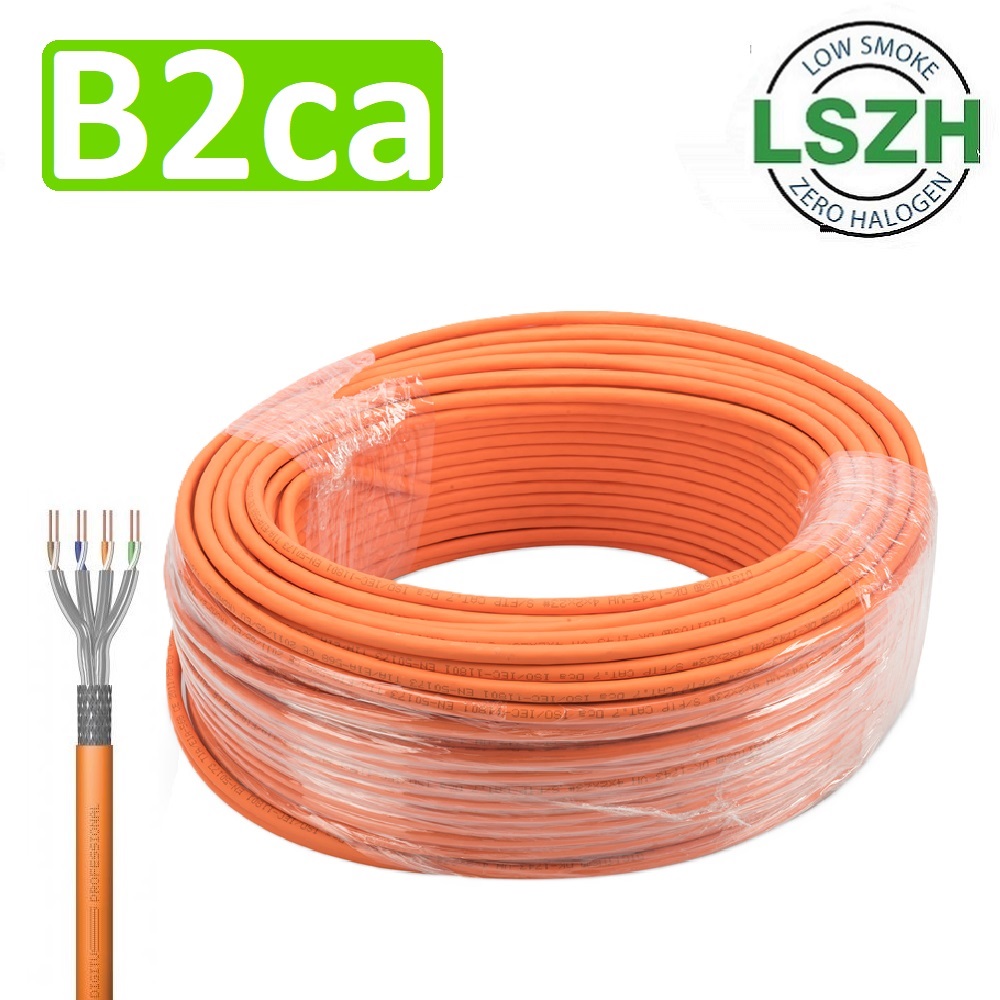

Length: 100 m
Color: orange
Jacket: LSOH
Structure: 4 x 2 AWG 23/1, solid twisted pair
