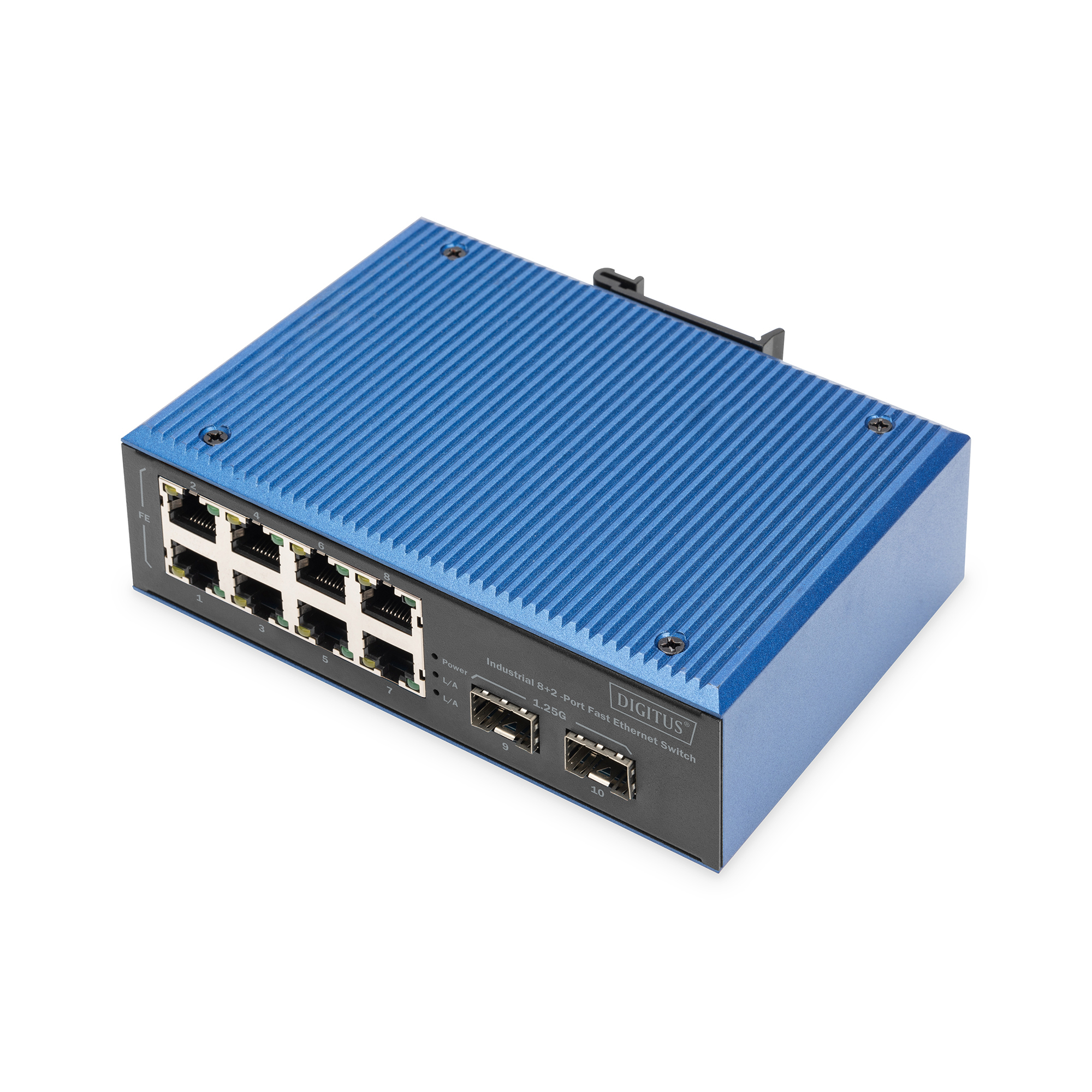

DIGITUS Industrial 8+2 port Fast Ethernet switch
Product number: DN-651146
EAN: 4016032490265
Industrial 8+2-Port Fast Ethernet Switch 8 Port FE RJ45, 2 GE SFP Ports

8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

Number of network connections: 8 port FE, 2 SFP GE ports
Transmission speed of the RJ45 network ports: 8 x 10/100 Mbit (RJ45)
Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)
Redundant power supply 12-48 V (DC)
Metal housing to IP40 standard
Simple mounting on a top-hat rail
Operating temperature from - 40° up to 80° C
Simple plug - play installation
ESD - EFT protection up to 6 kV (DC)
Ideal for connecting camera systems

DESCRIPTION
The DN-651146 is a robust 8+2 port Industrial Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

TECHNICAL DETAILS
Supports IEEE802.3x flow control, and backpressure
Supports store-and-forward technology for optimized data transmission
Automatic speed and half/full duplex detection/adjustment
Bandwidth: 5.6 Gbps
Packet buffer: : 1.2 Mbit
Packet forwarding size: 4.2 Mbps
Size of the MAC address table: 2K
Jumbo frame rate: 9000 byte
ESD protection: 6 kV (DC)
EFT protection: 6 kV (DC)
Metal housing, IP40
4 kV lightning protection and surge protection
Redundant power supply with reverse polarity protection function
Power supply: 12 to 48 V
Power consumption: - 8 W
Removable terminal connection
Protection class: IP40
Dimensions: 143.7 x 104 x 47.7 mm
Operating temperature: -40 to 80 ° C
Storage temperature: -40 to 80 ° C
Humidity: 5% to 95% (non-condensing)
MTBF: 300,000
