Overview:

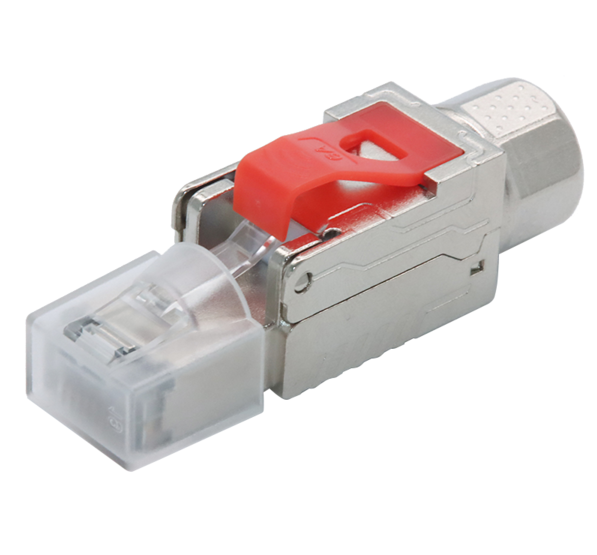

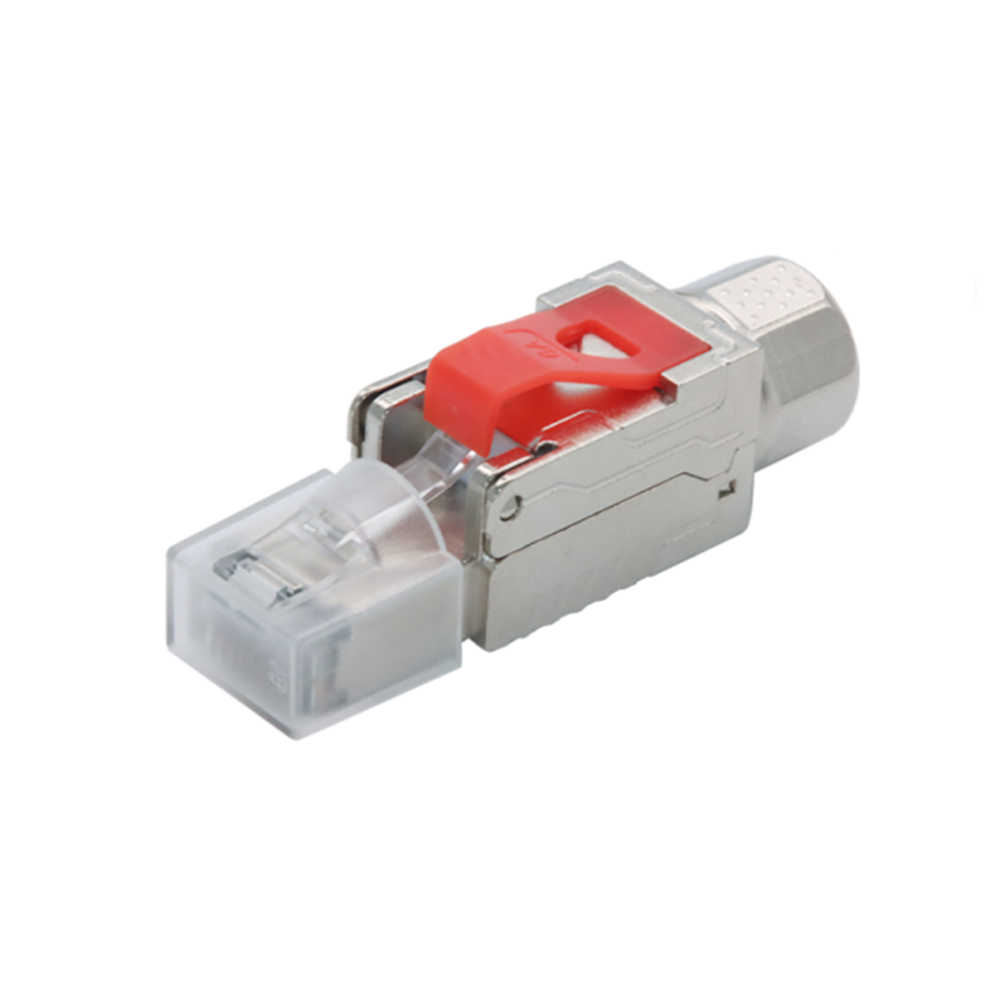

Premium zinc die cast housing field-terminated FastPLUG provides superior shielding and mitigates alien crosstalk, increases shielding and integrity. No crimping tools are required for easy assembly, perfectly designed for fast installation. Screw-on metal strain relief boot is convenient to install and disassemble, saving your time.

Features:

1, Slim - short design for high density cabling application.

2, 30% shorter than existing field terminated plug.

3, Tool-Free and easy installation. No crimping tools are required for easy assembly.

4, Premium zinc die-cast housing with superior shielding - mitigates alien crosstalk.

5, Suitable for 22AWG-24AWG shielded stranded and solid wire with outer diameter between 7.0mm-8.5mm.

6, 50u” gold plated contact for low signal losses and stable signal transmission.

7, Pass Fluke Channel test.

Specifications:


Detail


Overview:



Premium zinc die cast housing field-terminated FastPLUG provides superior shielding and mitigates alien crosstalk, increases shielding and integrity. No crimping tools are required for easy assembly, perfectly designed for fast installation. Screw-on metal strain relief boot is convenient to install and disassemble, saving your time.



Specifications:


Connector Type Category 7A RJ45 8P8C
Shielded Type Shielded
Cable Type Round, Shielded
Conductor Type Solid | Stranded
Positions/Loaded Contacts 8/8
Termination Type IDC
Contact Base Material Phosphor Bronze with Nickel Plated
Contact Plating Material 3 Prongs, Gold
Material Type Zinc die-casting
Plug Shield Plating Material Nickel
Mating Durability Mini. 750 Cycles
Wiring Scheme T568B/T568A
Fire Rated
UL 94-V0 PoE Compatibility PoE, PoE+, PoE++
Compatible Insulated Conductor Diameter, Maximum 1.6mm Compatible Insulated Conductor Diameter, Minimum 1.0mm
IDC Wire Gauge 22AWG-24AWG Package Type Blister
Product Compliance CE, RoHS, REACH, UKCA Packaging Quantity 10
Operating Temperature -20℃ to +60℃ Installation Temperature 0℃ to +50℃
Operating Humidity Range 0% to 90% RH, Non-Condensing Storage Humidity Range 0% to 90% RH, Non-Condensing
