PRODUCT INFORMATION
UCL SWIFT LCS-SM-UPC-20

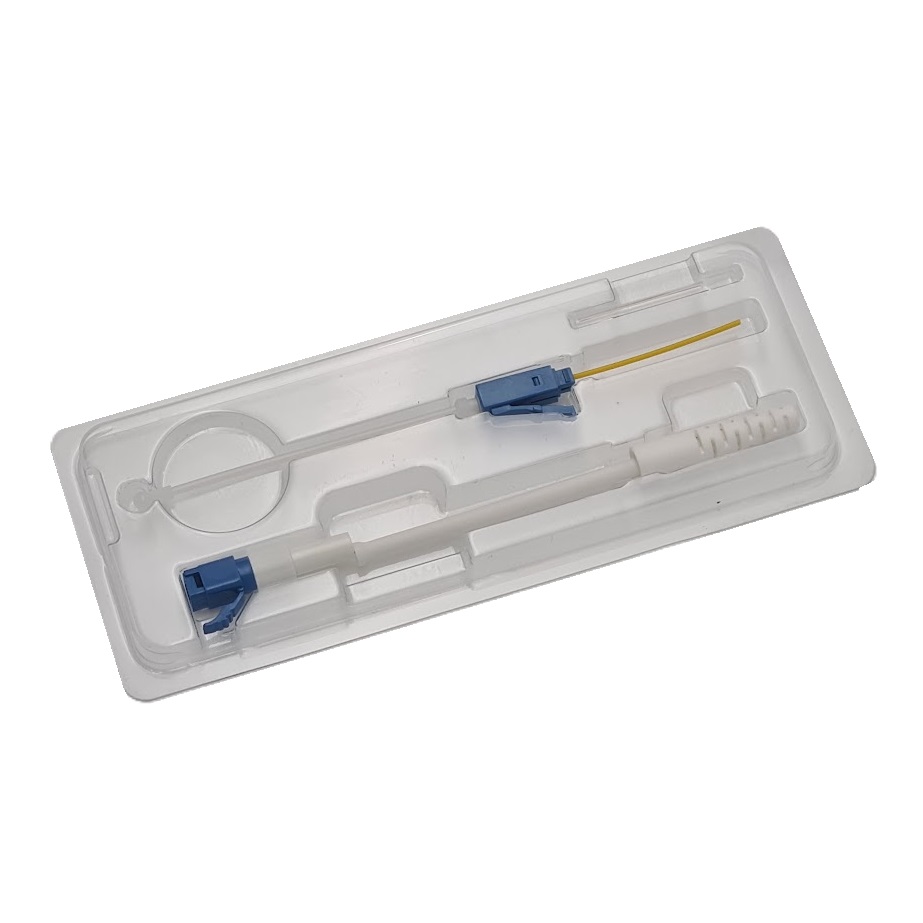

Splice On Connector, LC Simplex, SM, UPC, 2mm

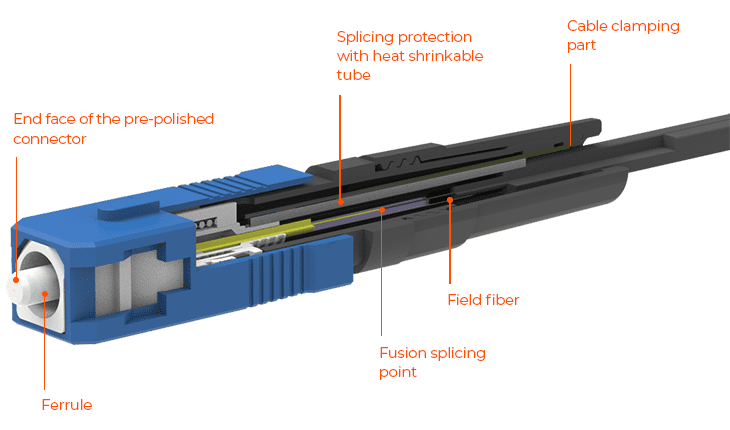

PROs Splice-on Connectors utilize a fiber fusion splicer to terminate fiber optic connectors in the field, addressing return loss concerns present in analog optical networks. Splice-on connectors feature factory pre-polished ferrules that eliminate the need for polishing and adhesives so they can be terminated in the field reducing the potential for operator error. The splice-on connector can be used not only in the field of communication but also in advanced technical fields including avionics, space, military, ship-building and power plants.


SPECIFICATIONS
Specifications LCS-SM-UPC-20
Connector Style LC
Diameter 2mm
Polish Type UPC
Repeating Operation Test 500 Cycle, ≤ 0.2dB
Insertion Loss ≤ average 0.2dB (≤ max 0.3dB)
Return Loss ≥50dB
Temperature Range -40°C~85°C
Fiber Singlemode 9/125
Tensile Strength - 40 for 0.9mm, 0.2mm fiber
