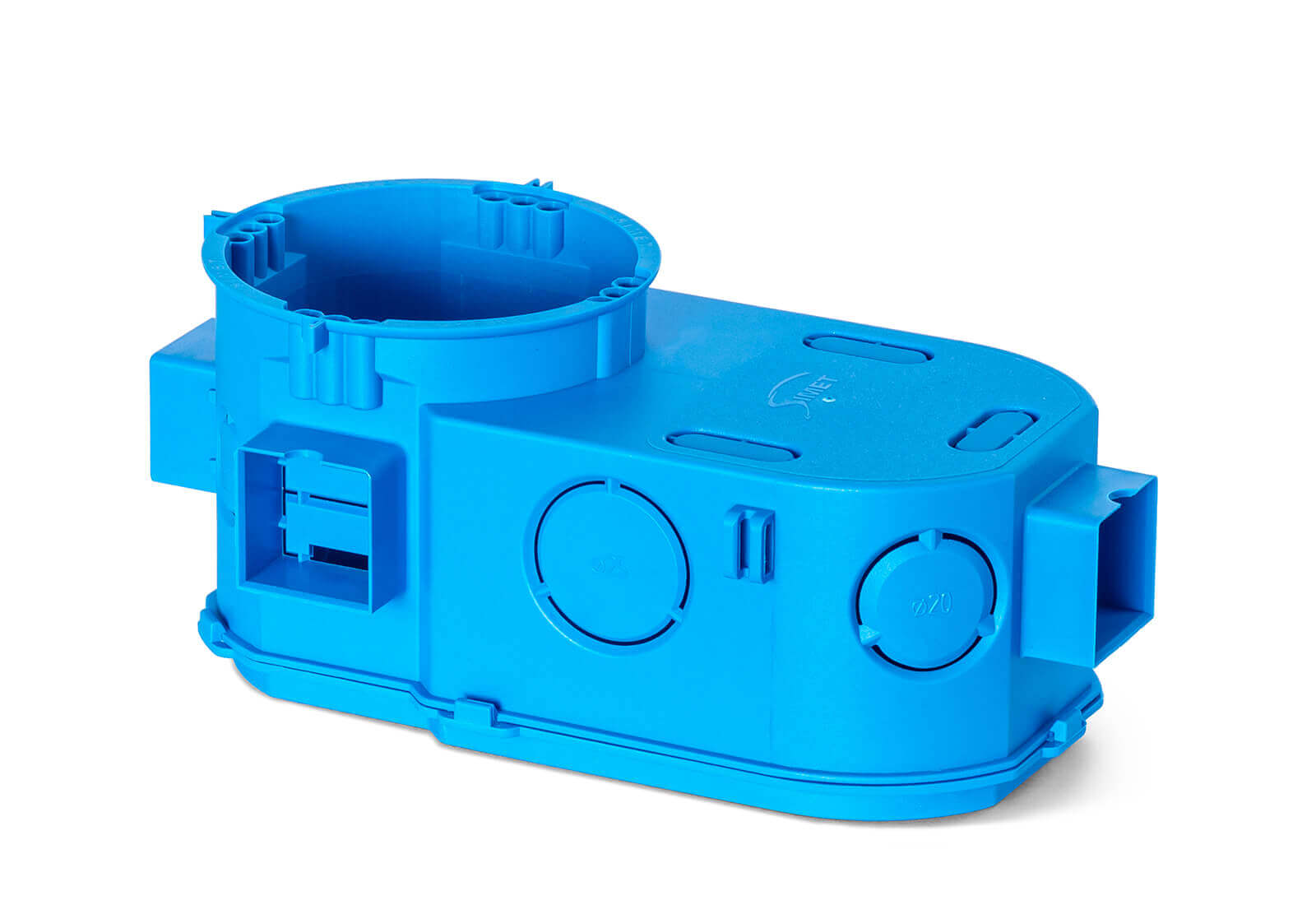

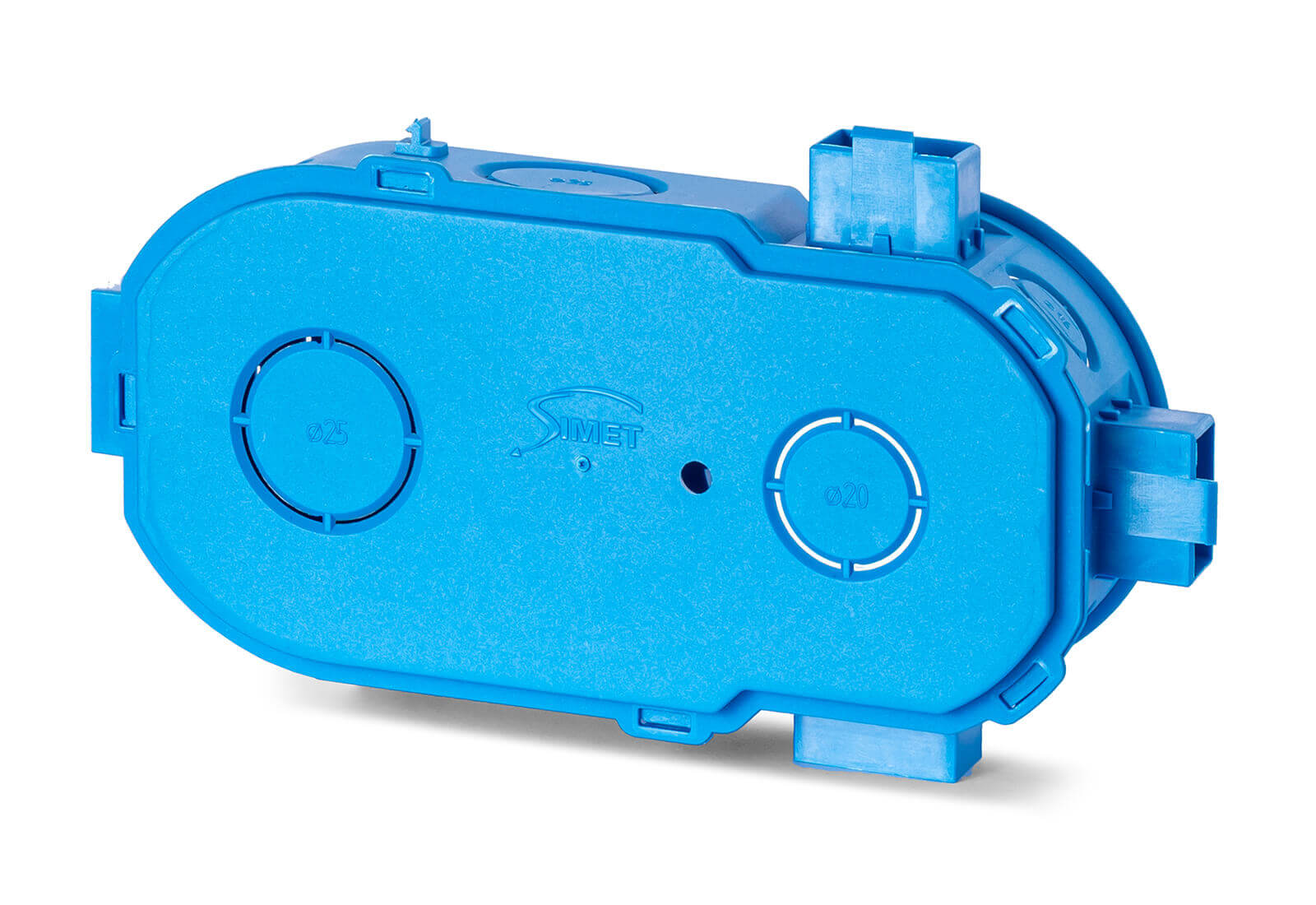

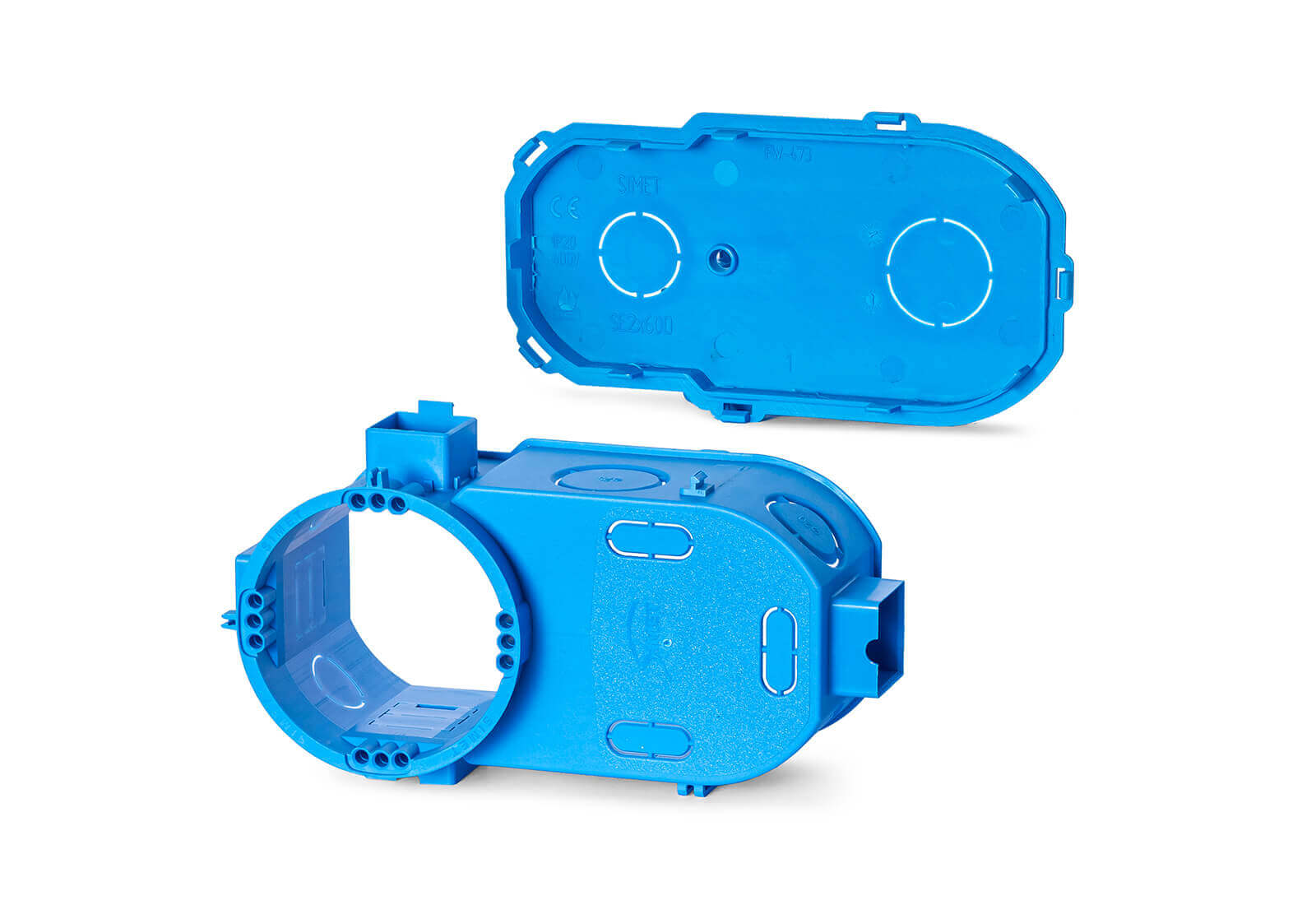

SE2x60D blue
Flush-mounted junction box 2×60 mm, deep, serial – for electronic parts

Cat. No.
34117203
EAN code
5907813212369
Name of item
SE2x60D blue
Qty.
10 pcs.

Colour blue

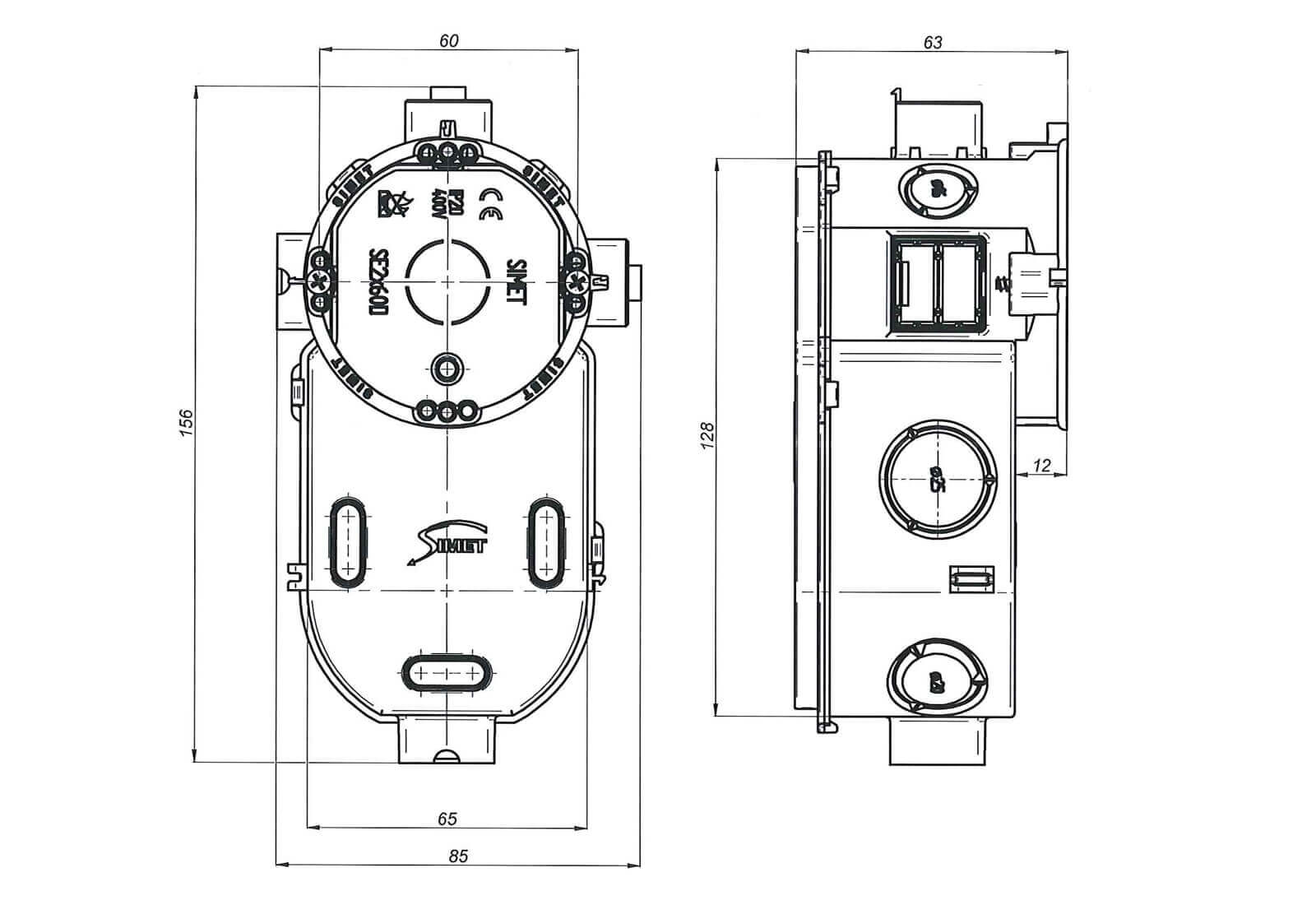

Spacing of fixing holes
60 mm
Width
65 mm
Length
128 mm
Depth
62 mm
Height
63 mm
Material
polyamide PA 6
Material properties
halogen-free / self-extinguishing
Additional features
serial
Resistance to heat
960 °C
Flammability class
UL94 V0
Protection class
IP20
Rated voltage
400 V
Max rated cross-section
2.5 mm²
Operating temperature
-5 °C...+35 °C
