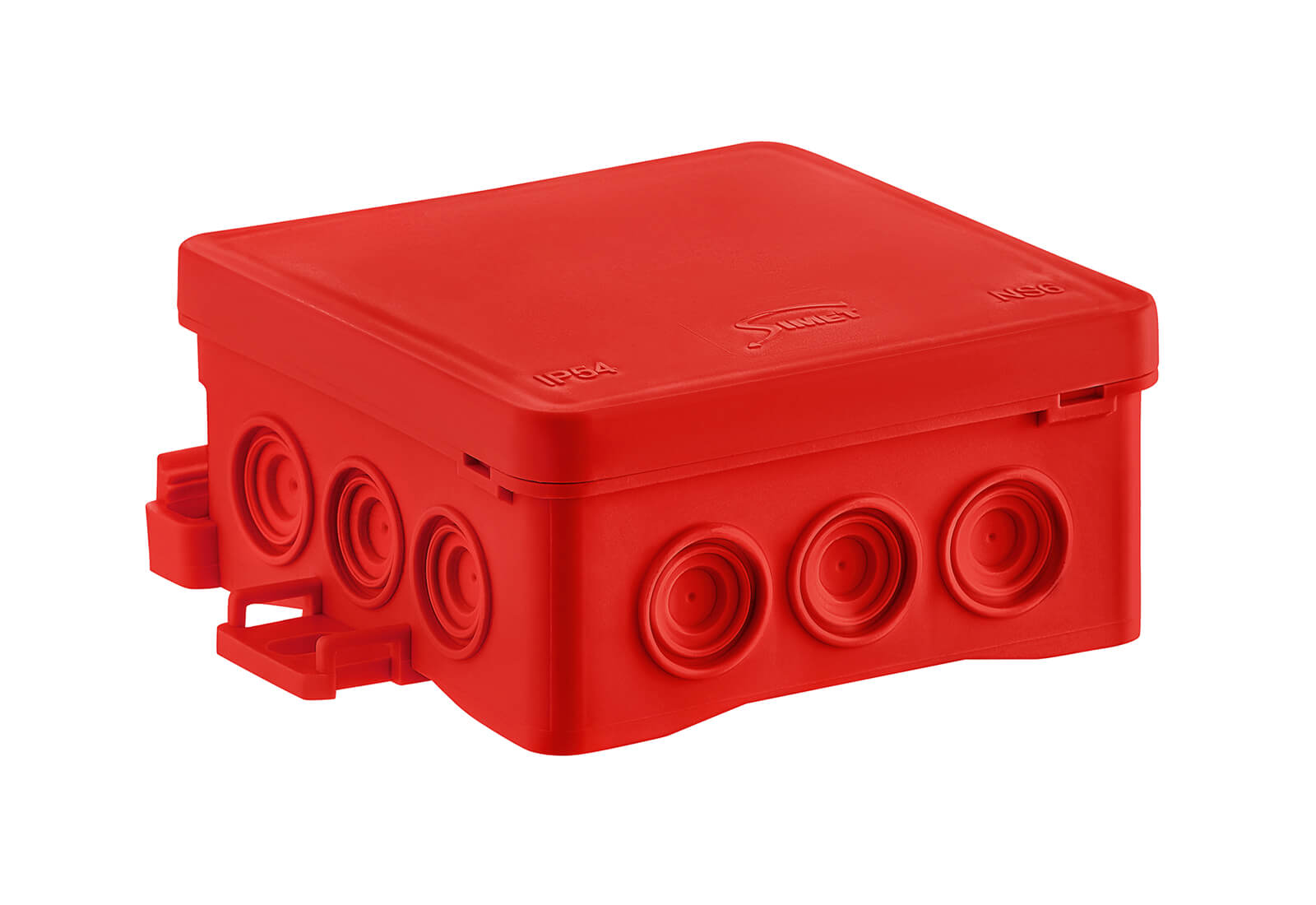

NS6 red
Surface junction box with the capability for mounting using HNS hooks 85x85x40 mm, IP54

Catalogue number
35346101
EAN code
5907813235320
Name of item
NS6 red
Collective packaging
30 pcs.

Colour
red

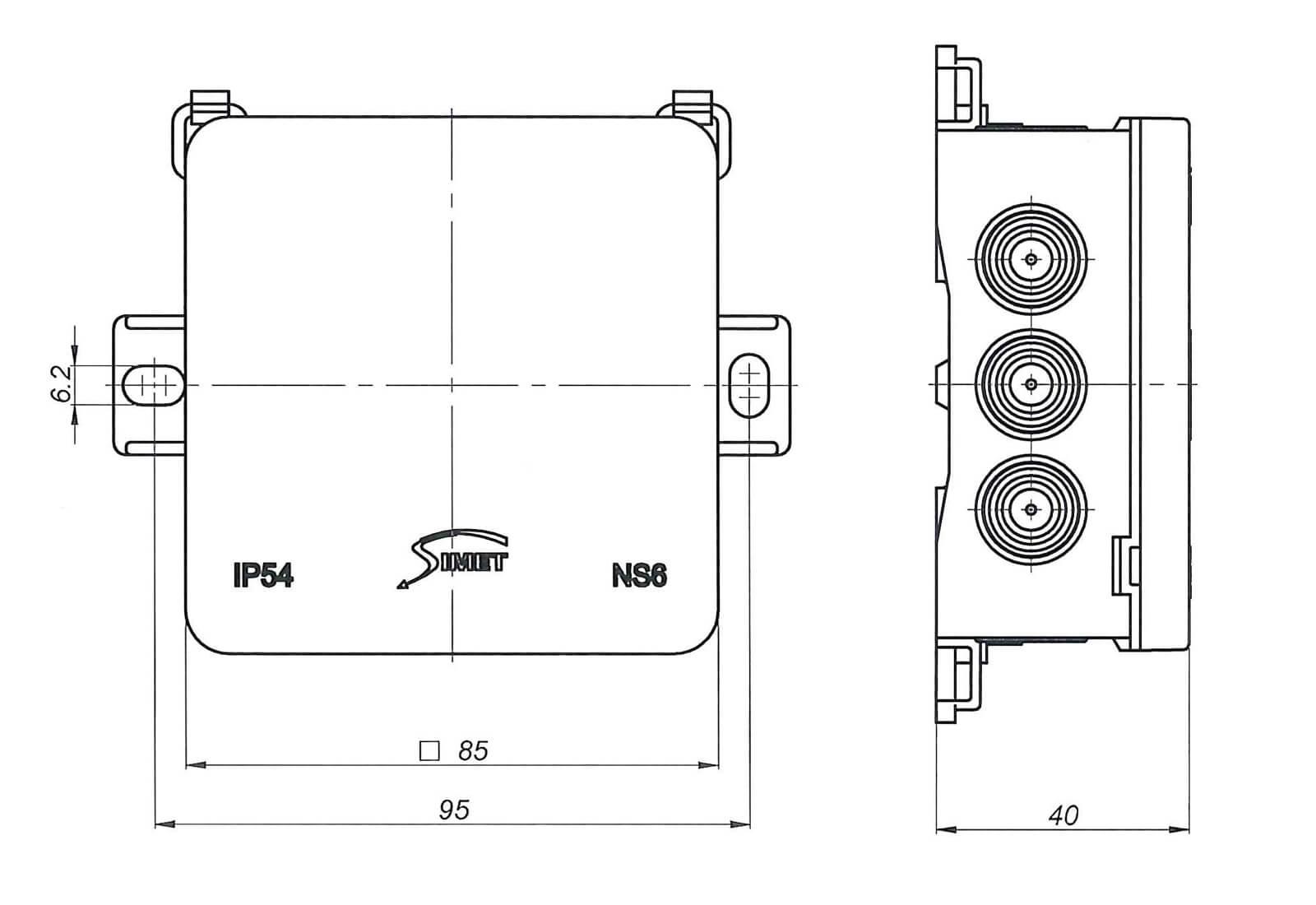

Width
85 mm
Length
85 mm
Height
40 mm
Material
cover - polipropylene / body - polyethylene
Material properties
halogen-free / self-extinguishing / resistance to UV radiation
Resistance to heat
650 °C
Protection class
IP54
Mounting

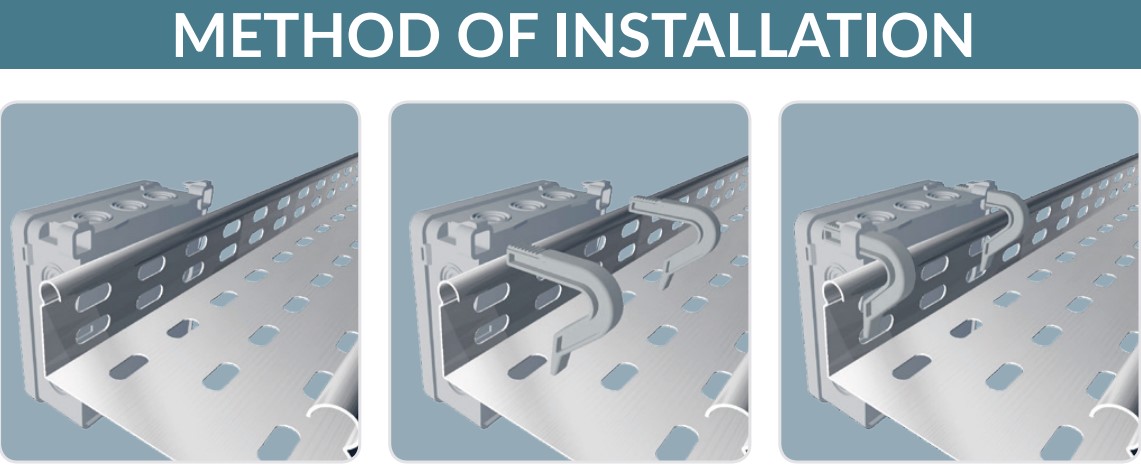

On cable tray using HNS hooks. Mounting with the use of bands or Ø 6mm scews.
Rated voltage
400 V
Max rated cross-section
2.5 mm²
Operating temperature
-5 °C...+35 °C
Additional information
12 knockouts ⌀16
