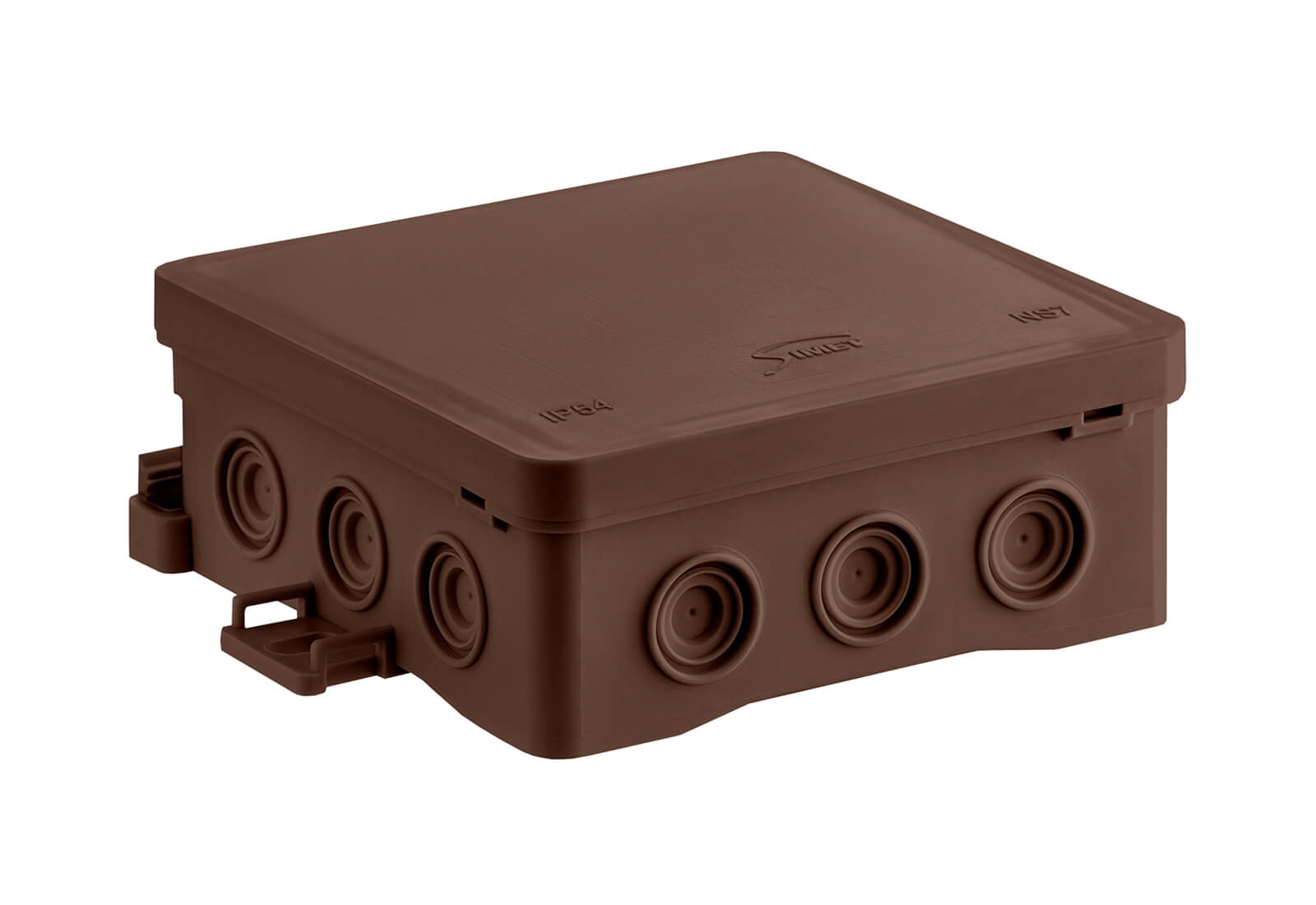

NS7 brown
Surface junction box with the capability for mounting using HNS hooks 100x100x40 mm, IP54

Catalogue number
35349115
EAN code
5907813235108
Name of item
NS7 brown
Collective packaging
20 pcs.

Colour
brown

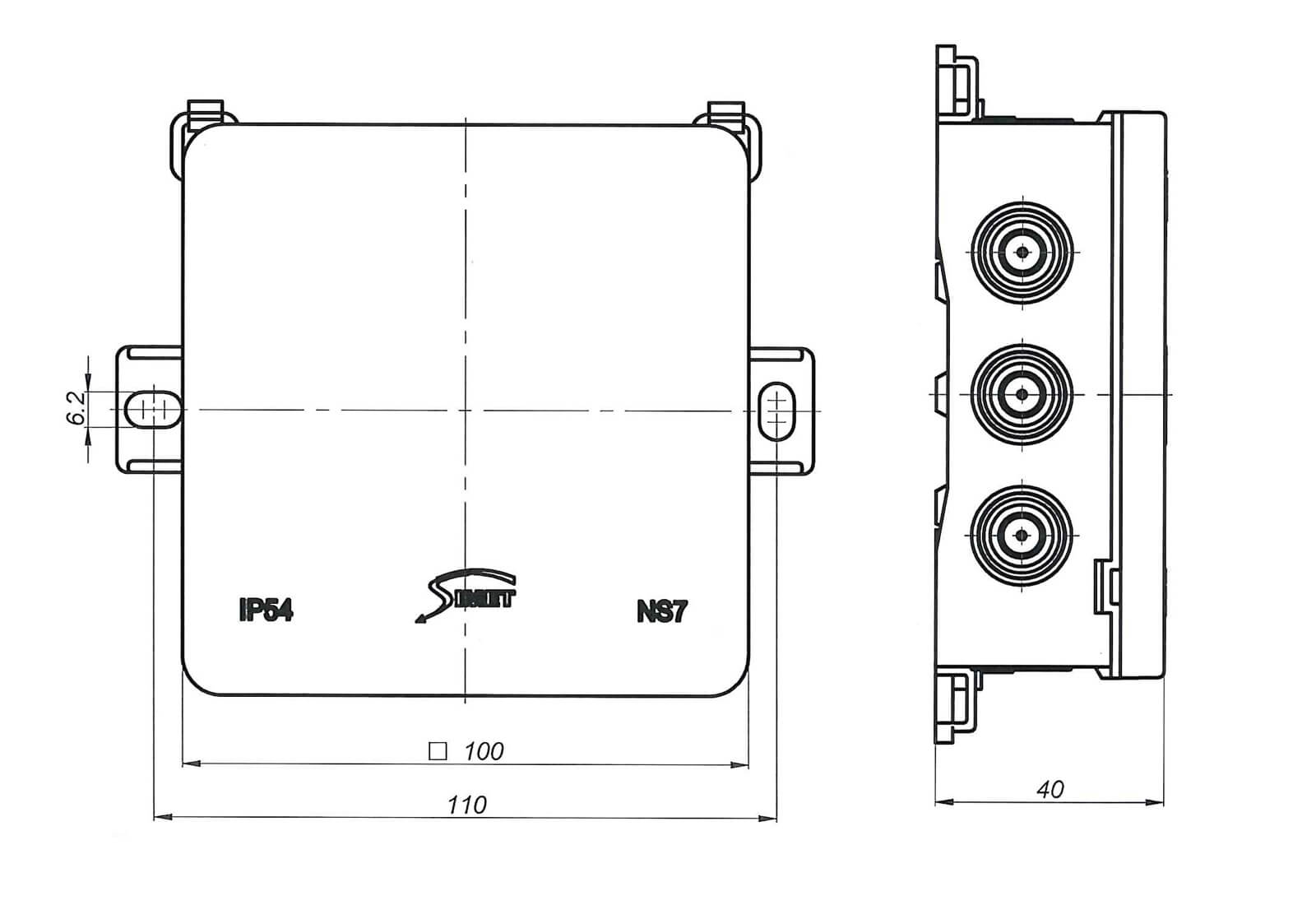

Width
100 mm
Length
100 mm
Height
40 mm
Material
cover - polipropylene / body - polyethylene
Material properties
halogen-free / self-extinguishing / resistance to UV radiation
Resistance to heat
650 °C
Protection class
IP54
Mounting

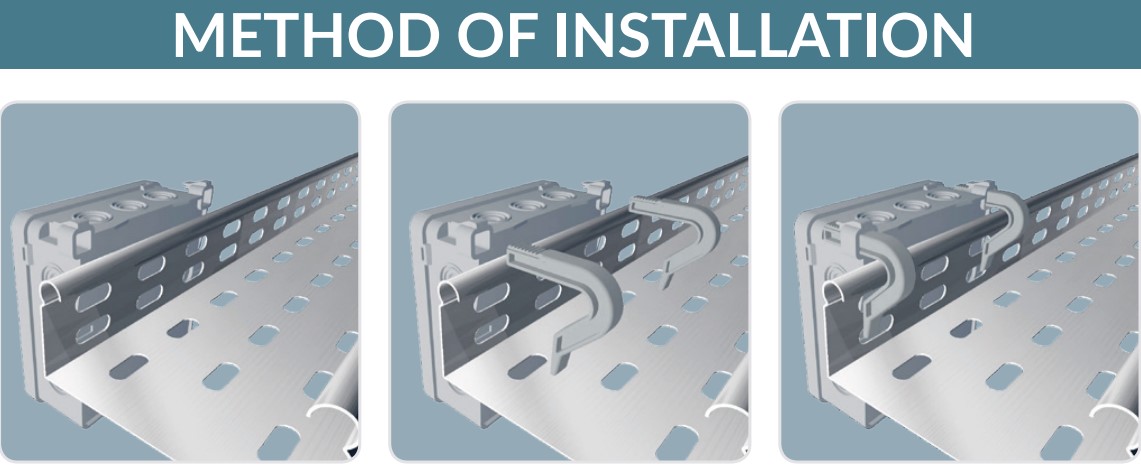

On cable tray using HNS hooks. Mounting with the use of bands or Ø 6mm scews.
Rated voltage
400 V
Max rated cross-section
2.5 mm²
Operating temperature
5 °C...+35 °C
Additional information
12 knockouts ⌀16
