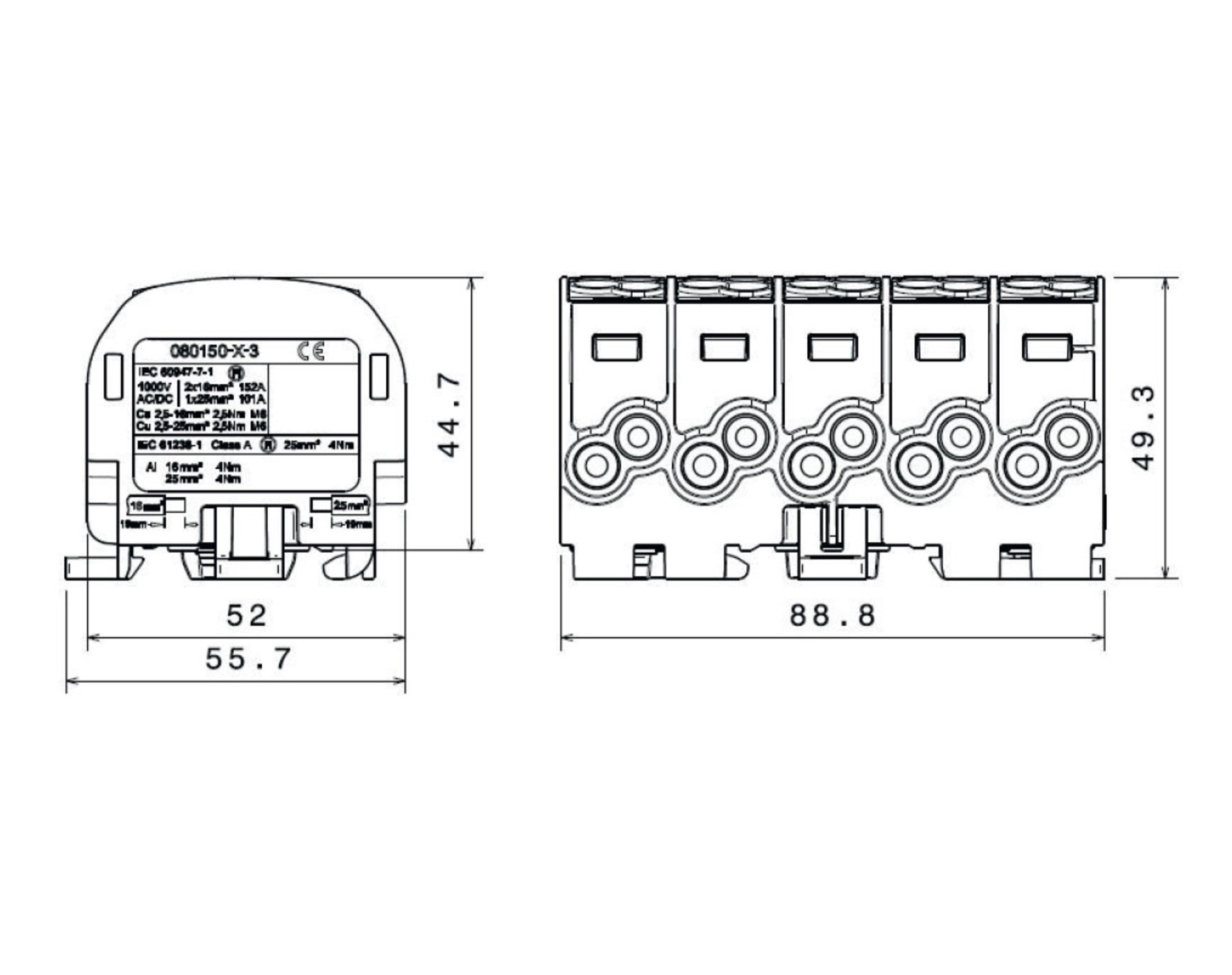

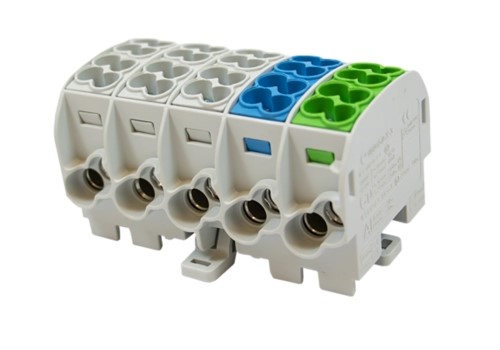

Product description SCB 25-5X Distribution block - branch Al/Cu 80150 SIMBLOCK gray/no/zie Cat. No.: 81500020 Oz. commercial: SCB 25-5X EAN code: 5907813232893 Color: Grey/Blue/Green Unit of measurement: pcs. Op. collective: 1 Width: 88.8mm Height: 49.3mm Length: 55.7mm Rated voltage: 1000V AC/DC Rated current Cu: 152 A (2 x 16 mm²) / 101 A (1 x 25 mm²) Rated current Al: 100 A (1 x 25 mm²) Input (wire): 2 x (2.5 - 25) mm² Input (rope with sleeve): 2 x (1.5 - 16) mm² Number of poles: 5 Installation: TS 35 rail - Vertical / Horizontal Compliance with standards: IEC 60947-7-1 Compliance with directives: RoHS Output (wire): 2 x (2.5 - 16) mm² Output (cord with sleeve): 2 x (1.5 - 10) mm²
