Product description

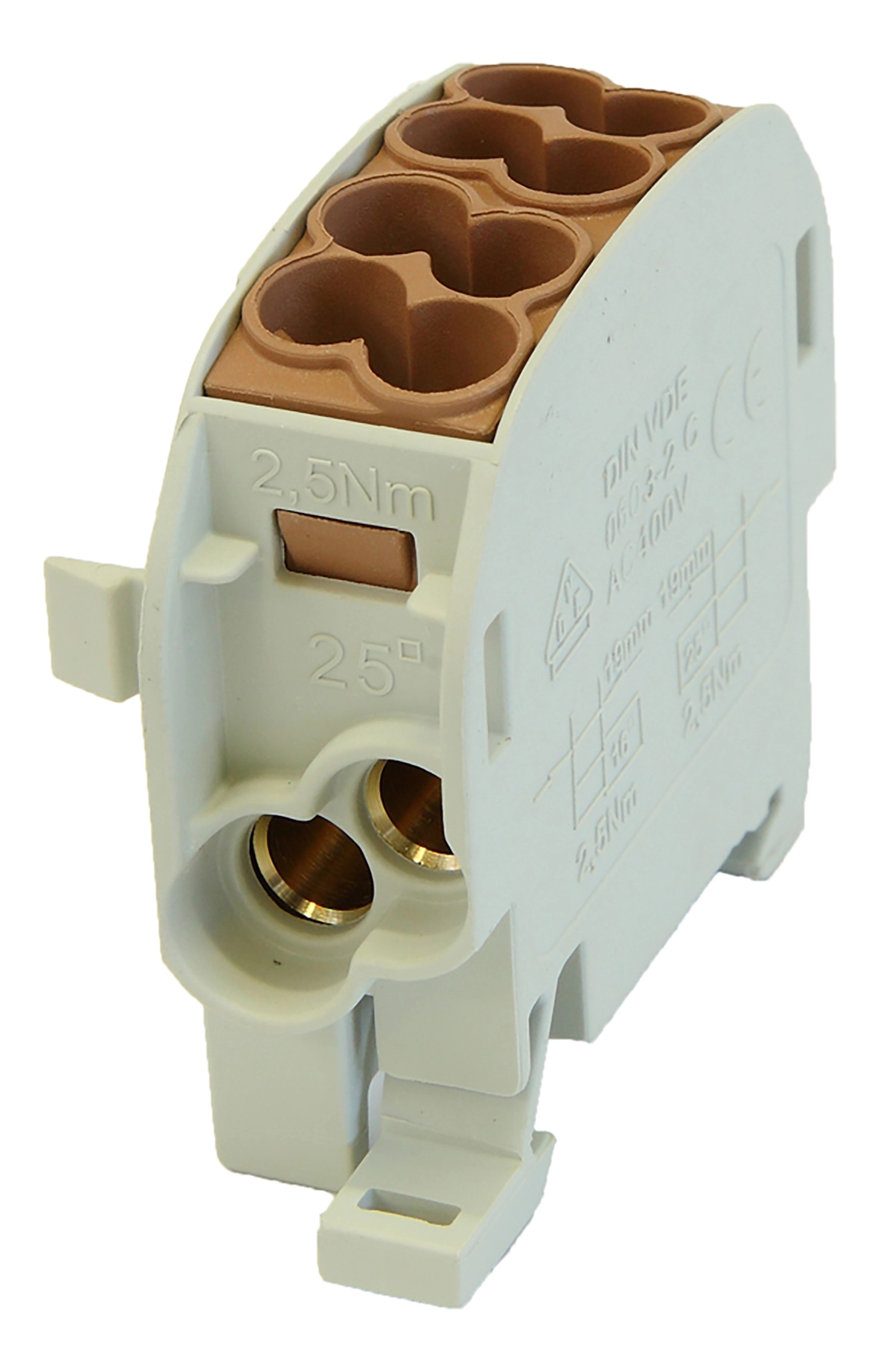

SCB 25 Distribution block - branch Al/Cu 80110 SIMBLOCK brown
Product parameters
Cat. No.:
81501015
Oz. commercial:
SCB 25
EAN code:
5907813233869
Color:
Brown
Unit of measurement:
pcs.
Op. collective:
1

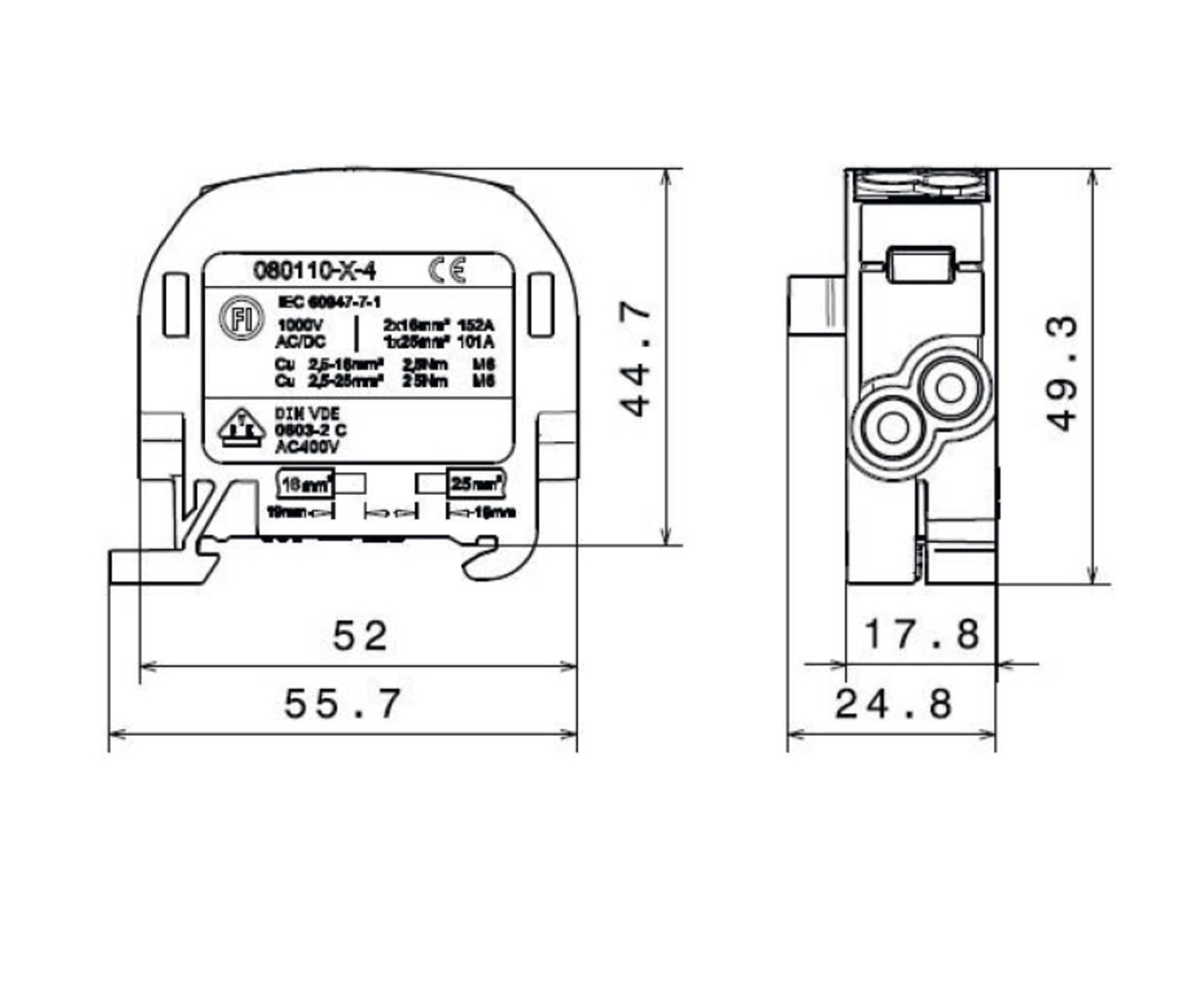

Width:
24.8mm
Height:
49.3mm
Length:
55.7mm
Rated voltage:
1000V AC/DC
Rated current Cu:
152 A (2 x 16 mm²) / 101 A (1 x 25 mm²)
Rated current Al:
100 A (1 x 25 mm²)
Input (wire):
2 x (2.5 - 25) mm²
Input (rope with sleeve):
2 x (1.5 - 16) mm²
Number of poles:
1
Installation:
TS 35 rail - Level
Compliance with standards:
IEC 60947-7-1
Compliance with directives:
RoHS
Module width:
17.8mm
Output (wire):
2 x (2.5 - 16) mm²
Output (cord with sleeve):
2 x (1.5 - 10) mm²
