Product description
F/UTP cat.6 ALANTEC Cables, manufactured, tested and verified to the ISO/IEC 11801 2nd Edition, EN 50173:2007 and ANSI/TIA/EIA-568-B.2 standards for enhanced performance Category 6 cables.
All parameters have been verified by INTERTEK.

Each cable consists of 8 colour coded polyethelene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant LSOH or PVC material. The printing detail on the sheath, includes the cables part number, specification details and a unique 305 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box. A choice of jacket colour enables departmental or application identification where necessary.
Cables have a positive transmission performance up to 450 Mhz.
We support technology PoE (Power over Ethernet).

CONSTRUCTION AND ELECTRICAL

Category: 6
Class: E (250MHz)
Twisted element: 4x2x23AWG
Conductor: 100% Cu - bare copper wire AWG 23/1
Insulation: polyethylene
Fire euroclass: Eca

Screen: Yes. Polyester film coated with a layer of aluminum placed inside a metal layer, the earth wire screen of tinned copper wire diameter min. 0,4mm
Jacket: These pairs, together with a strong nylon rip cord are jacketed in a heat resistant LSOH FRNC material
PoE: 802.3 af
Color: Light gray

ELECTRICAL PROPERTIES at 20ºC

Conductor DC Resistance: ≤ 95 Ω /km
Changing resistance: ≤ 2%
Insulation resistance (500V): ≥ 5000 MΩ *km
Mutual Capacitance at 800 Hz: nom. 48 nF/km
Changing capacitance passive resistance: ≤ 1500 pF/km
Characteristic impedance (1-100MHz): (100 ± 15) Ω
Nominal Velocity of Propagation (NVP): 69%
Delay spread: Nominal ≤ 535 ns/100m
Angle spread: Nominal ≤ 20 ns/100m
Tester installation DC, 1 min.: 1000 V
MECHANICAL PROPERTIES

Bend Radius: 4 x overall diameter
Max. pulling force: 80 N
Temperature range - work: -30°C do + 50°C
Temperature range - instalation: 0°C do + 50°C
Outer diameter: 7,3 mm
Weight / km: 51 kg

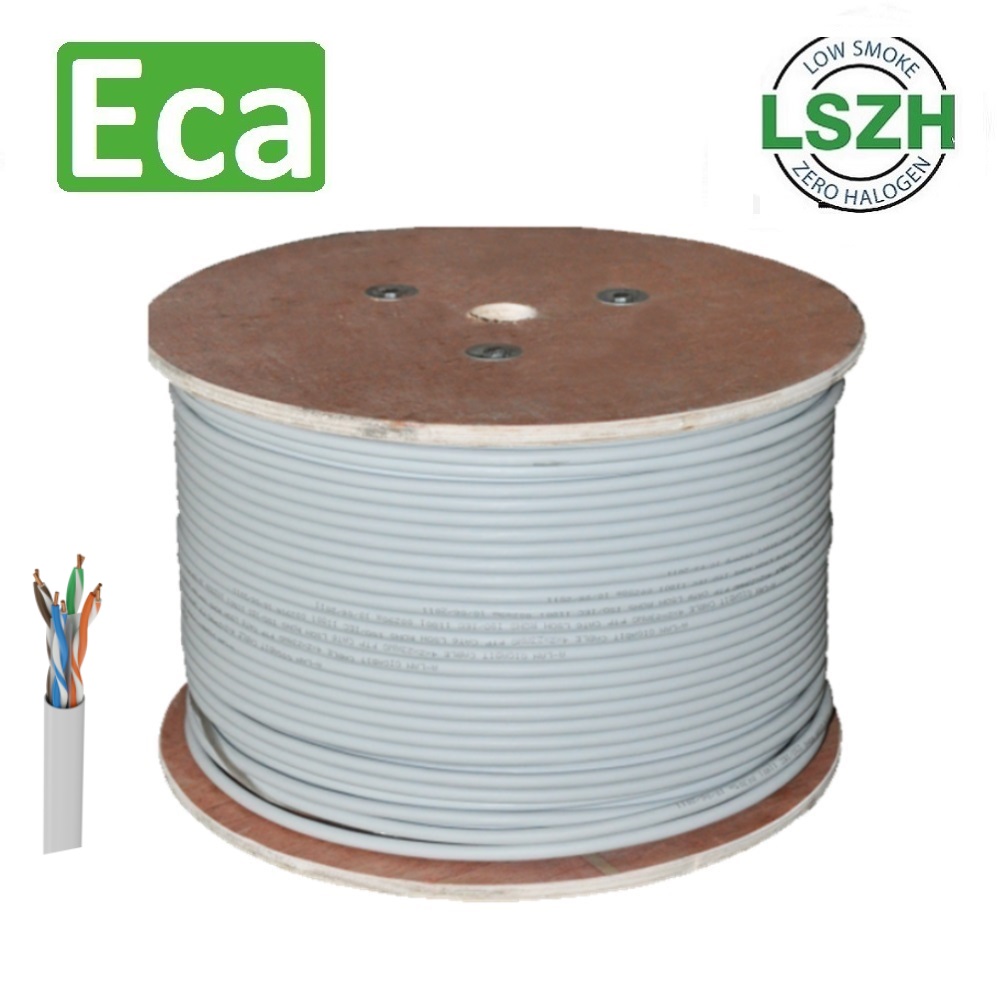

Packing: roll (305m)
Euroclass » Eca
Euroclass » Eca
Flammable insulated cable meeting the criteria of Euroclass Eca in accordance with EN 50575:2014 + A1:2016 and Regulation (EU) No. 305/2011 of the European Parliament and of the Council of March 9, 2011. (Construction Products Regulation or CPR)

The cables are tested in accordance with EN 60332-1-2.

Eca-class cables find their application in single-family dwellings, outbuildings, garages and structures without specific safety requirements.
