START Panel Eco 600x600 3200lm 830
EAN number 5410288446233

Product overview
Product name START Panel Eco 600x600 3200lm 830
Technology LED
Cap/Base N/A
Housing Steel
Mount Ceiling recessed mounting, Suspended
General application Education, Office
ETIM Class EC002892
Fixture luminous flux (lm) 3200
Luminaire efficacy (lm/W) 110
Correlated colour temperature (k) 3000
Light colour Warm White
CRI (Ra) 80
Colour Variation Initial (SDCM) SDCM5
Beam Angle (°) 110
Glare control - 22
Photobiological Risk Group RG0
Total power consumption (W) 29
Electrical protection Class II
Control gear type LED driver constant current
Dimmable No
Dimming method N/A
LED Flickering Rate Ultra low (5% or less)
Housing colour RAL 9003 - Signal white
IP rating IP40/20
IK rating IK02
Lifespan L70 B50 100000
Warranty 3 years

Product features

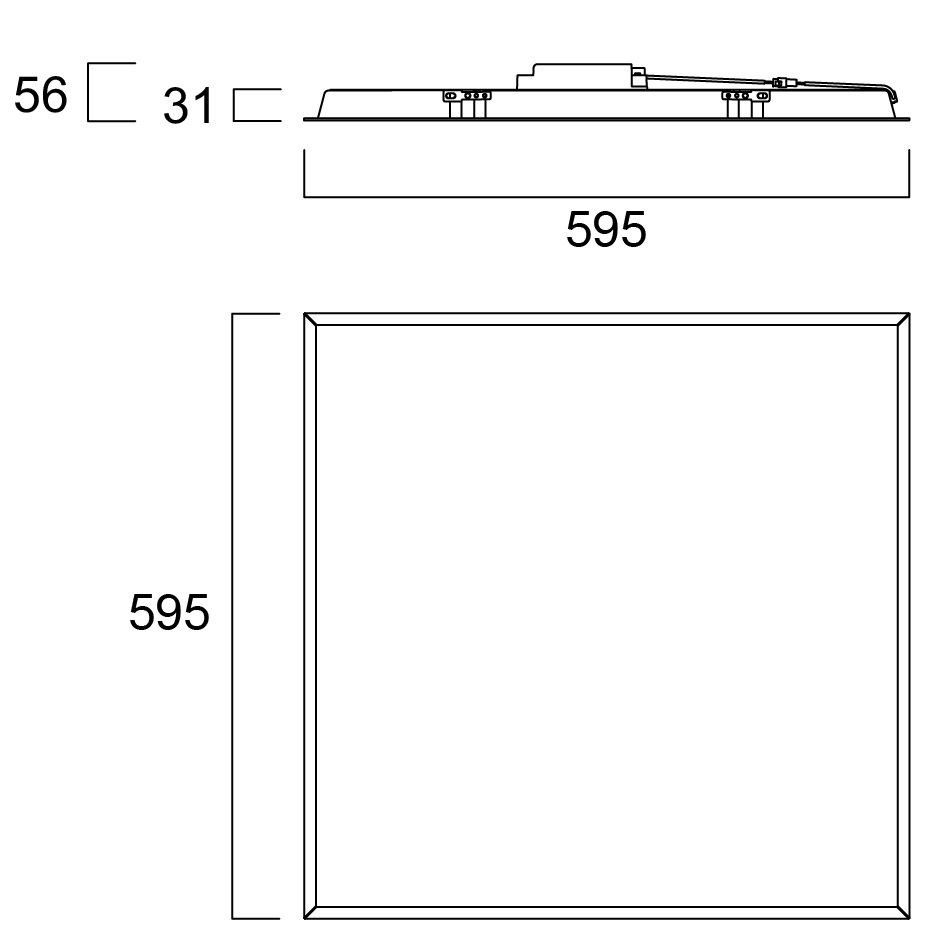

LED Panel with backlit technology, ideal for general indoor lighting applications such as breakout areas, offices and meeting rooms. Low glaring UGR-22. RG0, 110 degree beam angle , optical system: PS diffuser with Opal finish. Tp(b) rated diffuser that may not burn at a speed of more than 50mm per minute. Light color temperature: 3000K Warm White, total system power: 29W , total fixture output: 3200lm, efficacy: 110lm/W, Ra80 typical, LED chromacity: 5 step MacAdam ellipse (SDCM5), lifespan: 100,000 hours at 70% of the original output (L70B50), IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, low flicker, non dimmable driver, electrical protection: Class II. Degree of Protection: IP40/IP20, suitable for indoor environment only. Nominal size: 595x595x31mm, Loop in / loop out wiring, saftey cables - quick connector included, 31mm nominal height, White color frame, weight: 1,52kg.
