DL 06-165/T-EN54 STR
Quick installation
Impact-resistant housing
LED strobe light

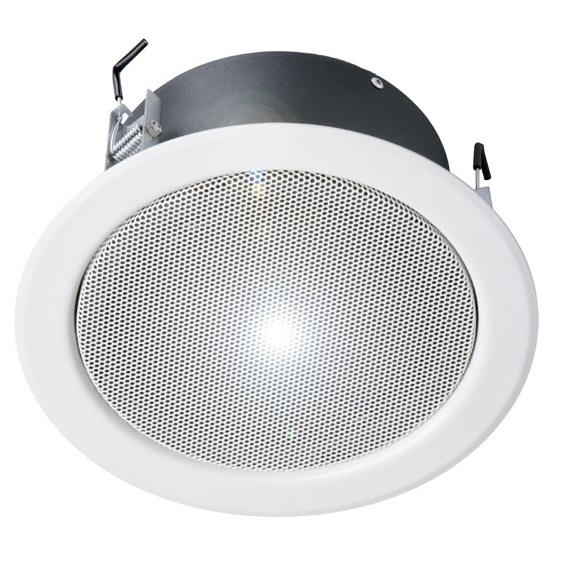

Ceiling-mounted loudspeaker with metal fire bowl for voice alarms, certified according to EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 6W loudspeaker is equipped with a 165mm broadband speaker chassis and a 100V transformer with three power settings. The loudspeaker also features a strobe light, which, in a new version with 14 candelas, delivers almost three times the brightness. This high-performance white LED delivers 1,400 lux at a distance of 100mm and a flashing frequency of 75 flashes per minute. With 18 lumens of light and a wide beam angle (75°), the strobe light provides bright and even area illumination. The strobe lights operating voltage is 24 VDC. Maximum current consumption: 9 mA.

The plastic-coated metal construction with a perforated grille cover in RAL 9010 guarantees lasting stability. The integrated 2-pole ceramic terminal and thermal fuse, as well as the moisture-proofing of the speaker chassis, ensure additional operational reliability.

The speaker is also protected against the risks of environmental influences with protection class IP 21C. Quick and easy installation is achieved using a spring-loaded snap fastener with a short clamping stroke. The connecting cables can be fed to the speaker via a rubber grommet in the fire bowl.

The speaker also complies with British Standard BS 5839, Part 8.

Custom painting of the speaker in a 4-digit RAL or NCS color is available for an additional charge. The fire bowl is included with the speaker.

This speaker is suitable for ceiling thicknesses of approximately 2-45 mm. Our information primarily applies to solid ceilings; for soft ceiling materials, greater ceiling thicknesses may be necessary. Thicker cables and other fixtures may also sometimes lead to changes in the relevant parameters. Given the wide variety of materials and manufacturers, we recommend installing a sample in the intended ceiling material to achieve optimal results.
