DL-AB 06-200/T-EN54
Quick mounting
Highest reliability
BS 5839

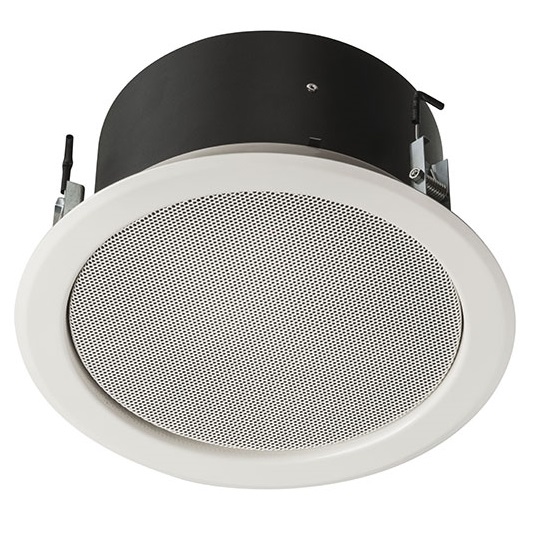

A/B-line Ceiling speaker with metal firedome for Voice Alarm applications, certified according to EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The DL-AB 06-200/T-EN54 is designed with two independent speakers and 100V transformers to enable an economic operation of two separate speaker lines (A/B lines) for the highest security demands. In case of a failure of one speaker line, the redundancy of the speakers and the transformers will guarantee unimpaired function. The speaker is also compliant with the British Standard BS 5839, Part 8.

The 2x6W powered speaker is equipped with two full-range loudspeakers and two 100V transformers with 3 power adjustments, each. The powder-coated metal version with perforated grid cover in RAL 9010 guarantees lasting stability. For additional safety, a 2-pin ceramic connector block, and thermal fuses are provided and the speaker chassis are impregnated against dampness. Protection class IP 55 secures the speaker against the impact of environmental influences.

Quick and easy mounting with spring clamps and short tension distance. The connecting cables can be supplied by 4 rubber grommets in the fire dome. Special paint of the speaker in 4-digit RAL- or NCS- colour is available at extra cost. The fire dome is included in the delivery.

This speaker is suitable for a ceiling strength of about 10-45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes in the appropriate setup. With regard to the variety of materials and manufacturers, we recommend building a sample of the speaker to match the requirements accurately.
