DL-E-AB 06-100/T-EN54 safe
High sound pressure level
Low mounting depth
Quick mounting

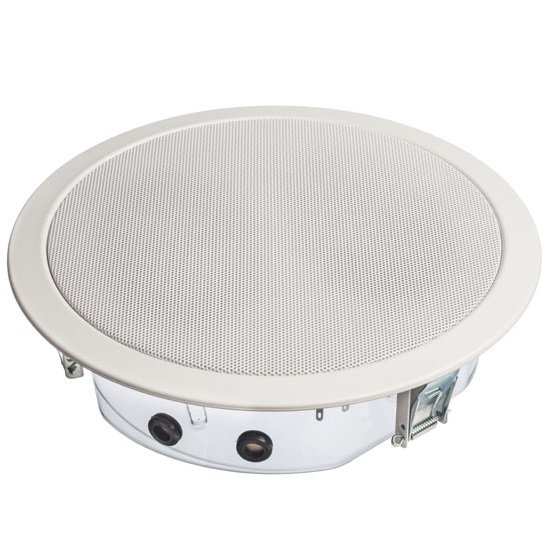

A/B-line Ceiling speaker with plastic contact protection for Voice Alarm applications, certified according to EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

A/B-line ceiling speaker with high-quality plastic contact protection for voice alarm applications, EN 54-24 certified, suitable for voice announcements and background music with excellent sound quality in buildings.

The 2x6W powered speaker is equipped with two full-range loudspeakers and two 100V transformers with 3 power adjustments, each. An extremely flat construction method allows a low mounting depth. For additional safety, ceramic blocks, and thermal fuses are provided and the speaker chassis is impregnated against dampness. Protection class IP 21C secures the speaker against the impact of environmental influences.

Quick and easy mounting with spring clamps and short tension distance. Perfectly suitable for installations where the installation depth is very limited. This speaker is suitable for a ceiling strength of 3-45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes in the appropriate setup. With regard to the variety of materials and manufacturers, we recommend building a sample of the speaker to match the requirements accurately.
