DL 06-165/T-EN54W
quick mounting
shock-resistant housing
WAGO 221 connector

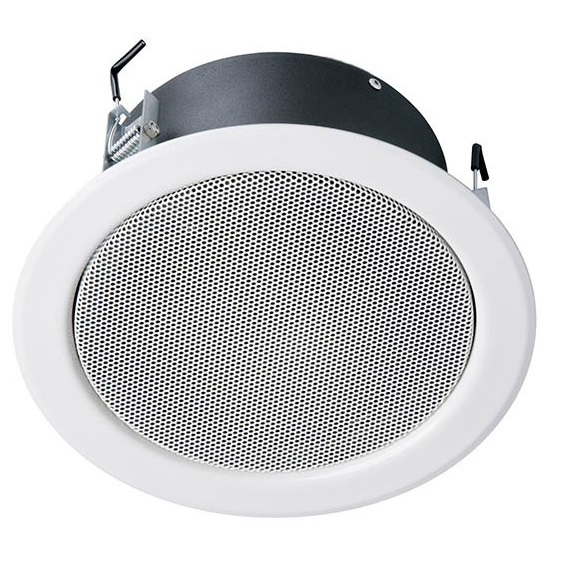

Ceiling speaker with metal fire dome for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 6W powered speaker is equipped with a 165mm full-range loudspeaker chassis and a 100V transformer with 3 power adjustments. The powder-coated metal similar to RAL 9010 guarantees long-term stability. For additional reliability, the speaker chassis are impregnated against wetness. Fast and easy installation by WAGO 221 connector.

The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Quick and easy mounting with spring clamps and short tension distance. The connecting cables can be supplied by rubber grommets in the fire dome.

Special paint of the speaker in 4-digit RAL- or NCS-colour is available at extra cost.

The fire dome is included in the delivery.

This speaker is suitable for a ceiling strength of about 2-45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes in the appropriate setup. With regard to the variety of materials and manufacturers, we recommend building a sample of the speaker to match the requirements accurately.
