DL-E 06-130/T-EN54-C
high sound pressure level
low mounting depth
antistatic plastic contact protection

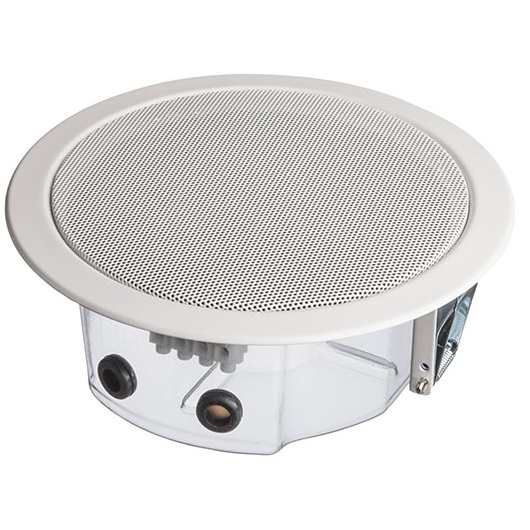

Ceiling speaker with high quality PET-plastic contact protection for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 6W powered speaker is equipped with a 130mm full-range loudspeaker, a 100V transformer with 3 power adjustments and a DC blocking capacitor (1µF, 250V). The powder-coated metal version in RAL 9016 guarantees lasting stability. Thanks to an innovative airflow system, the DL-E provides sound characteristics which are attributed to a conventional bass speaker. An extremely flat construction method allows a low mounting depth of only 70mm, with less than 1 kg product weight. For additional reliability, the speaker is impregnated against wetness.

The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Quick and easy mounting with spring clamps and short tension distance. Perfectly suitable for installations where the installation depth is very limited.

Special paint of the speaker in 4-digit RAL- or NCS-colour is available at extra cost.

The innovative PET-plastic contact protection is included in the delivery and protected by a European patent (publication no. 2768238).

This speaker is suitable for a ceiling strength of about 3-45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes in the appropriate setup. With regard to the variety of materials and manufacturers, we recommend building a sample of the speaker to match the requirements accurately.
