DL-SE 10-200/T-EN54
frameless design
also suitable for very thin ceilings
WAGO connector 221
DL-SE 10-200/T-EN54

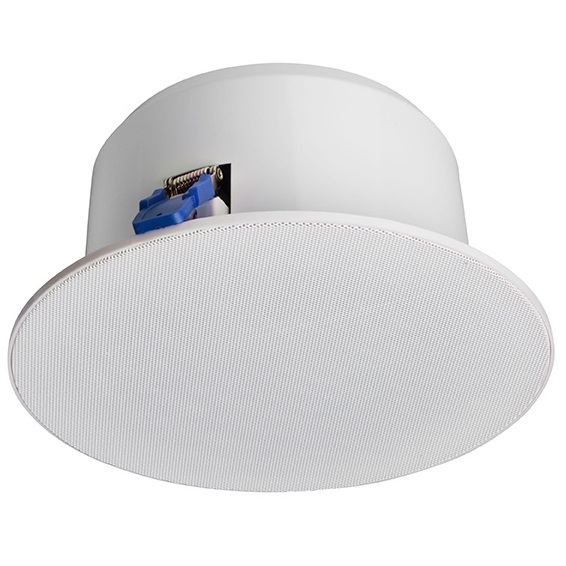

Design ceiling speaker with metal firedome for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The frameless design of the new ceiling speakers is inspired by current LED lights and already has the makings of a classic. The 10W powered speaker is equipped with a 200mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder-coated metal housing in RAL 9016 guarantees long-term stability. For additional reliability, the speaker is impregnated against wetness.

The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Fast and easy installation through WAGO 221 connector and strong spring clamps with protective caps for vibration damping. The connecting cables can be supplied through rubber grommets in the fire dome.

Special paint of the speaker in 4-digit RAL or NCS- colour is available at extra cost. The fire dome is included in the delivery.

This speaker is suitable for a ceiling strength of approx. 1-45 mm. Our specification is primarily related to solid ceilings. An increase in the ceiling depth could be necessary for ceilings with softer materials. Stronger cables and other fittings may also result in changes to the general setup. With regard to the variety of materials and manufacturers, we recommend installing a speaker sample in the ceiling first to define the exact requirements.
