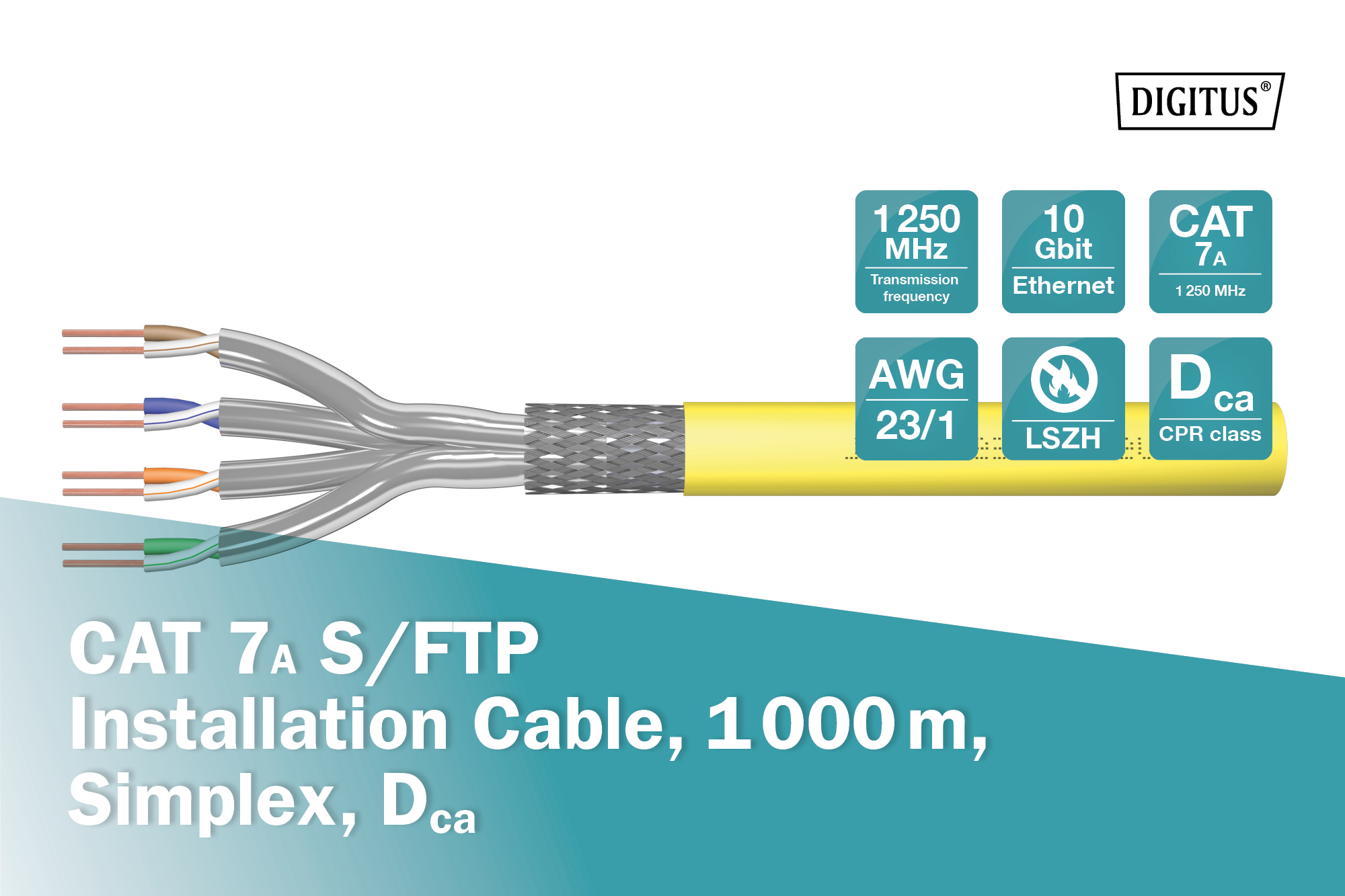

DIGITUS CAT 7A S-FTP installation cable, 1000 m, simplex, Dca-s1a d1 a1
Product number: DK-1743-A-VH-10-LD
EAN: 4016032455387

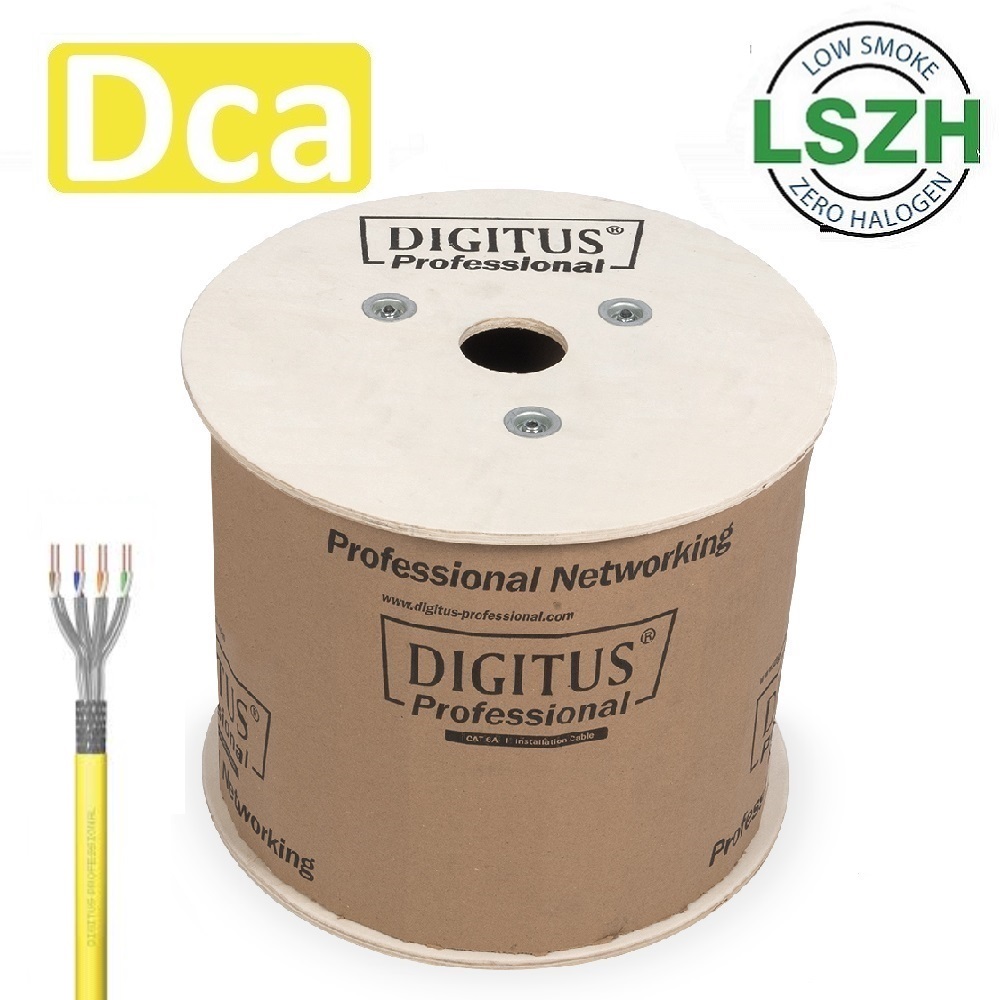

CAT 7A S-FTP installation cable, 1250 MHz Dca, AWG 23/1, 1000 m drum, simplex, color yellow

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1250 MHz transmission frequency
Permanent link certified
PoE, PoE + , Power over Ethernet support
CPR class Dca-s1a d1 a1

Description
The Digitus CAT 7A installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

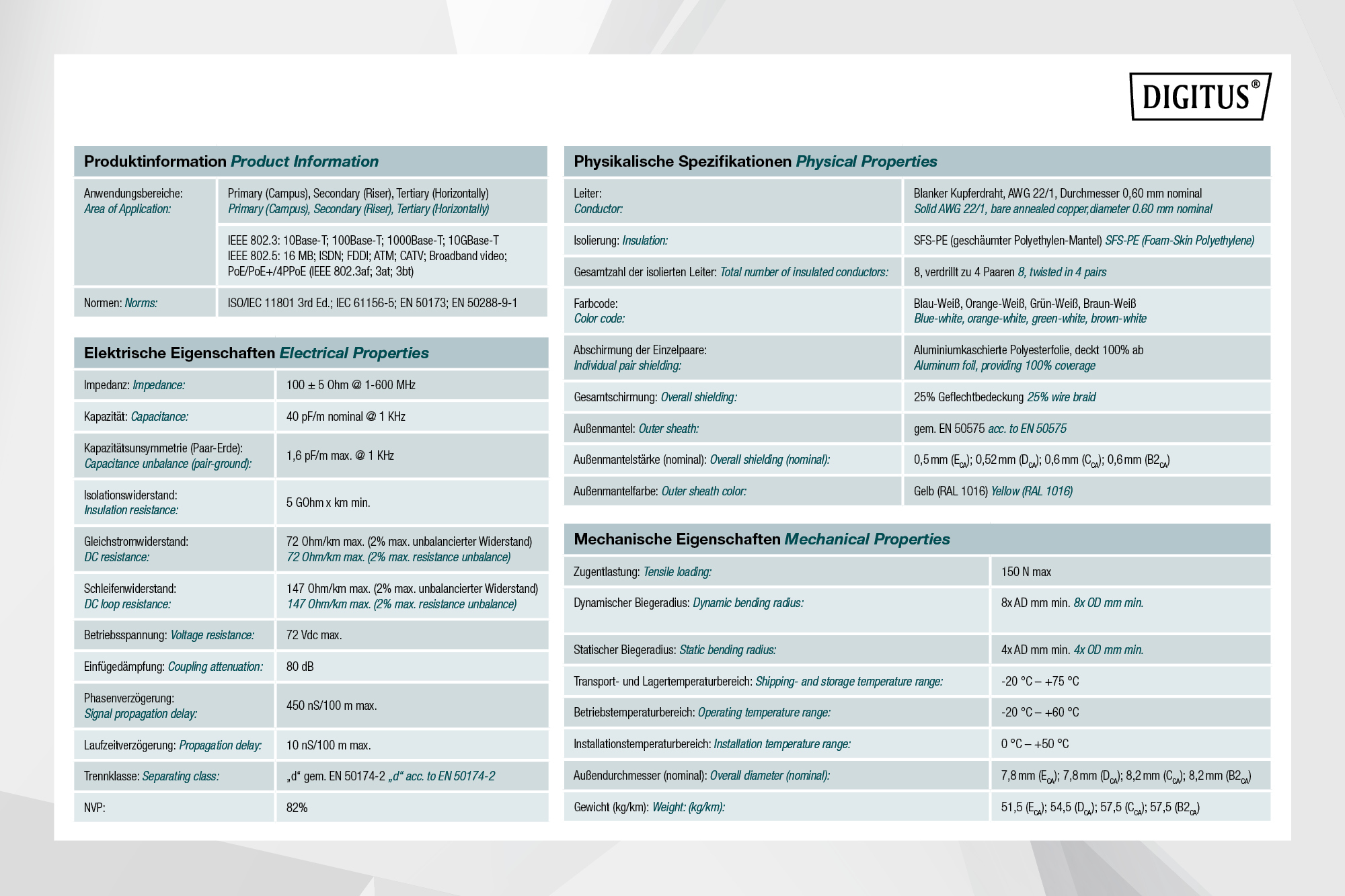

Technical details
Physical properties:
Conductor: Bare annealed copper, solid AWG 23/1
System/s of AVCP: AVCP 3
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper tinned braid
Outer sheath: Dca-s1a d1 a1 acc. EN 50575; LSZH
Outer sheath diameter (nominal): 0,60 mm (Dca); 0,60 mm (Cca)
Outer sheath color: Yellow (RAL 1028)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60°C
Operating temperature range: -20 °C up to +60 °C
Temperature installation range: 0°C to +50°C
Overall diameter Simplex (nominal): 7,8 mm (Dca); 7,8 mm (Cca)
Weight (kg/km): 65 kg (Dca); 65 kg (Cca)
Electrical properties:
Impedance: 100±5 Ohm @ 1-1250 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
Flame spread: EN 60332-1-2 (LSOH-PVC)
Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
Smoke density EN 61034-2
Assortment: Twisted Pair Installation Cables
Category: CAT 7A

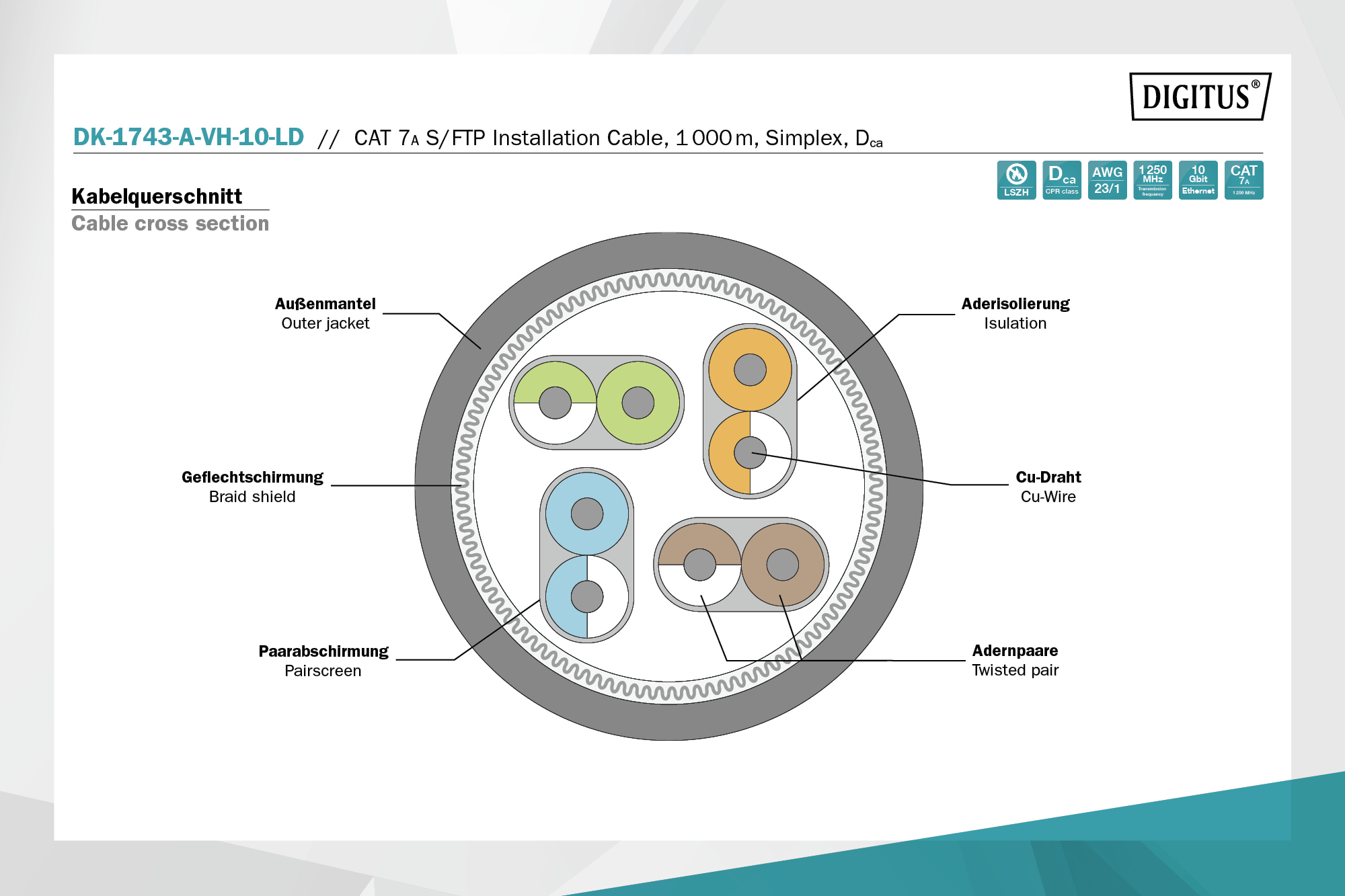

Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: Dca
Length: 1000 m
Color: yellow
Jacket: LSOH
Structure: 4 x 2 AWG 23/1, solid twisted pair
