START Highbay IP65 10000-20000lm 2CCT WB
Start Highbay Multipower
EAN: 5410288394435
Order code: 0039443

Product features

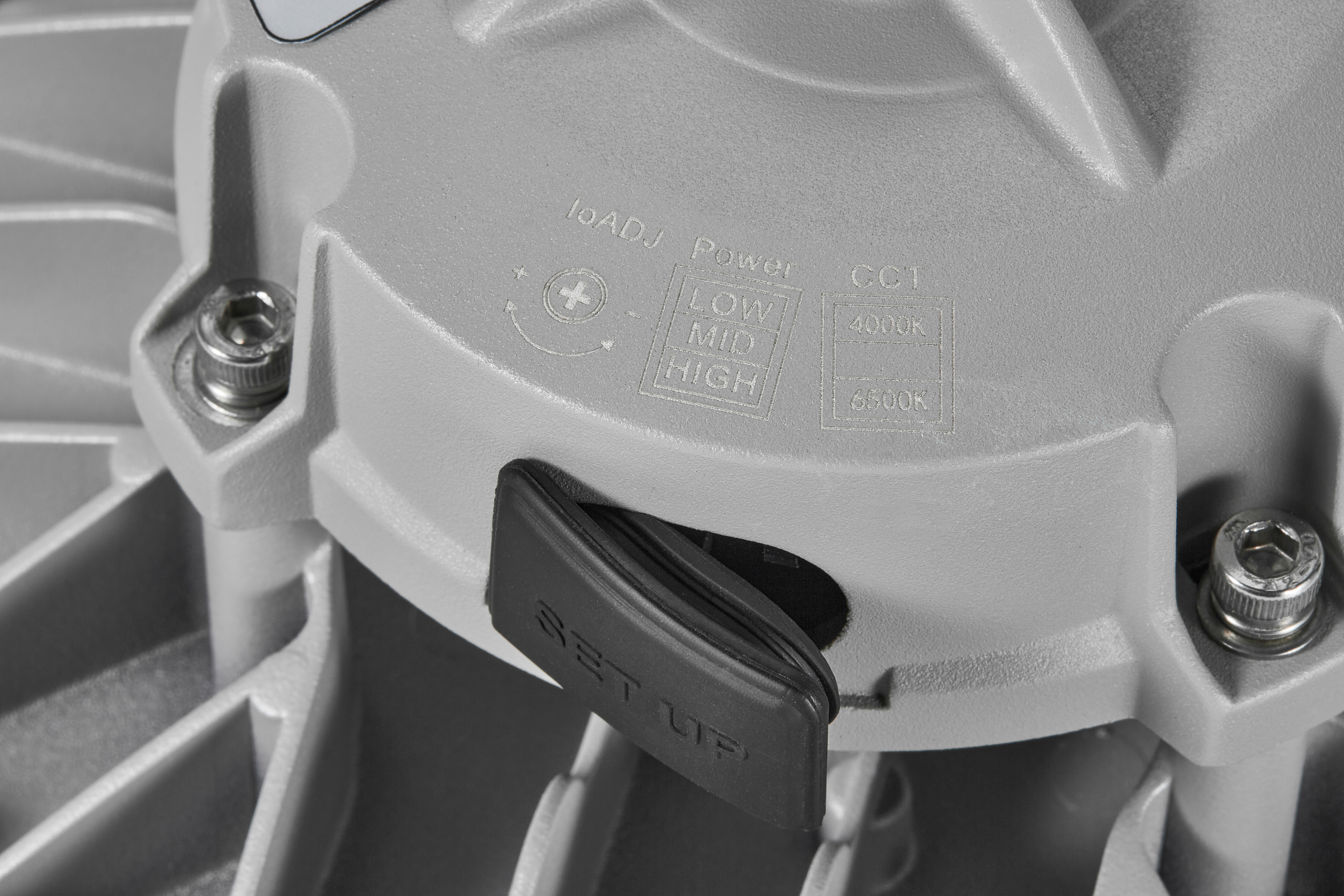

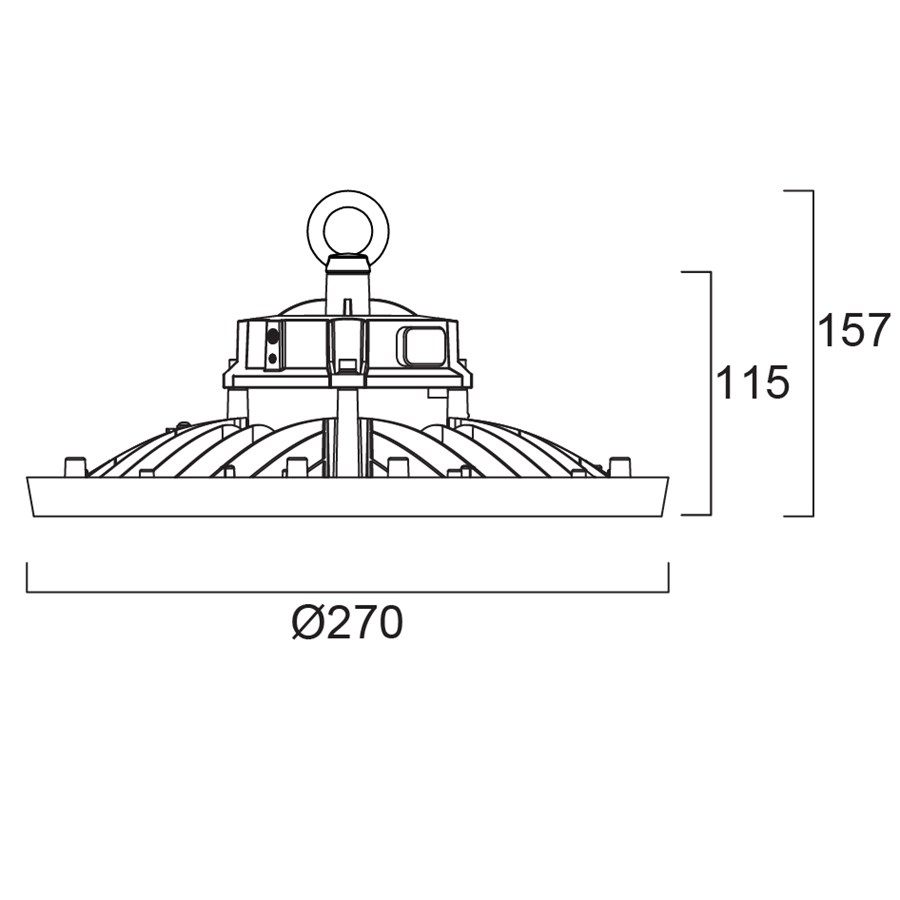

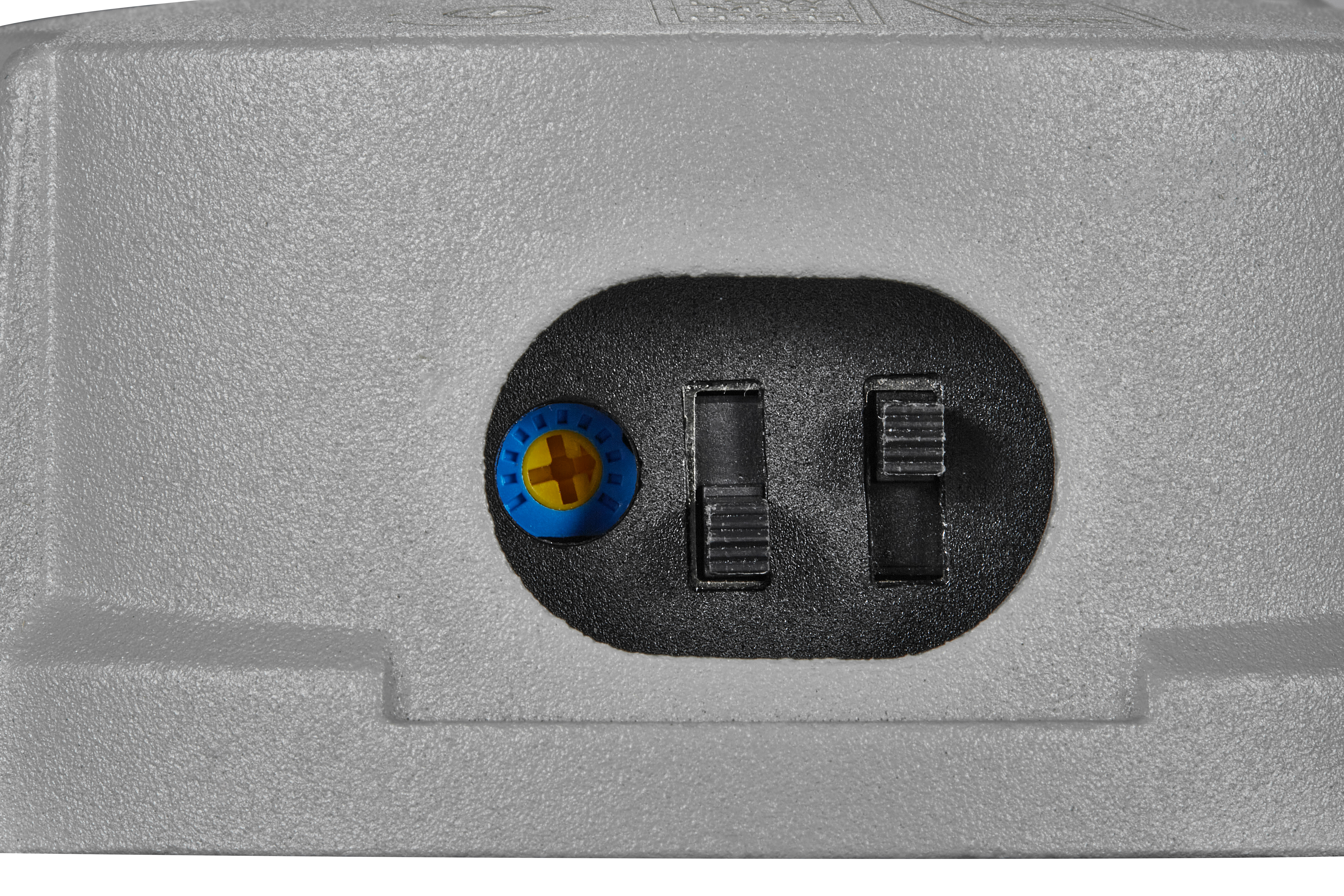

Integrated LED highbay, RAL9006 White aluminium housing, 11.100 / 15.700 / 19.800lm for 4000K or 10.900 / 15.600 / 19.500lm for 6500K, 72 / 110 / 150W depends on the settings of the integrated switch for changing the colour temperature (4000/6500K) and light output level, 132lm/W @ 150W 4000K setting, CRI 80; 110° beam angle, IP65, IK08, lifespan L70:B50 120.000 hrs; (D x H) 270 x 115 mm, D-mark.

Product overview
Product name START Highbay IP65 10000-20000lm 2CCT WB
Technology LED
Cap/Base N/A
Housing Aluminium
Mount Suspended
General application Logistics - Industry
ETIM Class EC001716
E-number FI 4357151
Useful luminous flux (Φuse) 19800
Fixture luminous flux (lm) 19800
Luminaire efficacy (lm/W) 132
Light colour Neutral White or Daylight
CRI (Ra) 80
Colour Variation Initial (SDCM) SDCM5
Beam Angle (°) 110
Photobiological Risk Group RG1
Total power consumption (W) 150
Electrical protection Class I
Control gear type LED driver constant current
Dimmable No
Dimming method N/A
LED Flickering Rate Low (6% - 20%)
Housing colour RAL 9006 - Aluminium
IP rating IP65
IK rating IK08
Product EAN number 5410288394435
Warranty 5 years
