+337

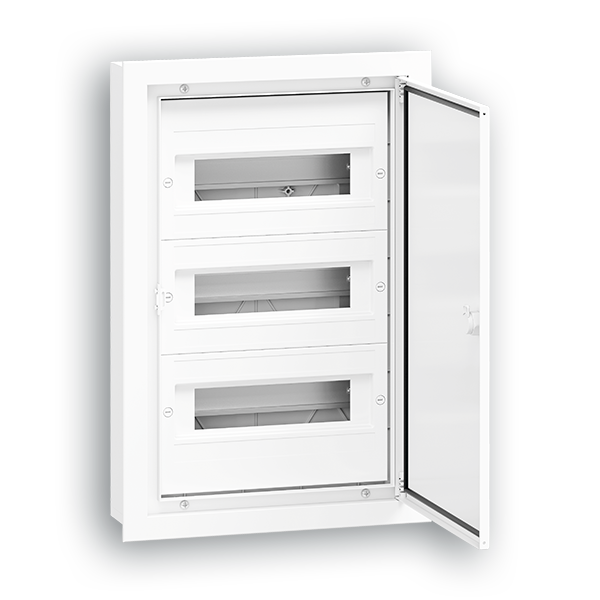

DISTRIBUTION ENCL (3x12) 36md D125 FM

Dimensions WxHxD (mm): 325x500x125
EAN: 5600307037904
Rows x Modules: 3x12
Application: Flush Mounted (FM)
No. Frames for DIN rail: 3
Locking System: 1 Curved cam plastic handle lock
Color: White - RAL 9010
Tariff Code: 85381000
Gross Weight (Kg): 3,8
Volume (m³): 0,03
Quantity per Pack: 1
Materials:
Enclosure: Plastic - PSHI
Frame and door: White lacquered aluminium
Chassis: Aluminium
BUSBARS: PA support and brass busbar
Protection and Security:
Insulation Class: Class II Insulation
IP Protection Degree: 54
IK Protection Degree: 07
GWT: 650°C
Static Load: 200kg/m³
Installation Temperature: Mín: -25ºC Máx: 55ºC
