+37215

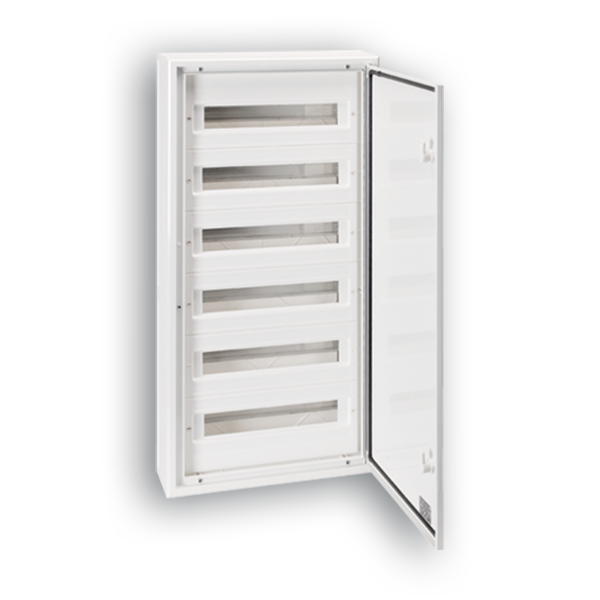

DISTRIBUTION ENCL (6x16) 96md D125 SM

Dimensions WxHxD (mm): 400x875x125
EAN: 5600307030707
Rows x Modules: 6x16
Application: Surface Mounted (SM)
No. Frames for DIN rail: 6
Locking System: 2 Flat plastic handle lock
Color: White - RAL 9010
Tariff Code: 85381000
Gross Weight (Kg): 12,5
Volume (m³): 0,061
Quantity per Pack: 1
Materials:
Enclosure: Plastic - PSHI
Frame and door: White lacquered aluminium
Chassis: Aluminium
BUSBARS: PA support and brass busbar
Protection and Security:
Insulation Class: Class II Insulation
IP Protection Degree: 54
IK Protection Degree: 09
GWT: 650°C
Static Load: 200kg/m³
Mechanical Reinforcement: Sim
Installation Temperature: Mín: -25ºC Máx: 55ºC
