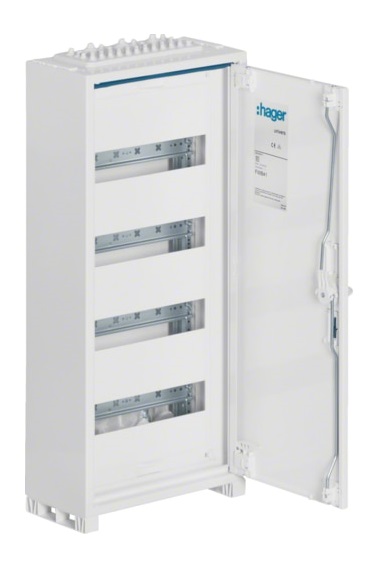

FWB encl.,univers,4rows 48 mod cl.II IP44,plain door,650x300x161mm,brass term.
FWB41

EAN
3250612735877
Packaging
1 Piece

Technical properties
Functions
With a pipe-in lead
Yes
Protection main switch
No
Configuration
Module
with terminals
Number of modules
48
Compatibility
Suitable for Multimedia
No
Electric current
Rated current
125 A
Dimensions
Insertion depth
161 mm
Depth of installed product
165 mm
Internal depth
156 mm
Height of installed product
650 mm
Installation height
650 mm
Width of installed product
300 mm
Width in division units
12
Thickness of sidewall material
1 mm
Cover, door
Type of door closing
hinged pattern handle
Number of keylock of the door
1
Cover type
With Notch
Door locking
without
Door leave
single
Cover type
Door
Transparent cover or door
No
Materials
Colour
white
Colour
white
RAL colour
RAL 9010 - Pure white
Type of surface treatment
powder-coated
Installation, mounting
Suitable for outdoor use
No
Connection
Number of conduit inlets
4
Settings
Enclosure type
Field distributor surface mounted
Equipment
Number of rows
4
Quantity of section in width
1
Number of keys
1
Quantity of rails
4
Can be accessorized
Yes
Number of openings for flange plates
2
Extension possible
Yes
Earthing terminal block
No
Neutral terminal block
Yes
Signal passing door
No
Standards
GWT Glow wire test
750 °C
Safety
IK protection code against mecanical impacts
IK09
Protection index IP
IP44
Protection class
isol.class II
REACH conform
No
RoHS conform
Yes
Halogen free
No
