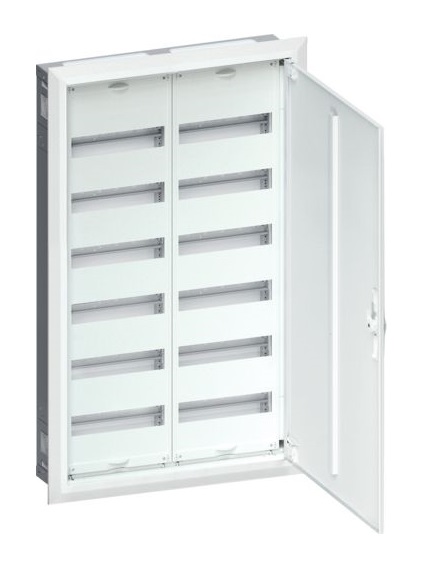

Technical properties
Connection
Number of conduit inlets
4
Installation, mounting
Suitable for outdoor usage
No
Mounting on
Flush mounting, Hollow wall
Electric current
Rated current
125 A
Equipment
Number of rails
12
Number of rows
6
Number of section in width
2
With lock
No
Has neutral terminal block
Yes
Has earthing terminal block
Yes
Has mounting plate
No
Capacity
Number of modules
144
Functions
Has protection main switch
No
With conduit inlets
Yes
Dimensions
Height
1,003 mm
Width
603 mm
Depth
125 mm
Built-in height
952 mm
Built-in width
560 mm
Built-in depth
112 mm
Number of width units
24
Cover, door
Number of cabinet doors
1
Type of handle
Hinged pattern handle
Door/cover is transparent
No
Connectivity
Mounting type
Screw mounting
Materials
Material
Steel
RAL code
9010
Colour
Pure white
Safety
Protection class
Isolation class II
Impact resistance IK
IK09
Ingress Protection (IP) class
IP30
Locking type
Without lock
Glow wire test
850 °C
