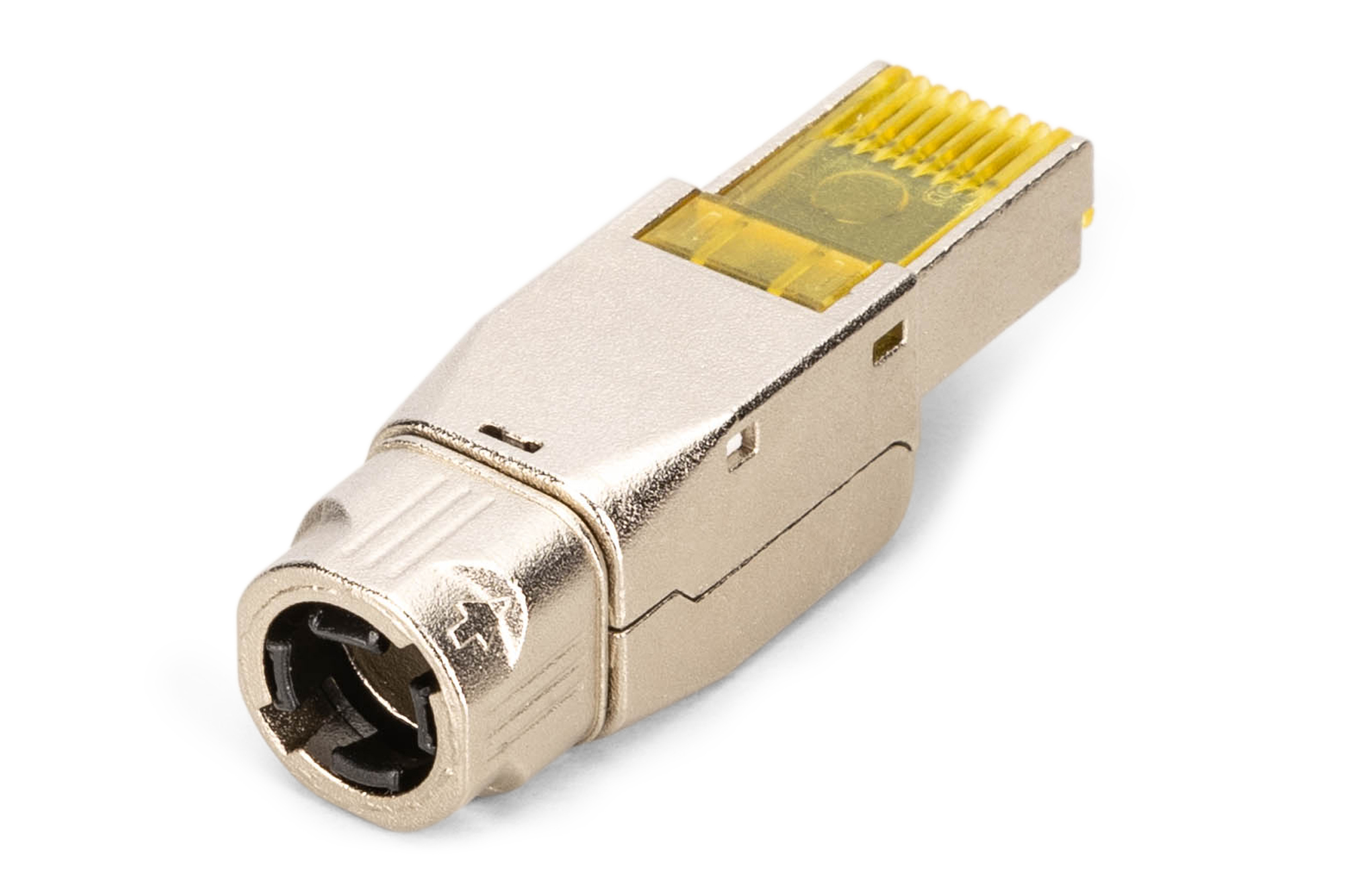

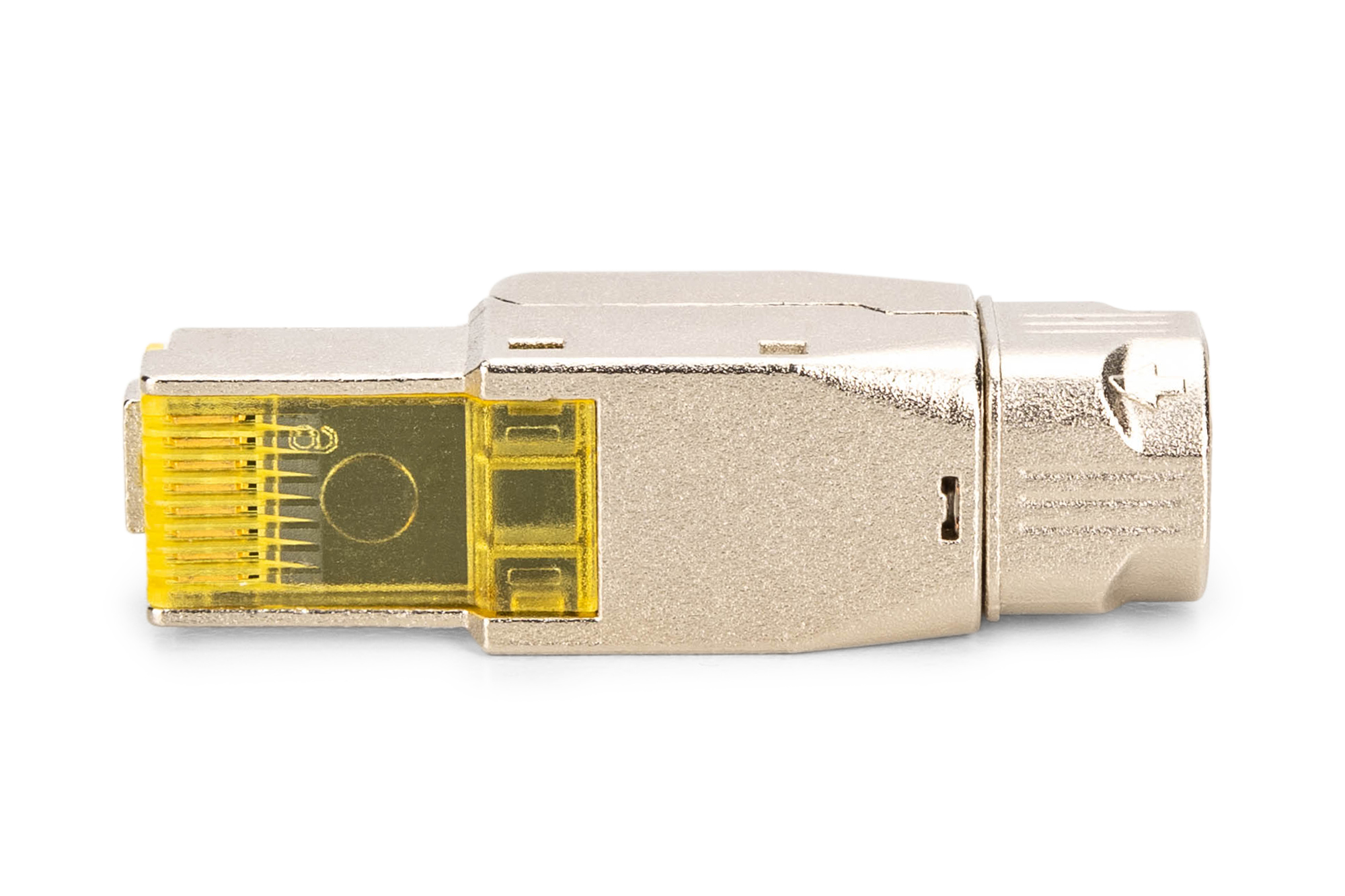

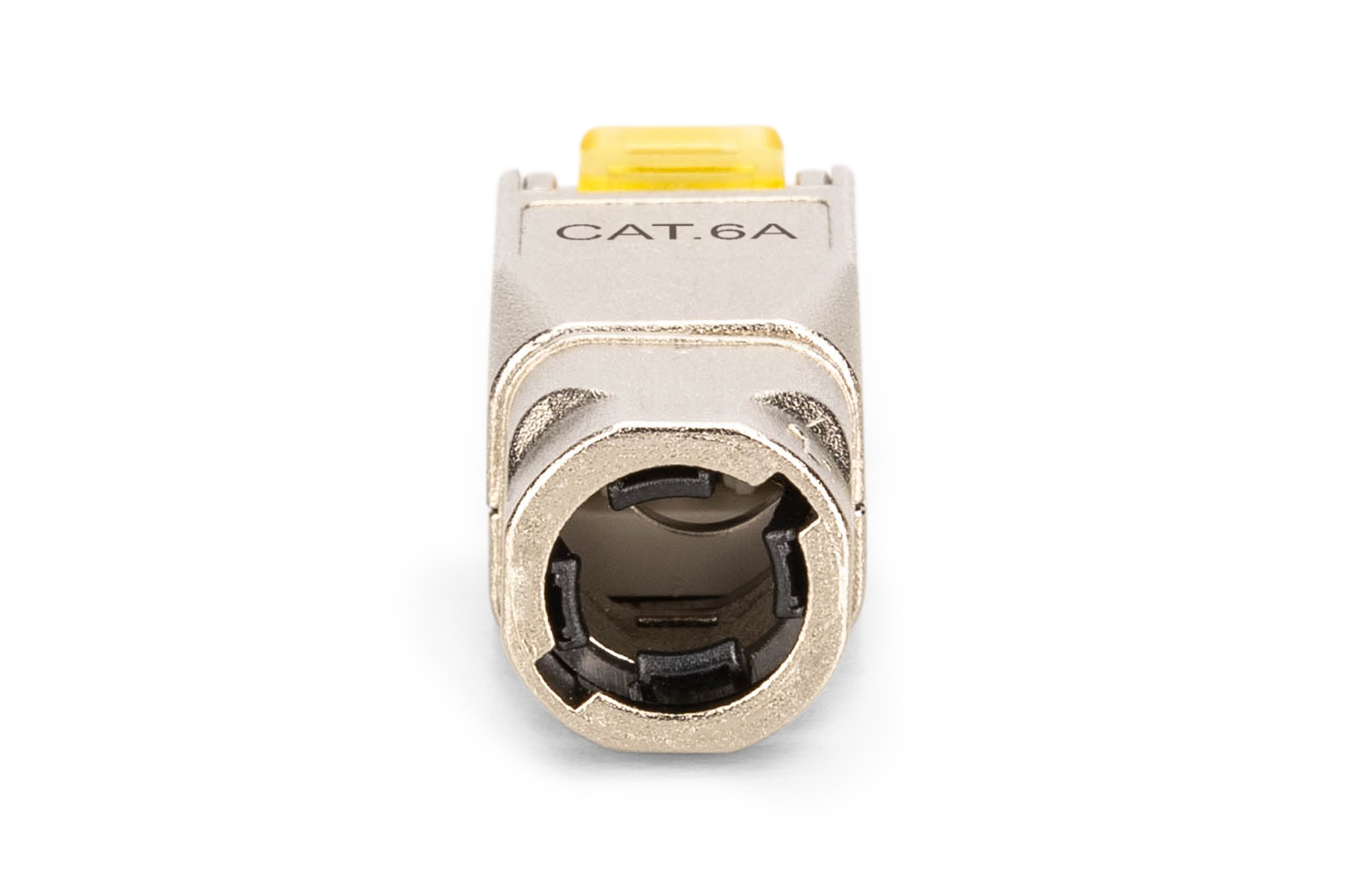

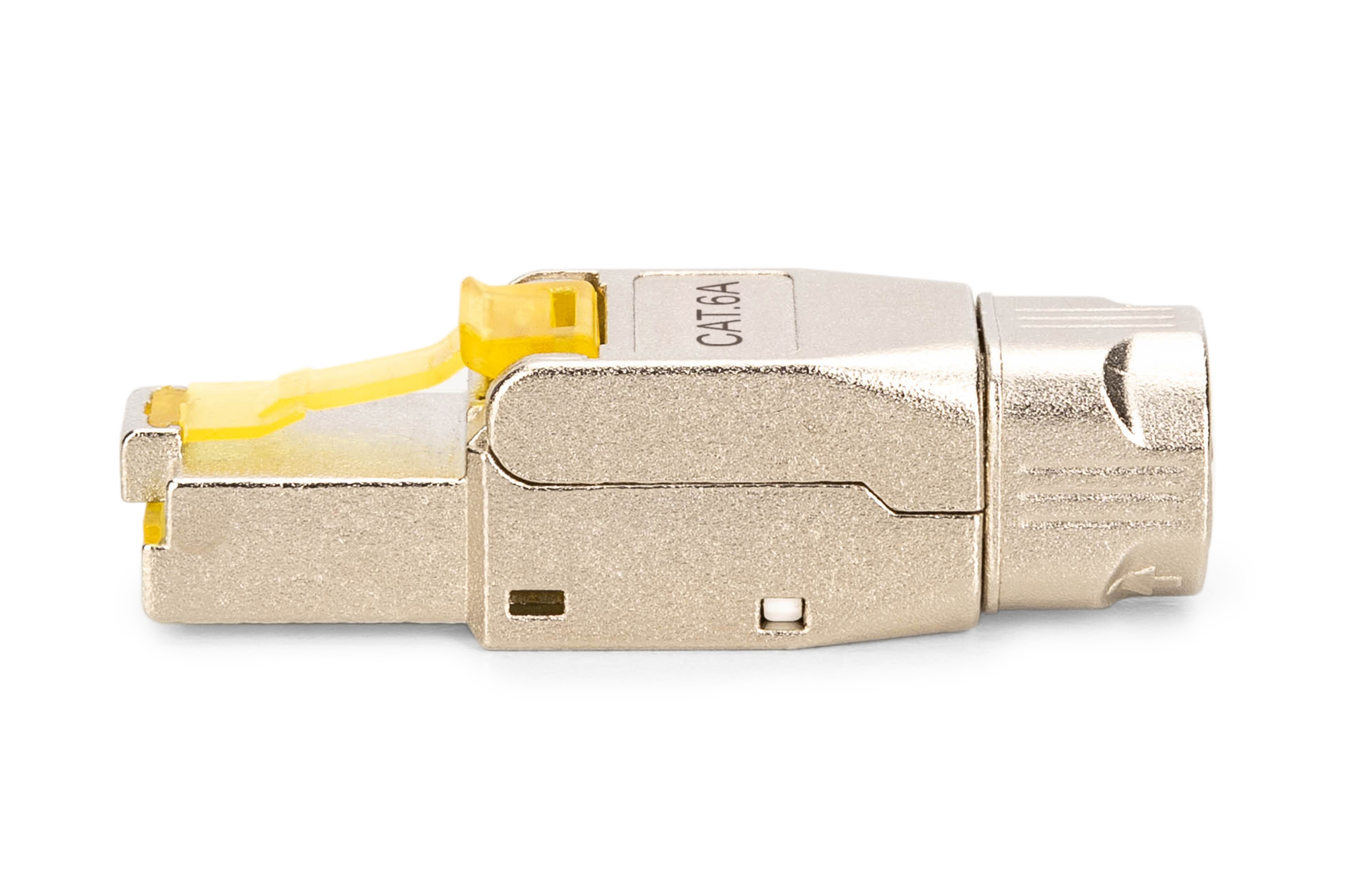

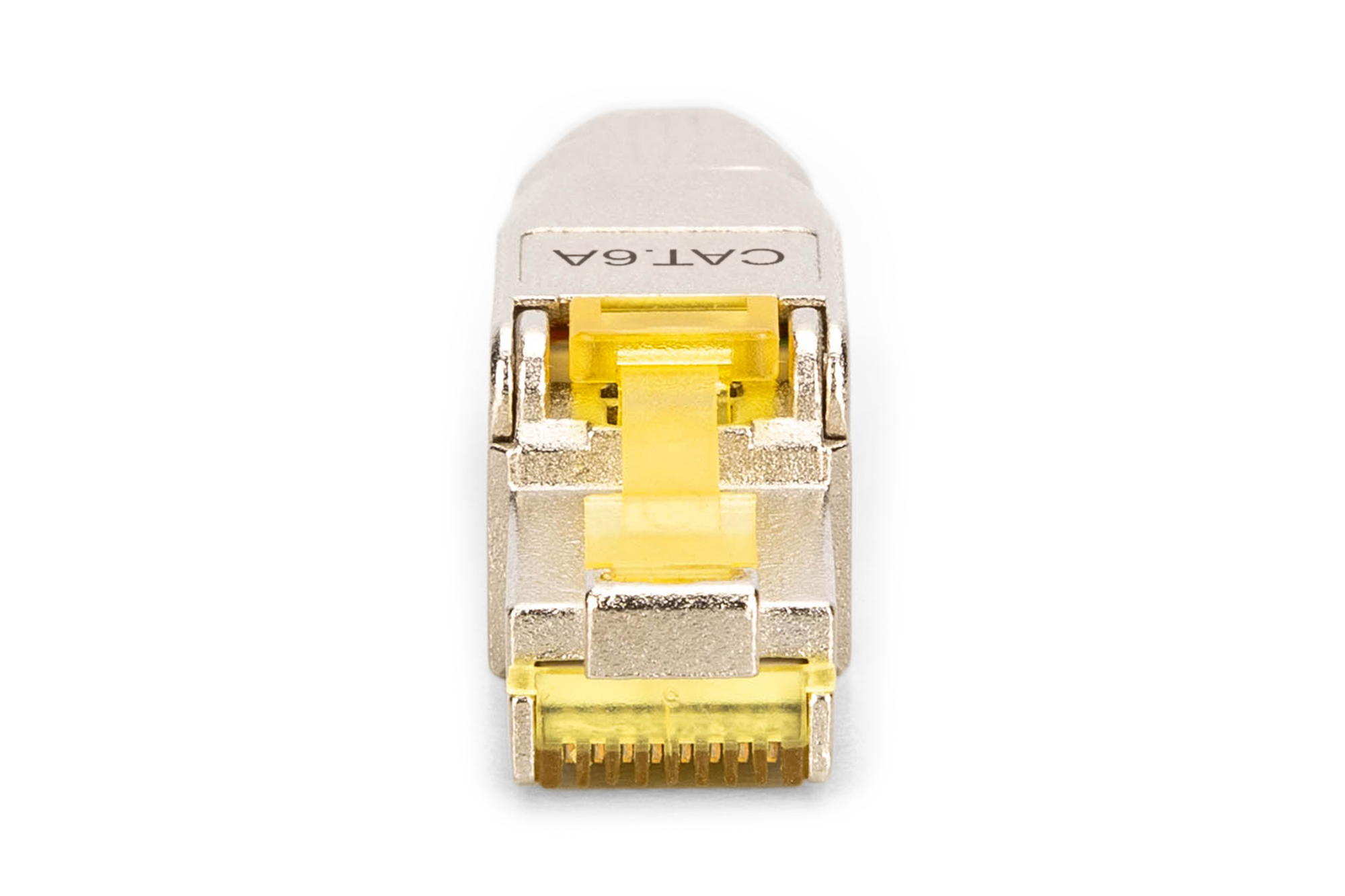

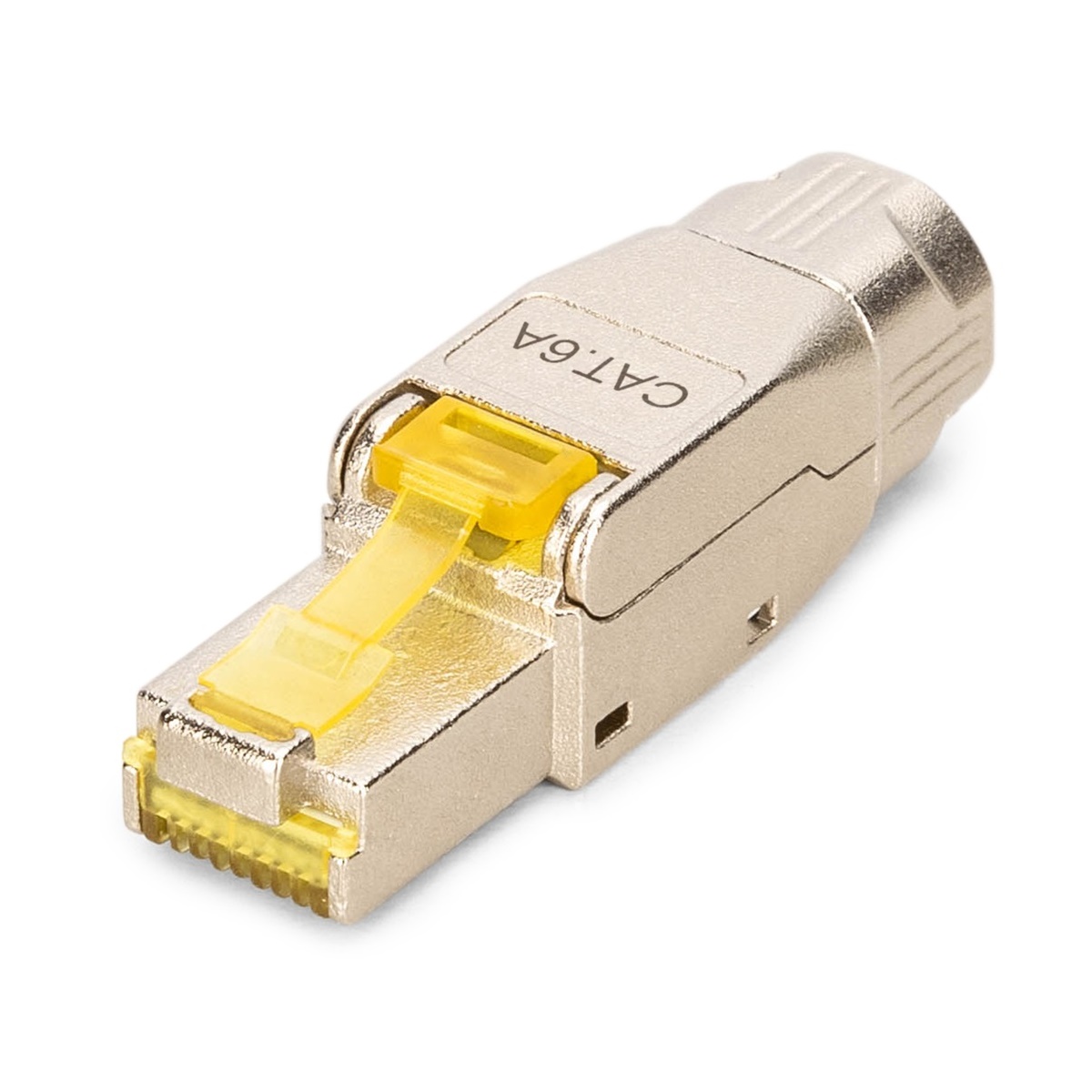

DIGITUS CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt
Product number: DN-93638
EAN: 4016032499367
CAT 6A tool-less connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt

Tool-free field assembly - easy with these shielded metal field connectors


High-performance data transmission - Supports transmission rates of up to 10 Gbit/s for maximum network performance
Optimal shielding - Shielded design reduces electromagnetic interference for stable signal quality
Tool-free installation - Innovative design enables quick and easy installation without special tools
Robust construction - Durable housing and high-quality materials ensure reliable performance, even in demanding environments

Description
The DIGITUS® CAT 6A connector for field assembly is a modern and high-quality RJ45 connector that is not only characterized by its super easy applicability, but is also reliable and time-saving for the field assembler in every application. The quick installation in just 60 seconds without any special tools, as well as the enormous flexibility, makes it the perfect choice for all locations. It is suitable for all networks, from voice to 10 Gigabit Ethernet. Satisfied customers thanks to fast and cost-saving installation, repair and maintenance are the logical consequence of this innovative RJ45 connector.

Technical details
Transmission properties:
Category 6A, 10GBase-T, 500 MHz
ISO/IEC 11801 3rd Ed., EN 50173-1, IEC 60603-7-51
Suitable for PoE/PoE/4PPoE (IEEE 802.3af, 3at, 3b)
General properties:

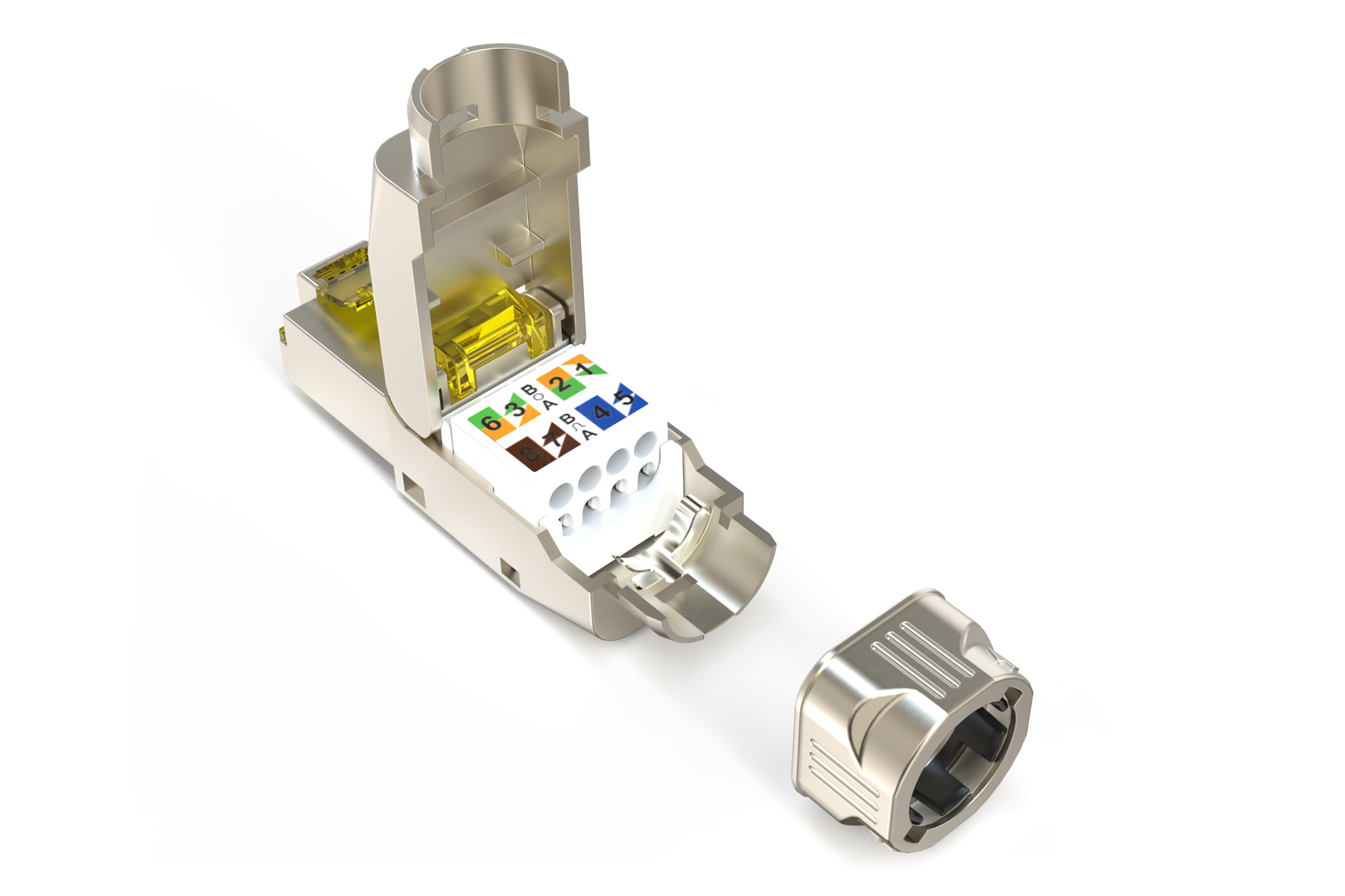

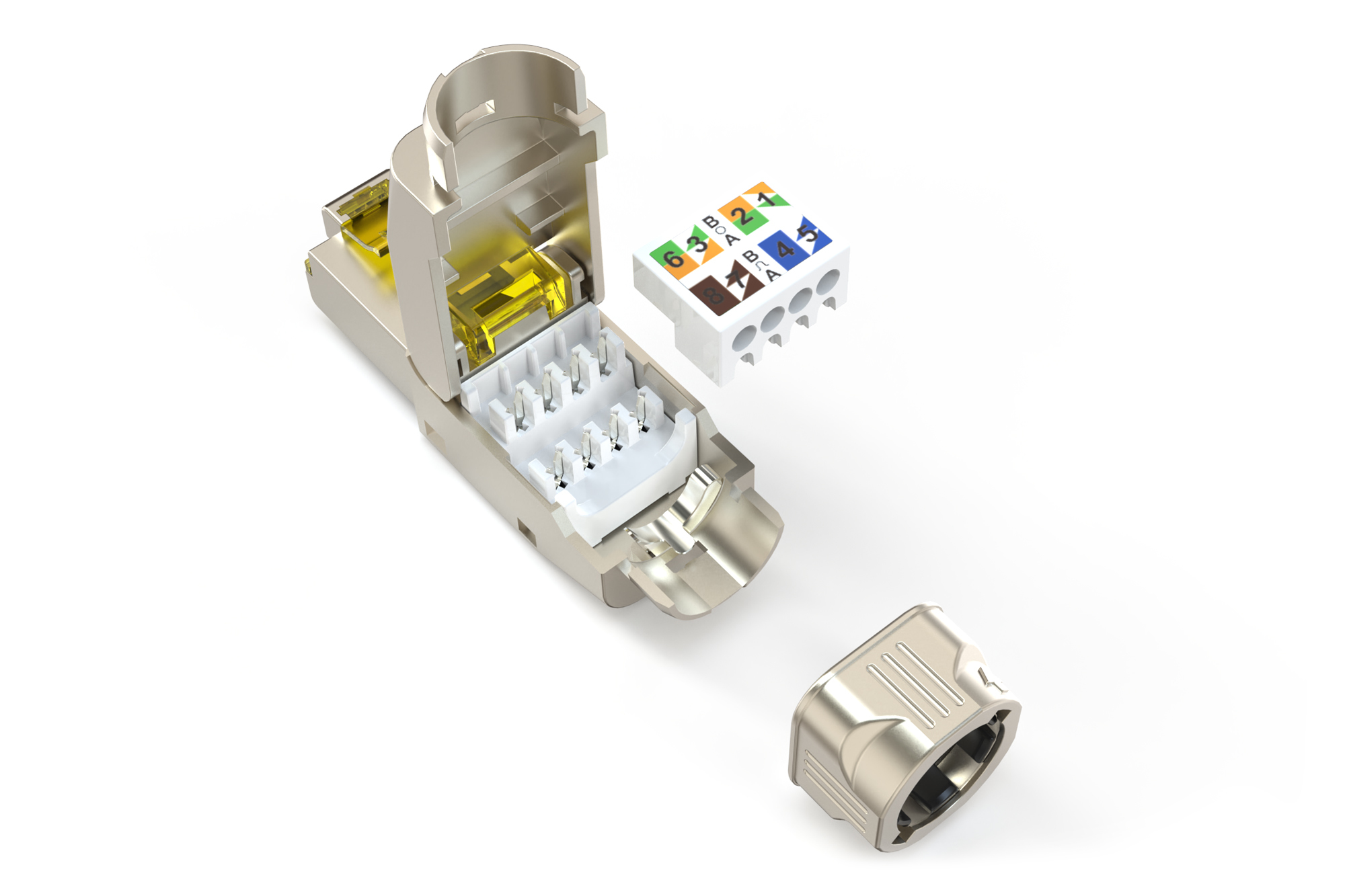

Cable installation via IDC strips, color coded according to EIA/TIA 568 A - B
Cable fixation by screwable strain relief
RJ45 Plug, 8P8C
Tool-free mounting connection
360° shield coverage
Technical properties:
Housing material: Zinc die-cast
Contact material: Phosphor bronze
Coating of the contacts: Nickel, gold-plated 0.5 µ
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Operation temperature: -20°C bis zu +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles female: - 1500 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: AWG (27/7 - 22/1), solid and stranded conductor
Tested with AWG 22/1 solid conductor
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
