Field Distribution Panels (Box Panels)

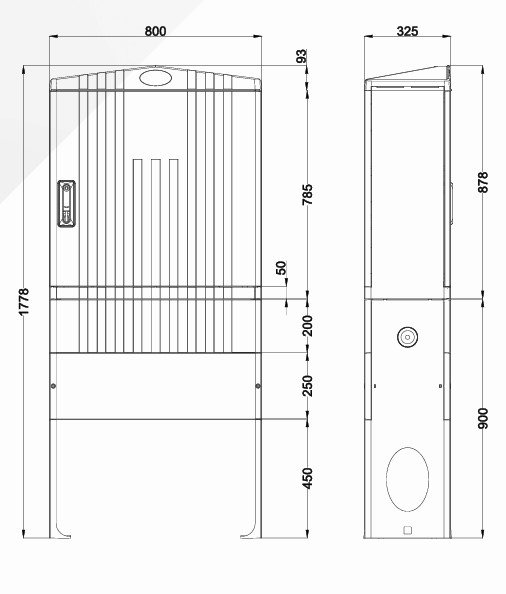

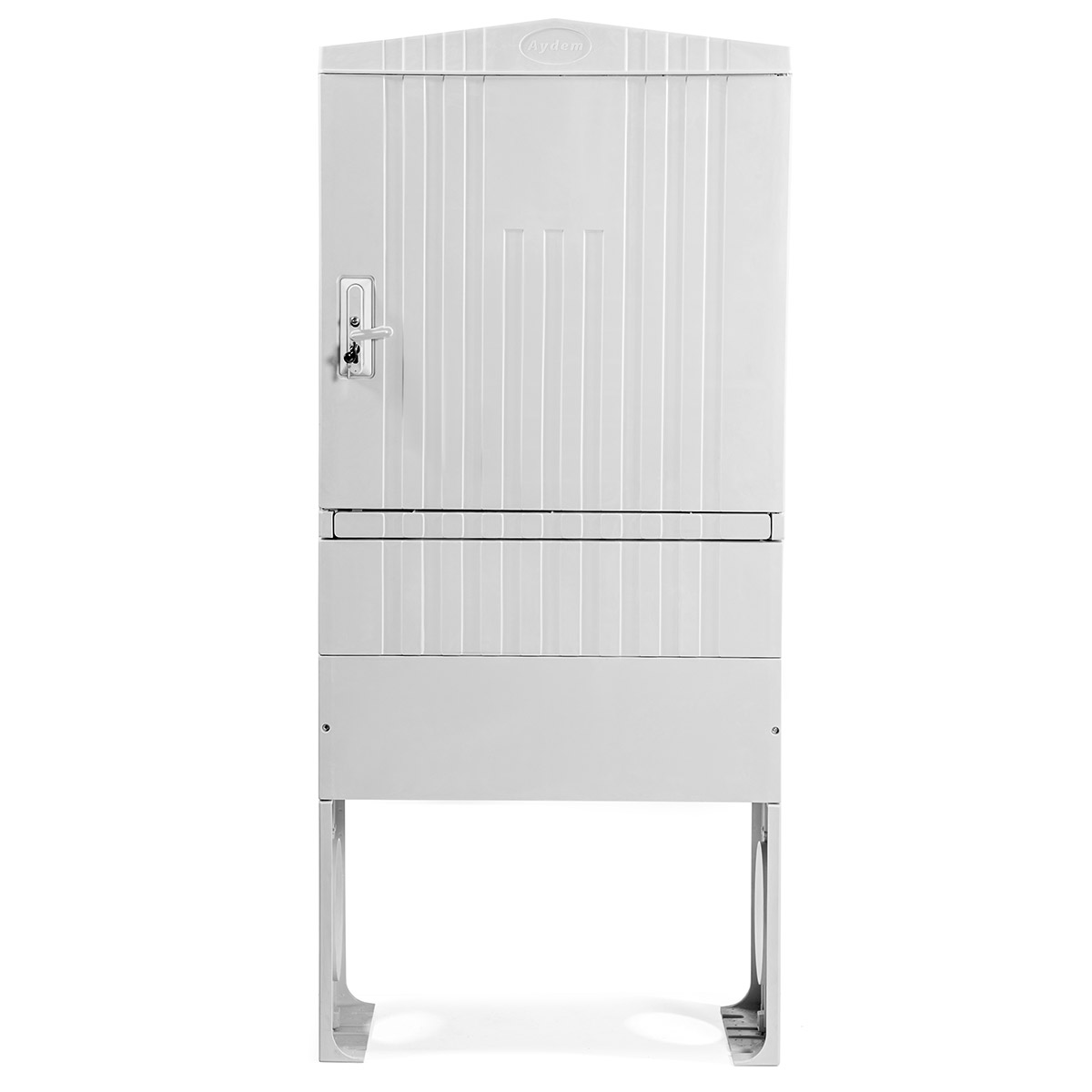

Type B - Field Distribution Panel Empty 800x1770x325mm

Raw Material: Glass Reinforced Polyester
Quality Standart: EN61439, EN60670-1, EN 62208
Color: RAL 7035 (There are color options)
Operating Temperature: -40°C +70°C
Door Opening Angle: 180
Hinge: 3 Pieces
Lock: 1 Piece - 3 Point Lock
Lock Options: Ispanyolet
Protection Class: IP54
Fire Resistance: B2 (Can change to A1, A2, B1, V0)
UV Resistance: Yes
Humidity Resistance: Yes
Chemical Resistance: Full Protection Against Acid and Base
Corrosion Resistance: High Resistance Against Adverse Weather Conditions
Grounding Class: Class II

Field Distribution Panels (Box Panels) |  General features:

Stainless, not scratched, paint does not require care.
It does not transmit electricity, it is insulating.
The flame does not advance and it goes out spontaneously.
Rutbet does not contain moisture.
It is resistant to atmospheric conditions.
Logo can be done as desired.

Field Distribution Panels (Box Panels) |  Application Areas:

Transformer force panels
Compensation panels
Distribution Panels
Grid generator
Transfer applications
Automation Panels
Control Panels
Lighting Panels
OSOS Panels
Counter panels
