Description

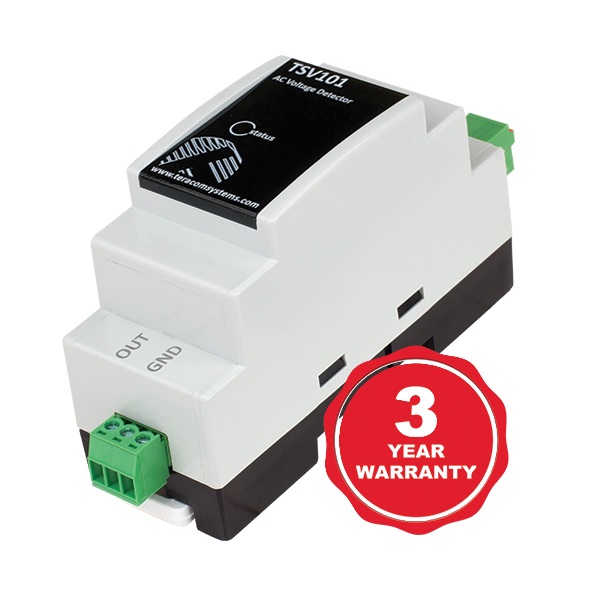

he TSV101 is a high-reliability AC voltage detector with an optoisolated open collector output. It operates in two selectable voltage ranges: 85-250 VAC and 170-250 VAC, which can be set via an internal jumper.
Designed for durability, the TSV101 is built entirely with electronic components, eliminating mechanical or electromechanical parts. Its galvanically isolated output uses a photocoupler, ensuring safe and reliable signal transmission. The device is self-powered, drawing energy directly from the monitored voltage.
The TSV101 detects line voltage presence or absence in UPS systems, power supplies, electrical sources, and power lines. Its DIN rail mountable design allows for quick and secure installation in industrial environments.
The detector’s output can be connected to Teracom’s TCW1xx, TCW2xx, and TCG1xx controllers, as well as third-party controllers. The only requirement is that the digital input operates in “dry contact” mode, ensuring seamless integration into monitoring and control systems.
Features
Galvanic isolation between the AC line and the digital output for enhanced safety;
Two selectable AC voltage detection levels, adjustable via an internal jumper;
Compatible with both 115V and 230V AC networks for versatile applications;
IP30 ingress protection, ensuring durability in industrial environments;
Low-temperature drift, maintaining reliable performance across varying conditions;
Self-powered design, operating directly from the monitored voltage.
Applications
AC power failure alerts for alarm and notification systems;
Monitoring AC voltage at the input of UPS (Uninterruptible Power Supply) systems;
Industrial automation and process control applications;
Smart energy management during battery-powered operation.
The detector can be used with
Ethernet IO module TCW241
Ethernet data logger TCW220
Remote IO module TCW122B-CM
4G LTE wireless I/O module TCG120-4
Industrial IoT module TCW242
Energy monitoring module TCW260
Ethernet digital IO module TCW181B-CM
4G LTE universal IO module TCG140-4
