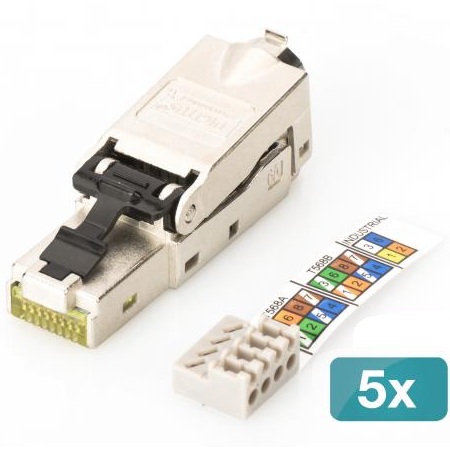

DIGITUS CAT 6A Field Termination Plug, STP with dust cap, bend relief
Product number: DN-93631
EAN: 4016032392231
CAT 6A Field Termination Plug, STP, dust cap, bend relief

Description
The DIGITUS® CAT 6A RJ45-plug for field assembling is a modern and high quality plug, characterized not only by the simple application, but standing the field assembler every time reliably and quickly at his side. The rapid assembly in only 60 seconds without special tools, as well as the high flexibility, makes it to the perfect choice at any locations. It is suitable for all networks of voice up to 10 Gigabit Ethernet. Satisfied customers, because of fast and cost-saving installation, repairs and maintenance, are the logical consequence of this innovative RJ45 plug. Why complicate things when it can be so easy? See for yourself!

Technical details
Preassembled protection cap
Robust zinc diecast housing
360° cable screen connection for enhanced EMI protection
Can be assembled in 60 seconds without any special tools
Optimised for the field, including demanding applications
Secure transmission even with outside interference
Ideal for network repairs, special length and extensions
Cross sections AWG 27/7-22/7, AWG 24/1-22/1
Insulation: 0.85 - 1.6 mm
Cable diameter: 5.0-9.0 mm
Dimensions (W x H x D): 12.5 x 13.0 x 45.0 mm
Weight: 78 g
--Climatic Characteristics:
Operating temperature: -40 °C to +80 °C
--Electrical Characteristics:
Current carrying capacity at 50°C: 1 A
PoE+ acc to IEEE 802.3at: Adequate for Power over Ethernet+
--Standards:
Gigabit Ethernet acc. to IEEE 802.3
10 Gigabit Ethernet acc. to IEEE 802.3an: Adequate for 10 Gigabit Ethernet

Package content
1x plug with dust cap
1x sleeve with kink protection and strain relieve
1x wire manager with wiring instruction
1x cable tie
1x mounting instruction
