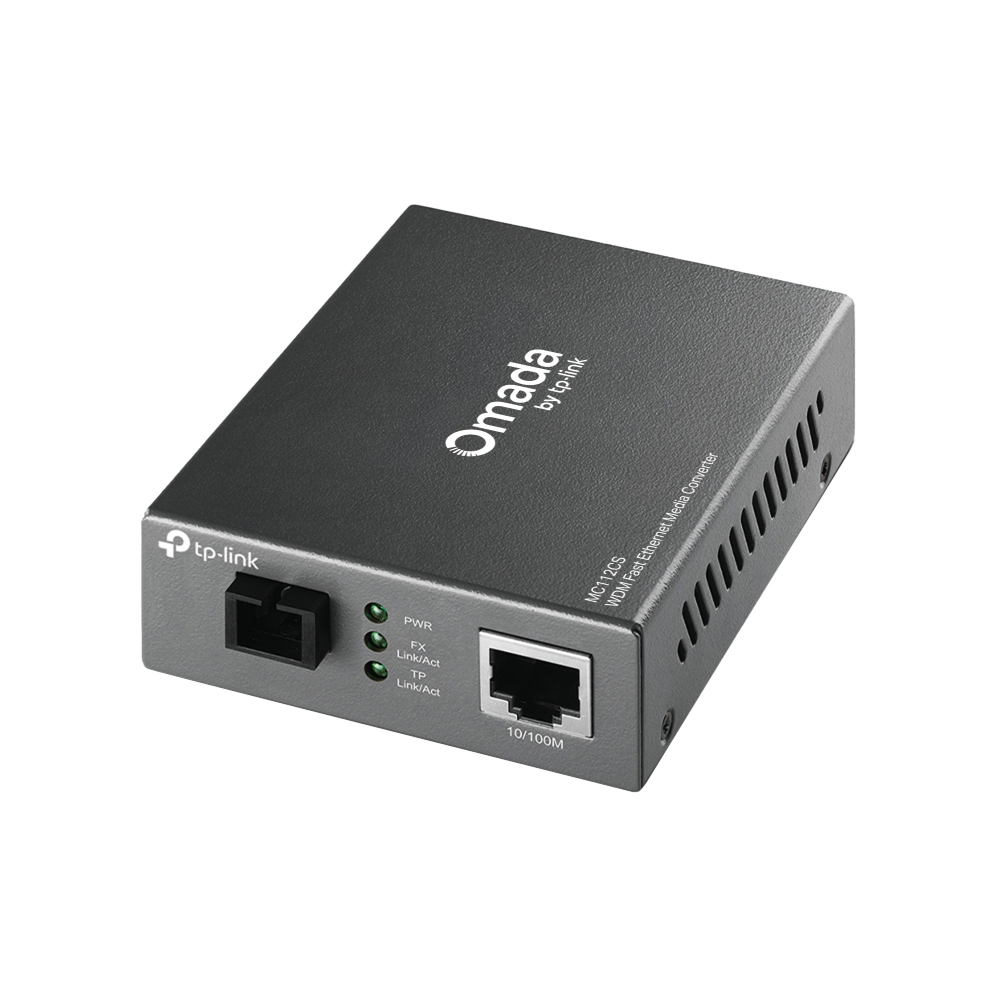

MC112CS
Omada 10/100Mbps WDM Media Converter
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km

MEDIA CONVERTER - MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u
Basic Function • Adopts WDM technology
• Half/Full-Duplex transfer mode for FX port
• Extends fiber distance up to 20km
Interface • 1× 100M SC/UPC port
• 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm Tx/1550nm Rx
WDM TX 1310nm
WDM RX 1550nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
Dimensions ( W x D x H ) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max. Power Consumption 1.18W
LED PWR, Link/Act
Safety - Emission FCC, CE, RoHS
Package Content • MC112CS
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
