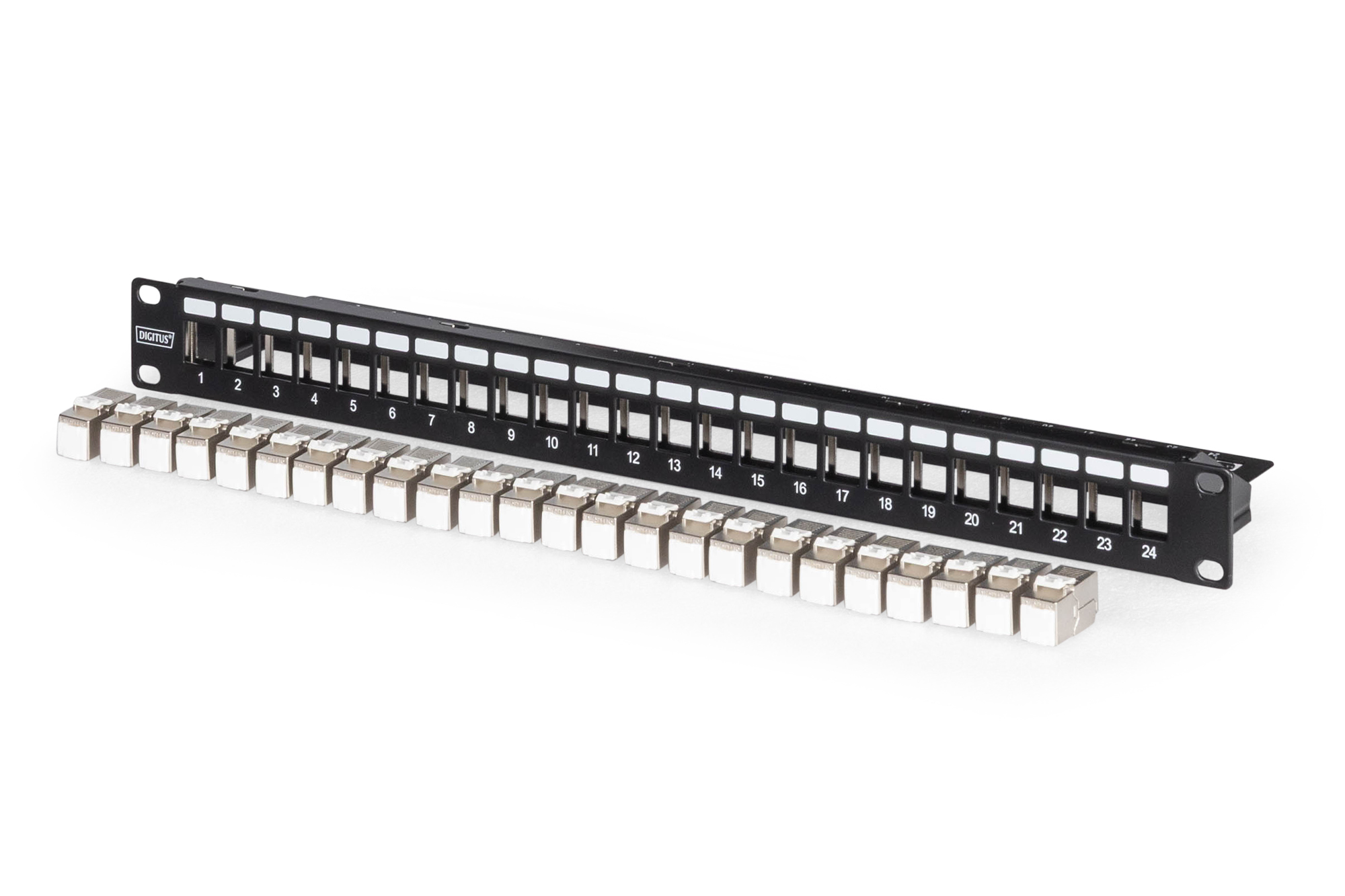

DIGITUS Modular patch panel, 24-port equipped with 24x DN-93615
Product number: DN-91411-24
EAN: 4016032505723
Modular Patch Panel, shielded w. 24x DN-93615 24-port,1U, rack mount, label field, black


All-in-one convenience - Simplifies purchasing and inventory by combining patch panel and keystones in a single, ready-to-install package.
Time-saving installation - pre-matched components eliminate compatibility problems and speed up commissioning
Professional presentation - Supplied as a neatly packaged combo pack, ideal for installers and projects that require a quick and clean implementation
More value for less - The complete solution is cheaper than buying patch panels and keystones individually.
Optimized project planning - One article number, one delivery and complete operational readiness reduce the logistical complexity of larger rollouts.

Description
The DIGITUS Modular Patch Panel, 24-port, is a robust, rack-mountable 19-inch panel with 24 CAT 6A Keystone modules (DN-93615) - ready for immediate, fast and efficient installation. It offers easy management and enables flexible network configurations thanks to its modular design. With fully matched CAT 6A Keystone modules included, there is no need for separate procurement or compatibility checks. An integrated cable management strip ensures order and stability, while the earthing connection provides additional safety. This complete solution optimizes rack space, reduces installation time and simplifies project planning - ideal for professional installers and demanding IT environments.

Technical details
Keystone mount version: Straight
Application areas: 483 mm (19-) distribution cabinet
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19-) rack mounting
Suitable for shielded Digitus® Keystone modules and connectors
Central earthing connection
Technical features:
Housing material: 1.5 mm SPCC cold-rolled sheet steel, powder-coated
Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
Material earthing bar: galvanized steel
Physical properties:
Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Color: Black RAL9005
equipped with 24 DN-93615 Keystone modules
Attributes
Color: black, RAL 9005
Ports: 24
Units: 1
Category: CAT 6A
