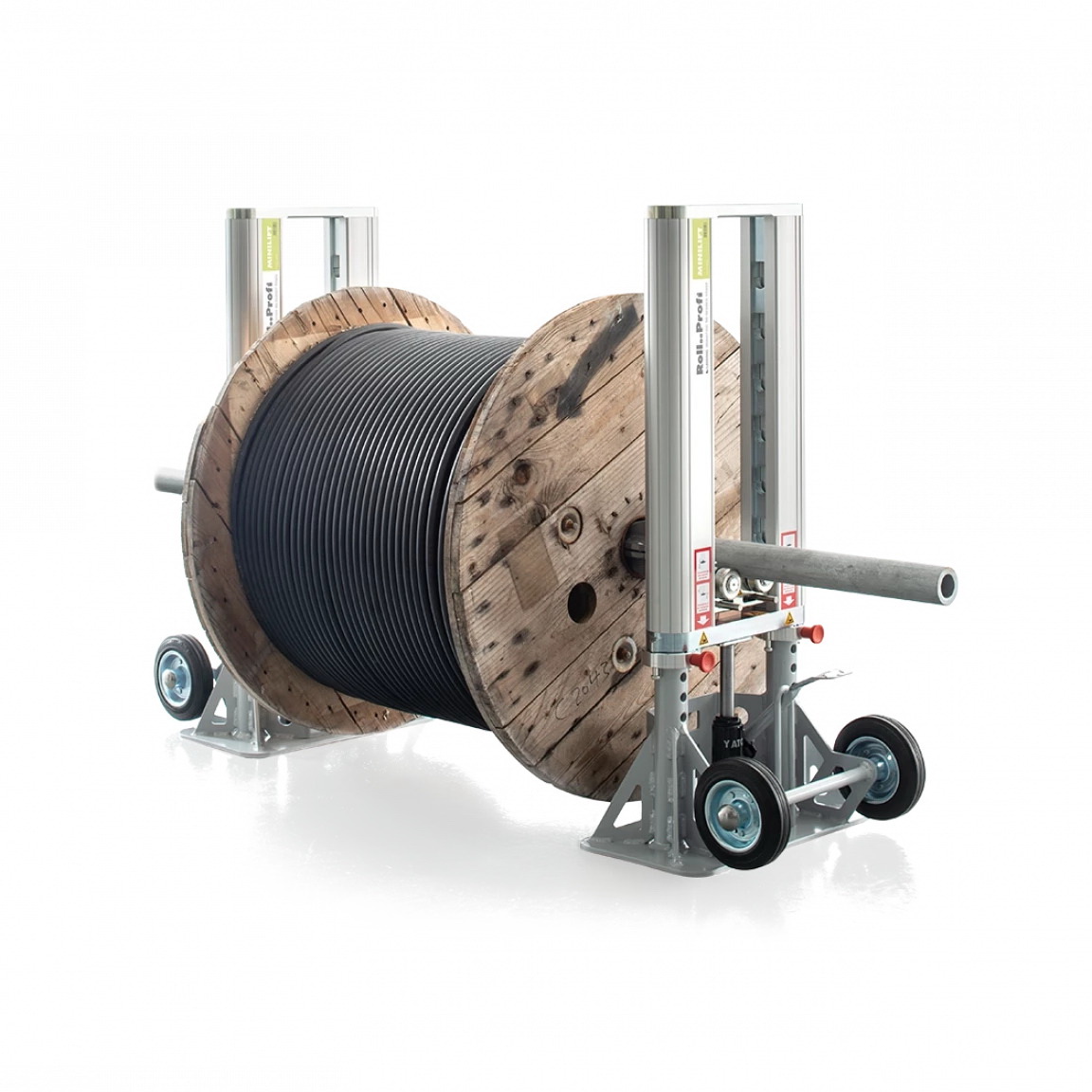

The MINILIFT is tried and tested for use on construction sites. Built for maximum stability with solid steel frame and designed for optimal use with wheels, it ensures rational handling of all large cable drums up to a weight of 4 t. The all-metal design ensures maximum durability whilst the innovative technology of the system provides for maximum functionality. This system is completely maintenance-free – also with outdoor use. With the MINILIFT and the JUMBOLIFT we extend the product range of the cable drum lifter further in the new generation of cable lifters. With the MINILIFT large and heavy drums up to a weight of 4 t can be uncoiled with ease. The light aluminium construction coupled with the innovative technology of the system enables flexible and safe unwinding on the construction site or in the cable warehouse.

TECHNICAL DATA
Max. load-bearing capacity
4.000 kg
Max. cable reel
1.600 mm
Max. cable drum
650 mm
Dimensions (H x D x W)
863 x 358 x 450 mm
Length of the drum axle
1.500 mm
Max. wheel width
1.000 mm
Weight per element
40 kg
