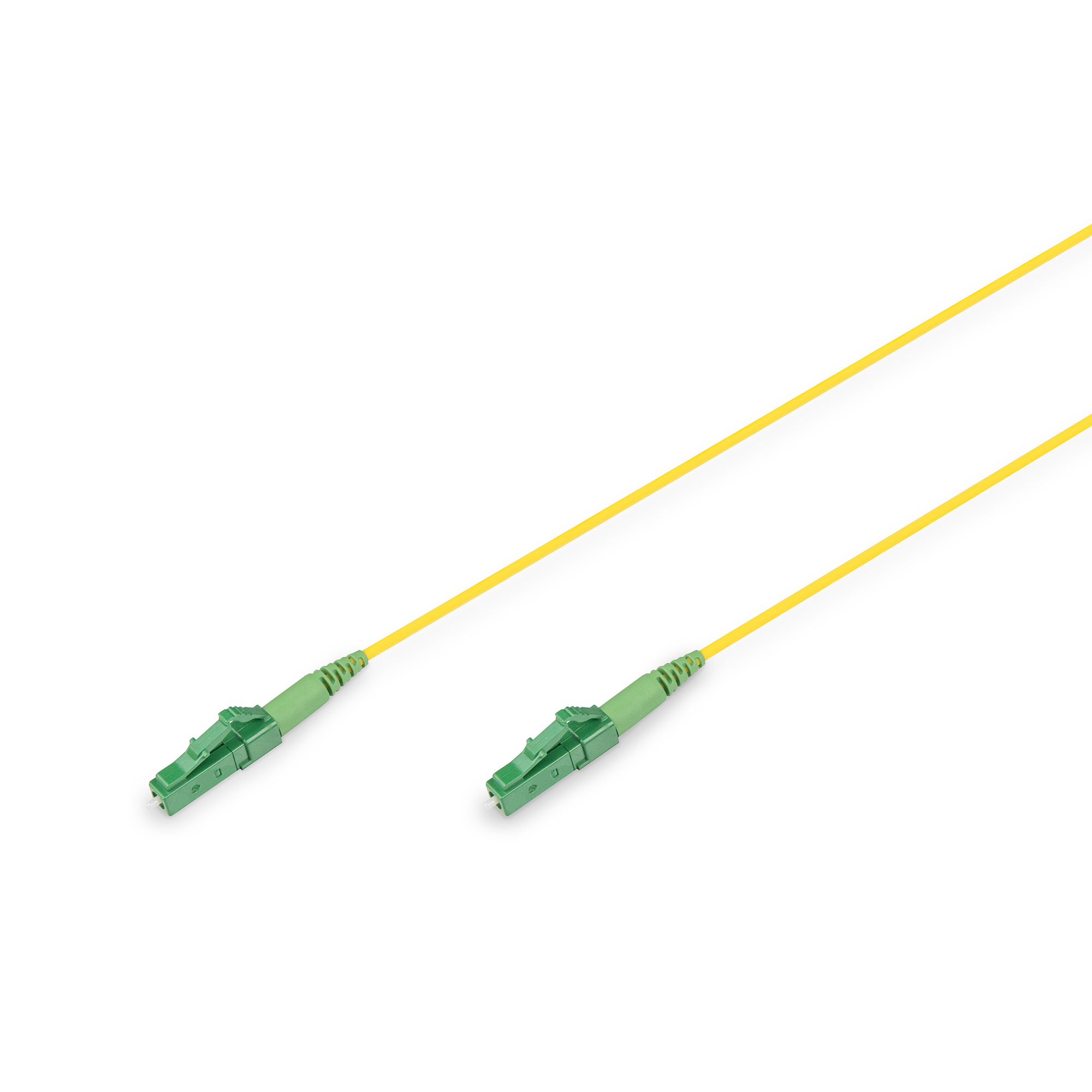

DIGITUS Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 15 m
Product number: DK-2933-15-APC-SX
EAN: 4016032496649
FO patch cord, SM, Simplex, LC/APC to LC/APC G657.A02, 15m
High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.
High flexibility
Bend insensitive
High precision and low insertion loss
Compliant with G.657.A2
DESCRIPTION
The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.
TECHNICAL DETAILS
Fiber type : Singlemode 9/125
Category : G657A2
Cable length : 15 m
Number of fibers: 1
Cable structure : Simplex
Connector 1 type : LC/APC
Connector 2 type : LC/APC
Maximum tractive force : 100 N
Cable type : I-V(ZN) H
Cable Ø : 2.0 mm
Minimum Bend Radius : 7.5 mm
Sheath color : Yellow
Jacket material : LSZH
Insertion loss 1310 nm : 0.3 dB
Working temperature : -20 - 70 °C
ATTRIBUTES
Application: indoor
Boot: single-color
Cable diameter: 2 mm
Cable jacket: LSOH
Color cable: yellow
Connector 1: LC (APC)
Connector 2: LC (APC)
Fiber class: OS2
Fiber diameter: 9/125µ
Mode: Singlemode
Number of connectors side 1: 1
Number of connectors side 2: 1
Number of fibers: 1
Polishing: APC
Length: 15 m
PACKAGE CONTENT
1 x Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 15 m
